Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Camshaft Position Sensor
>>
Removal And Installation < 2.4L Engine>
Removal And Installation < 2.4L Engine>

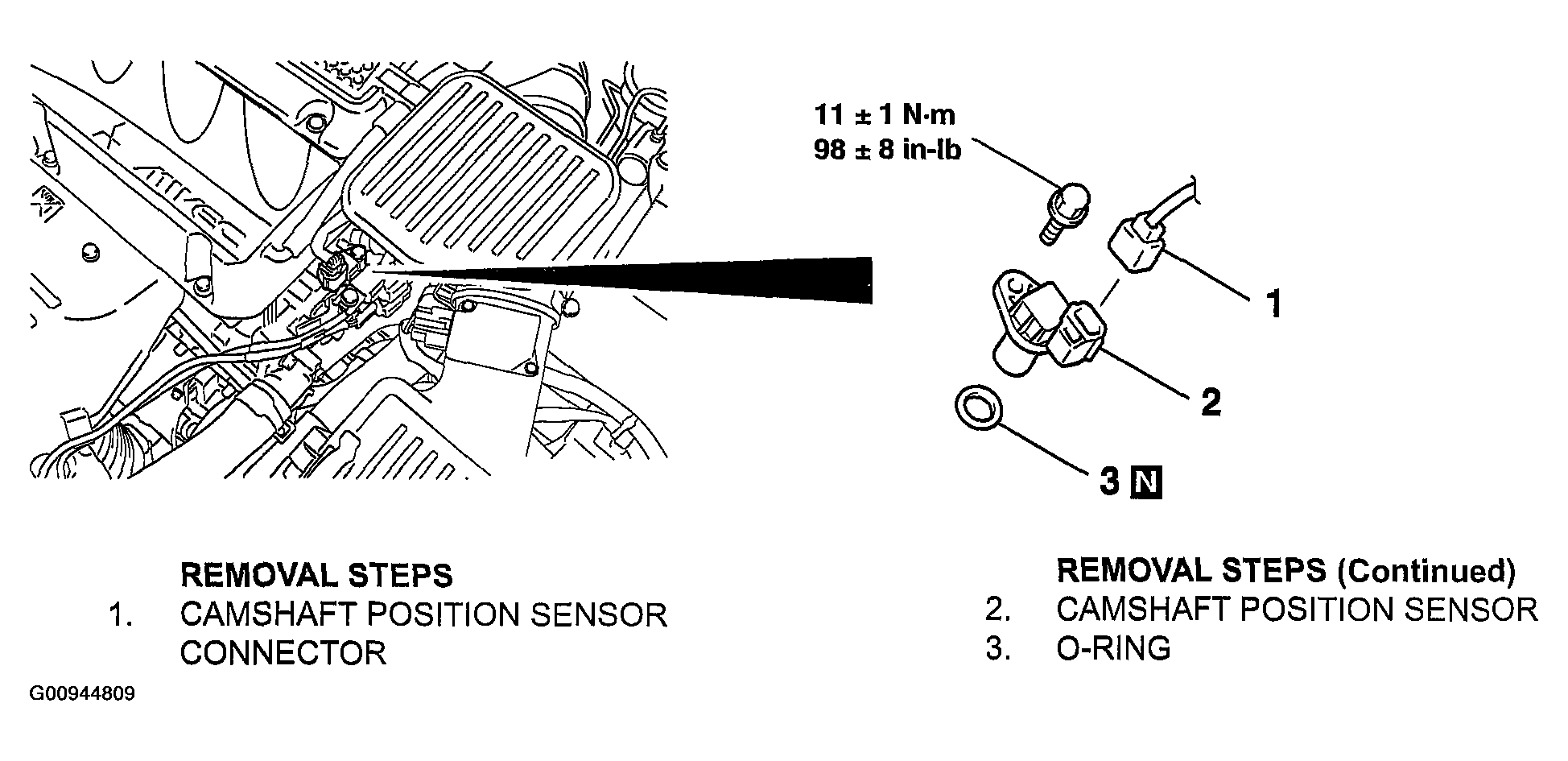

Fig 1: Removing And Installing Camshaft Position Sensor (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
