Removal And Installation < 3.8L Engine >: Notes

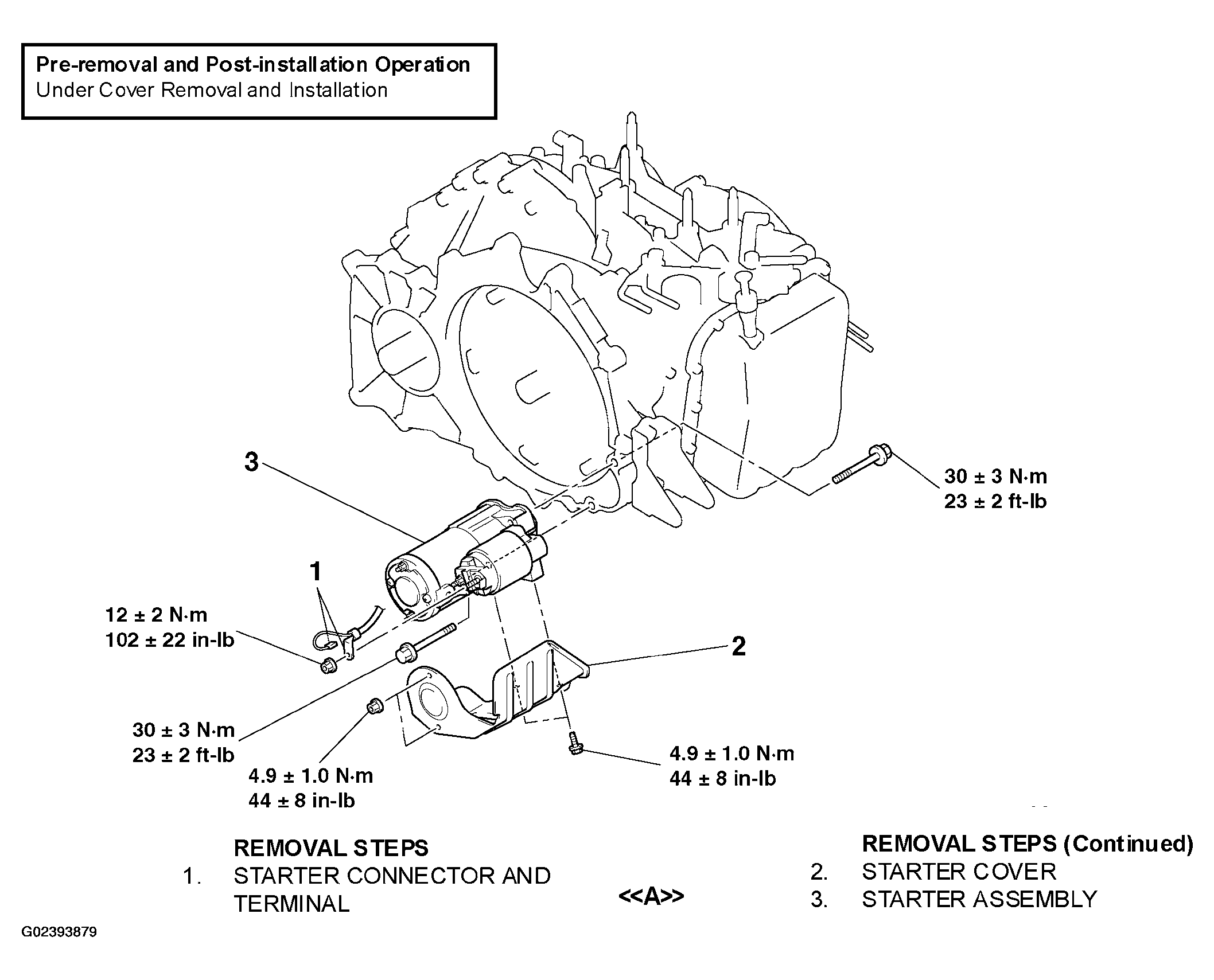

Fig 1: Removing And Installing Starter Motor Assembly (3.8L Engine)

G02393879

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
