Combination Meter Assembly & Vehicle Speed Sensor
>>
Combination Meter Assembly And Vehicle Speed Sensor
>>
Removal And Installation
Removal And Installation

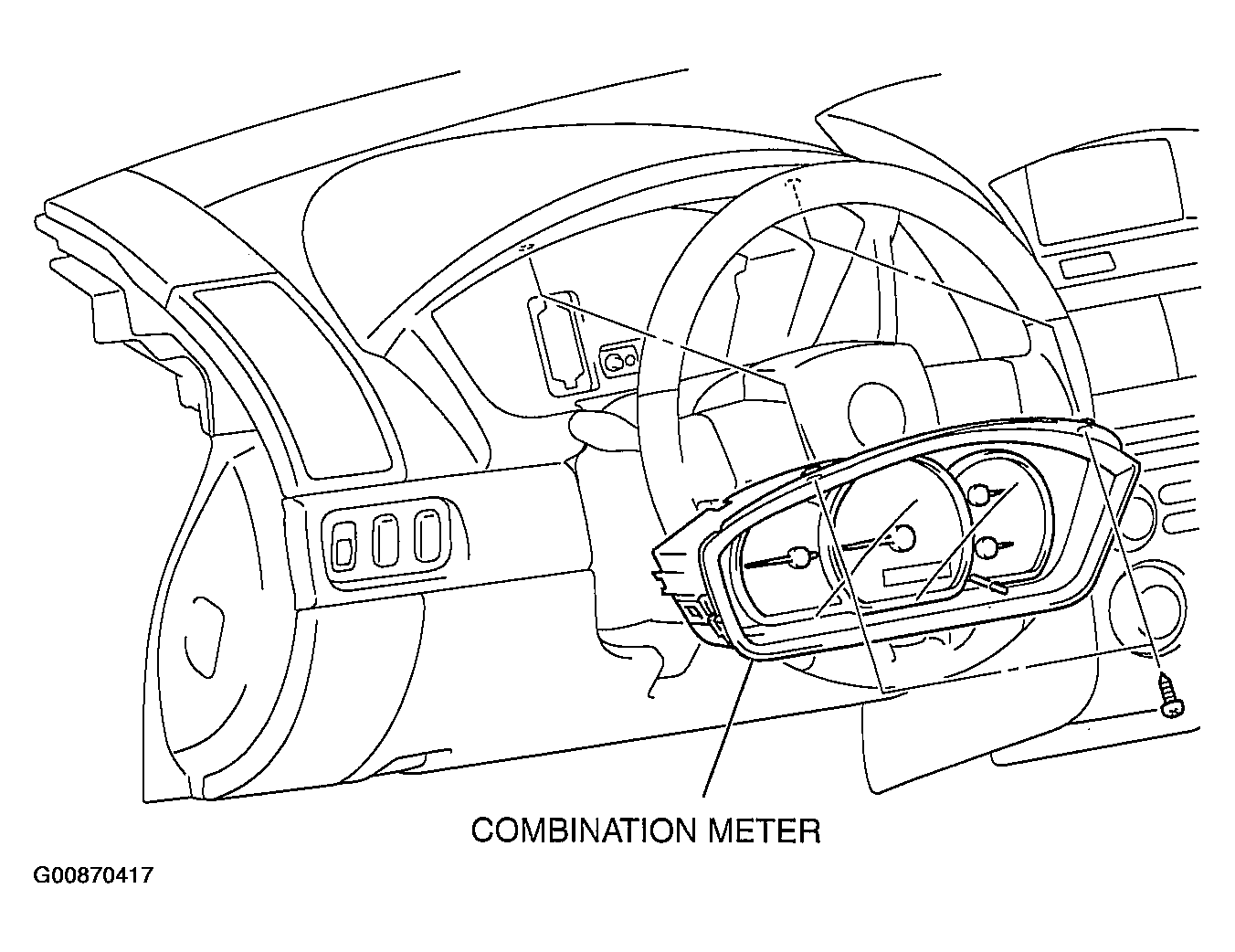

Fig 1: Removing And Installing Combination Meter Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
THE COMBINATION METER CONNECTOR FIXED IN THE INSTRUMENT PANEL.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
