Column Switch Connector C-309 Connector End View
Column Switch Connector C-309 Connector End View

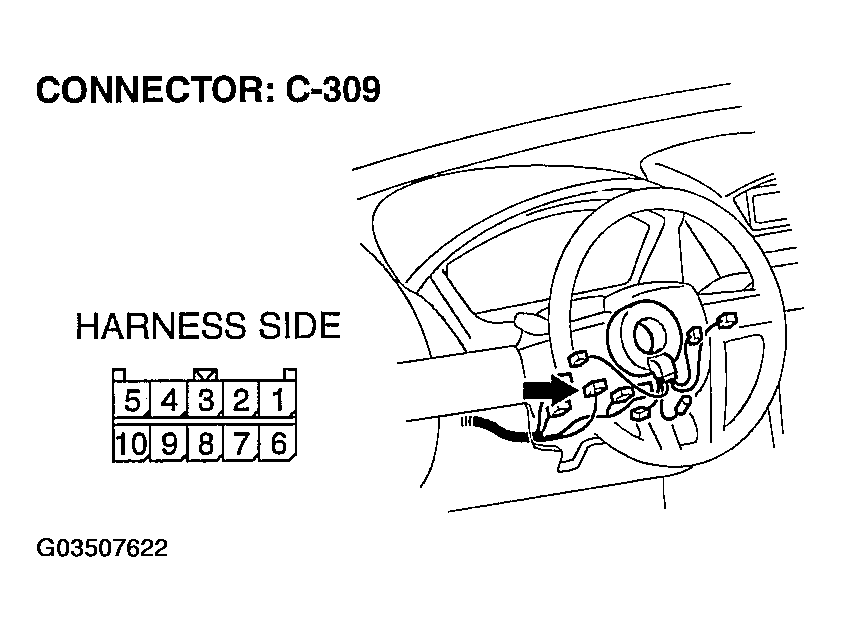

Fig 1: Column Switch Connector C-309 Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
