Brake Fluid Level Switch Connector B-07 Connector End View
Brake Fluid Level Switch Connector B-07 Connector End View

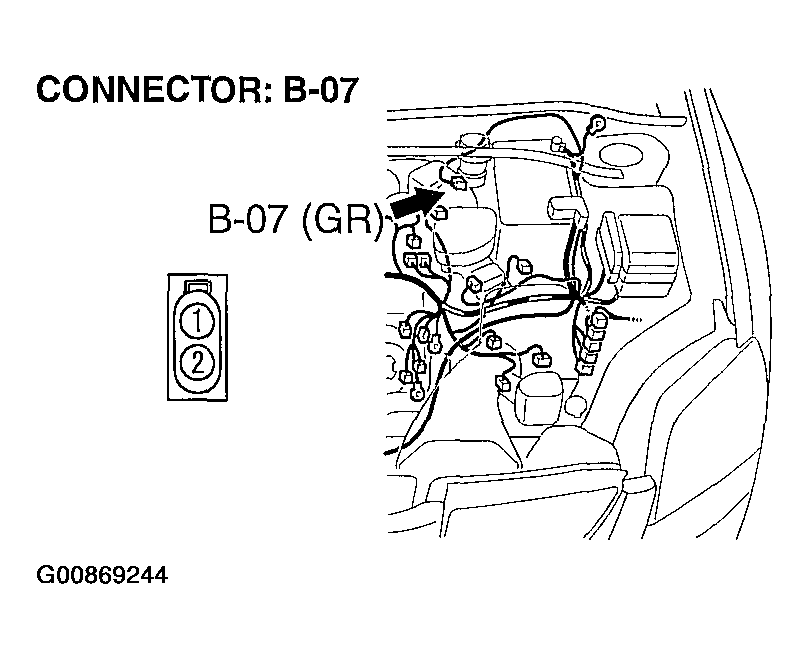

Fig 1: Brake Fluid Level Switch Connector B-07 Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
