< Vehicles With Sport Mode>

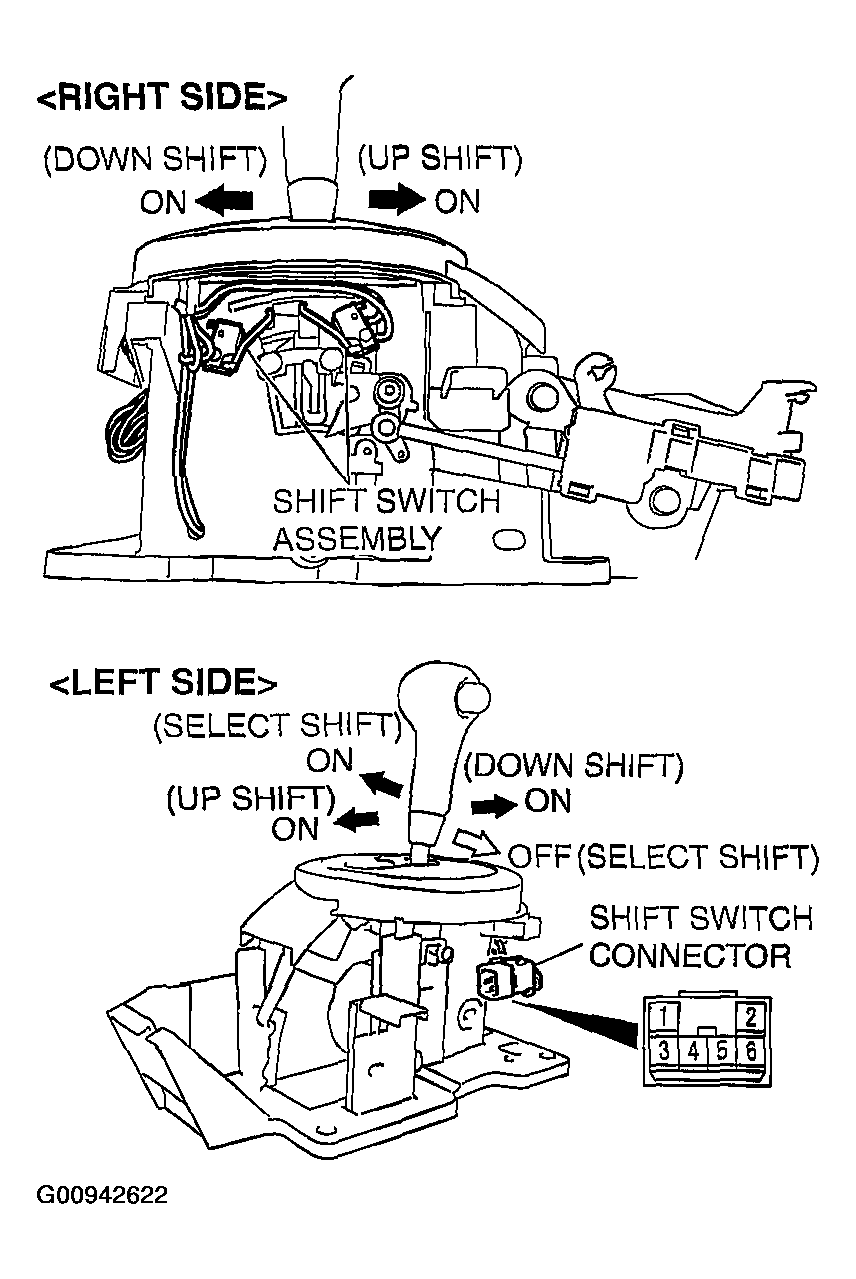

Fig 1: Checking Shift Switch Assembly Continuity
G00942622Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

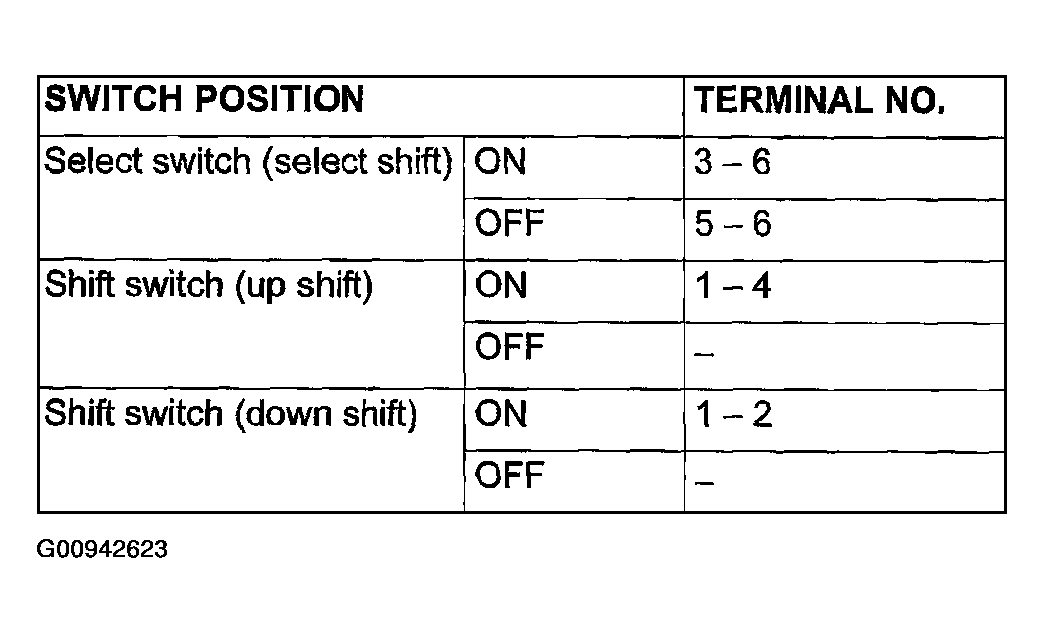

Fig 2: Shift Switch Assembly Continuity Table
G00942623Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
