Removal And Installation (F4A5A): Notes

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

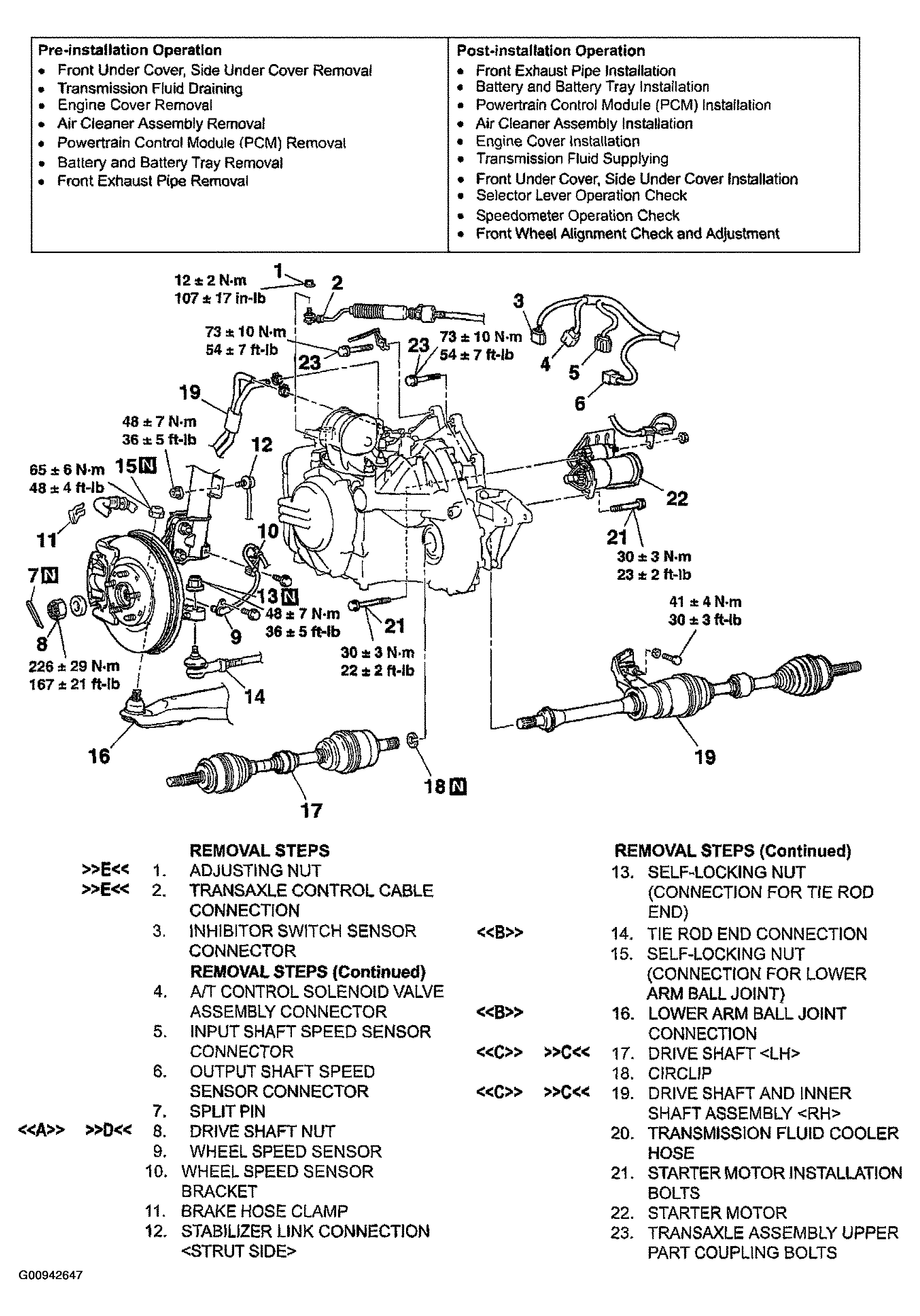

Fig 1: Removing Transaxle Assembly (F4A5A) (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

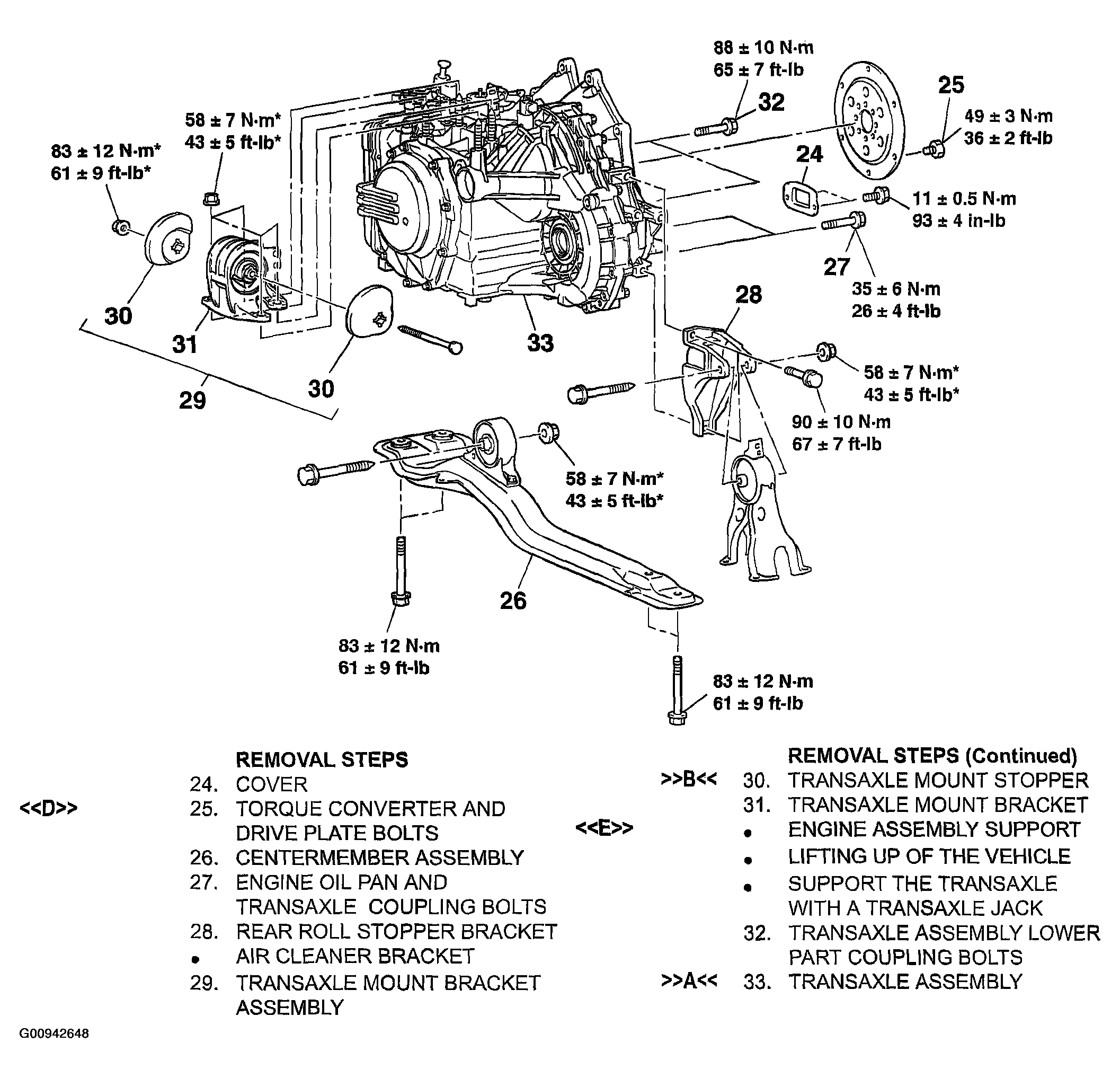

Fig 2: Removing Transaxle Assembly (F4A5A) (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990767: End Yoke Holder
MB991897: Ball Joint Remover
MB990242: Puller Shaft Puller
MB990244: Puller Bar
MB991354: Puller Body
MB990998: Front Hub Remover and Installer
MB991000: Spacer
MB991454: Engine Hanger Balancer
MB991895: Engine Hanger
MB991928: Engine Hanger
MB991932: Foot (standard)
MB991929: Joint (50)
MB991931: Joint (140)
