Actuator Test Reference Table

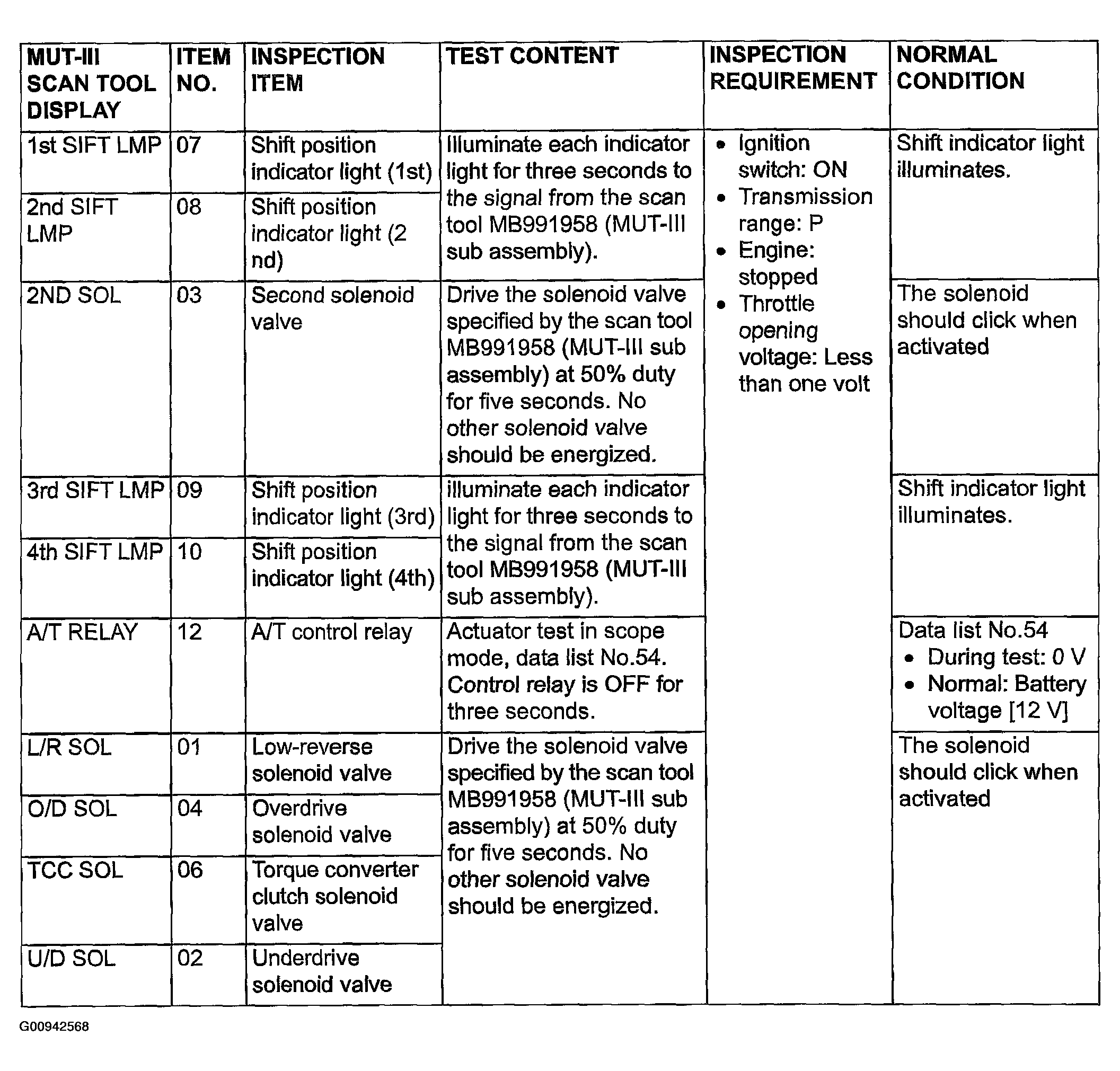

Fig 1: Actuator Test Reference Table

G00942568

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
