Emission Control System: Diagnosis

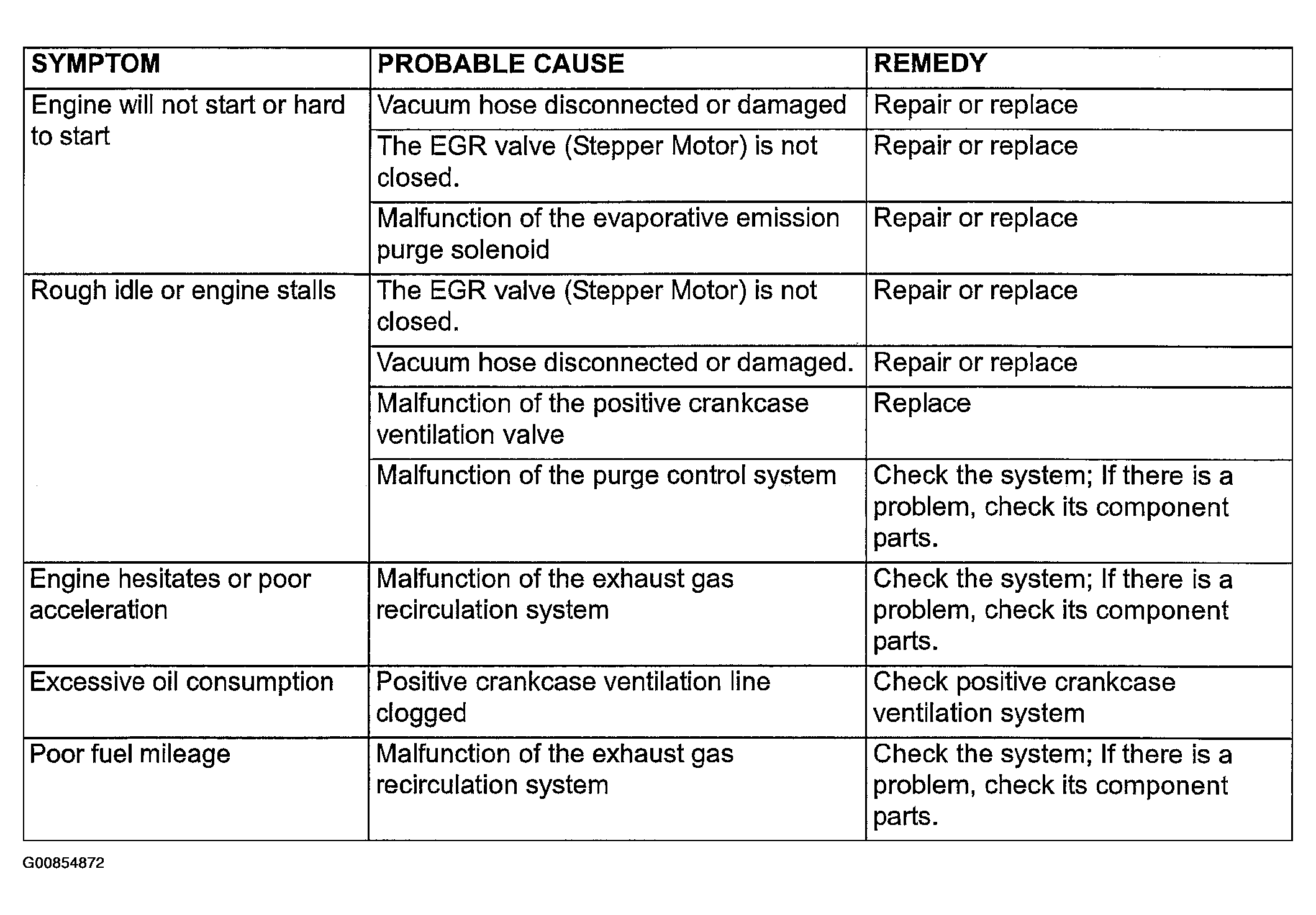

Fig 1: Emission Control Diagnosis Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
