Removal And Installation

CAUTION: Do not drop or shock the G and yaw rate sensor.
CAUTION: Always carry out calibration if steering angle is adjusted (Refer to IN THE EVENT OF A DISCHARGED BATTERY ). This is necessary because the TCL/ASC-ECU should update the G and yaw rate sensor neutral point.

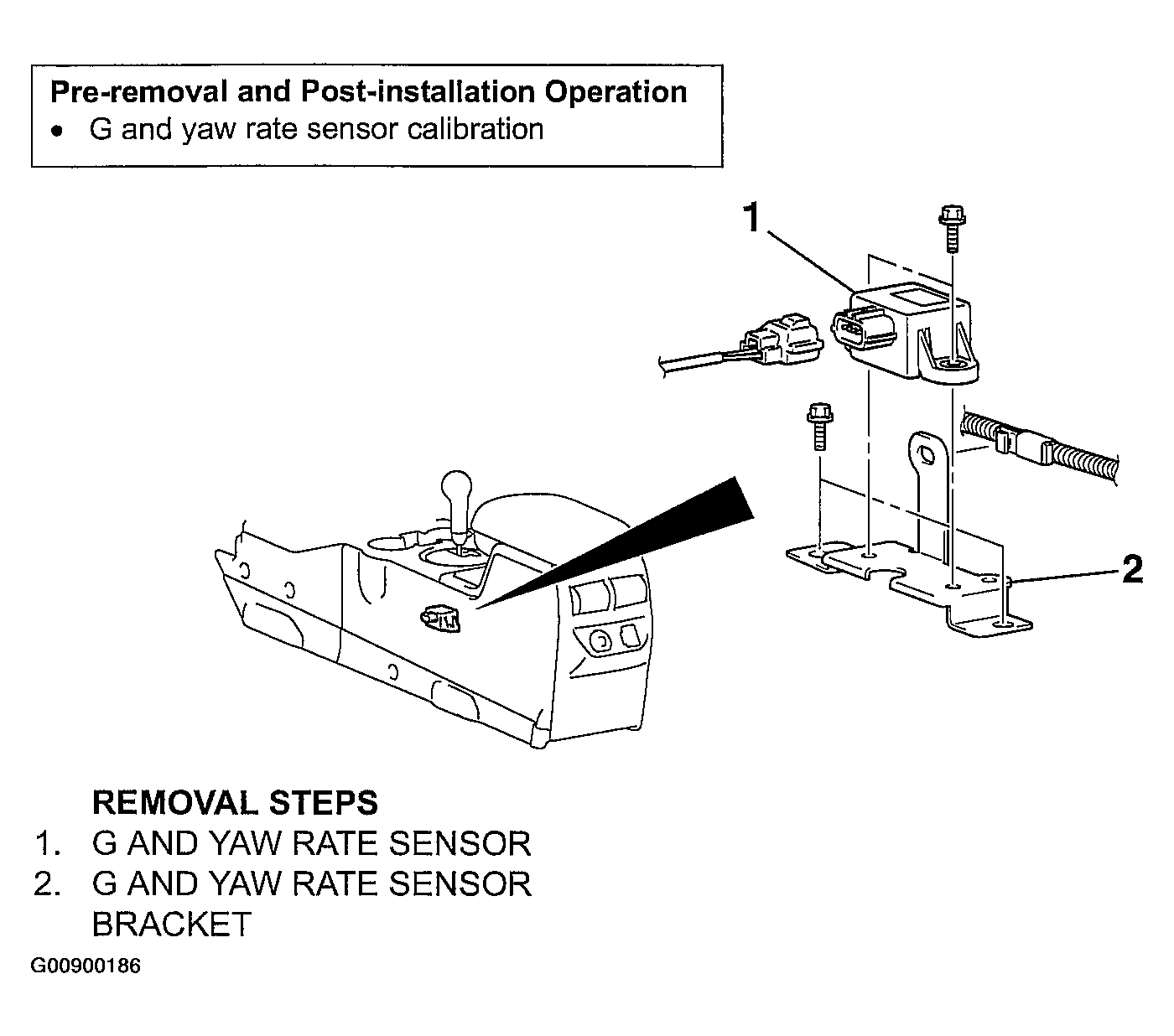

Fig 1: Locating G And Yaw Rate Sensor
G00900186Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
