Disassembly And Assembly

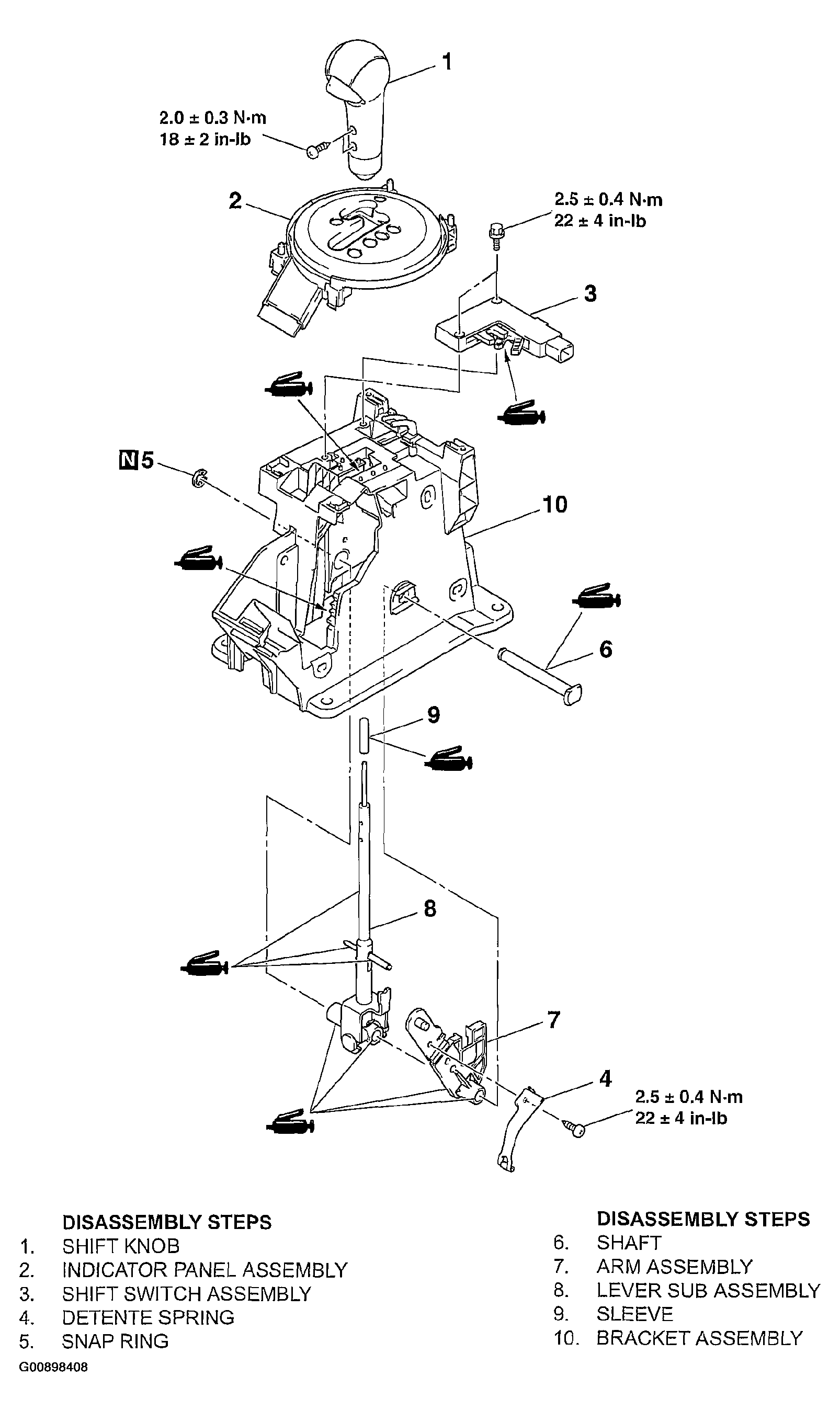

Fig 1: Disassembling/Assembling Transaxle Control
G00898408Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Shift Switch Assembly Continuity Check Table
G00898409Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
