Function Element Table

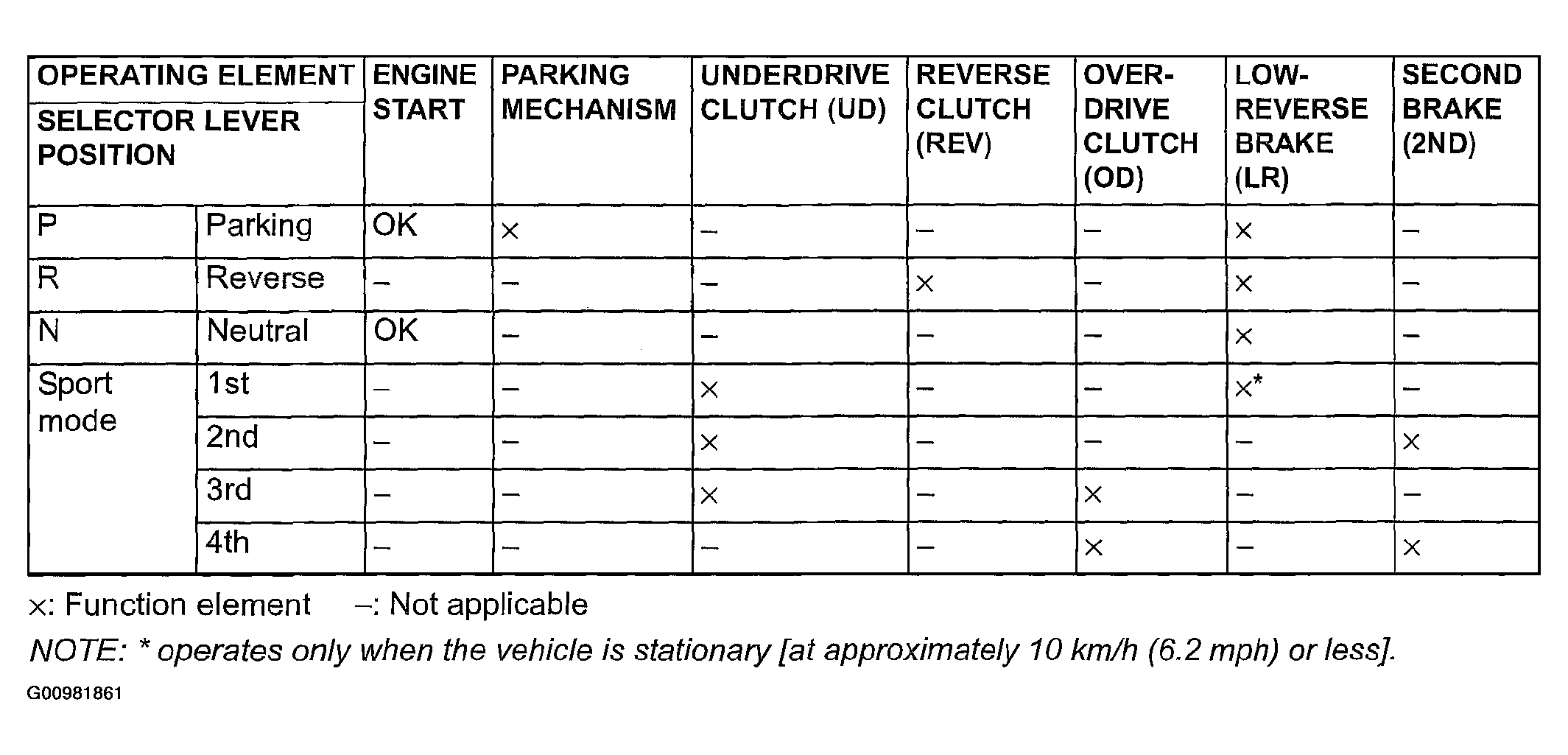

Fig 1: Automatic Transaxle Function Element Table
G00981861Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
