Home >> Mitsubishi >> 2004 >> Endeavor XLS, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis >> General Description >> Notes

Automatic Trans: Diagnosis: General Description: Notes

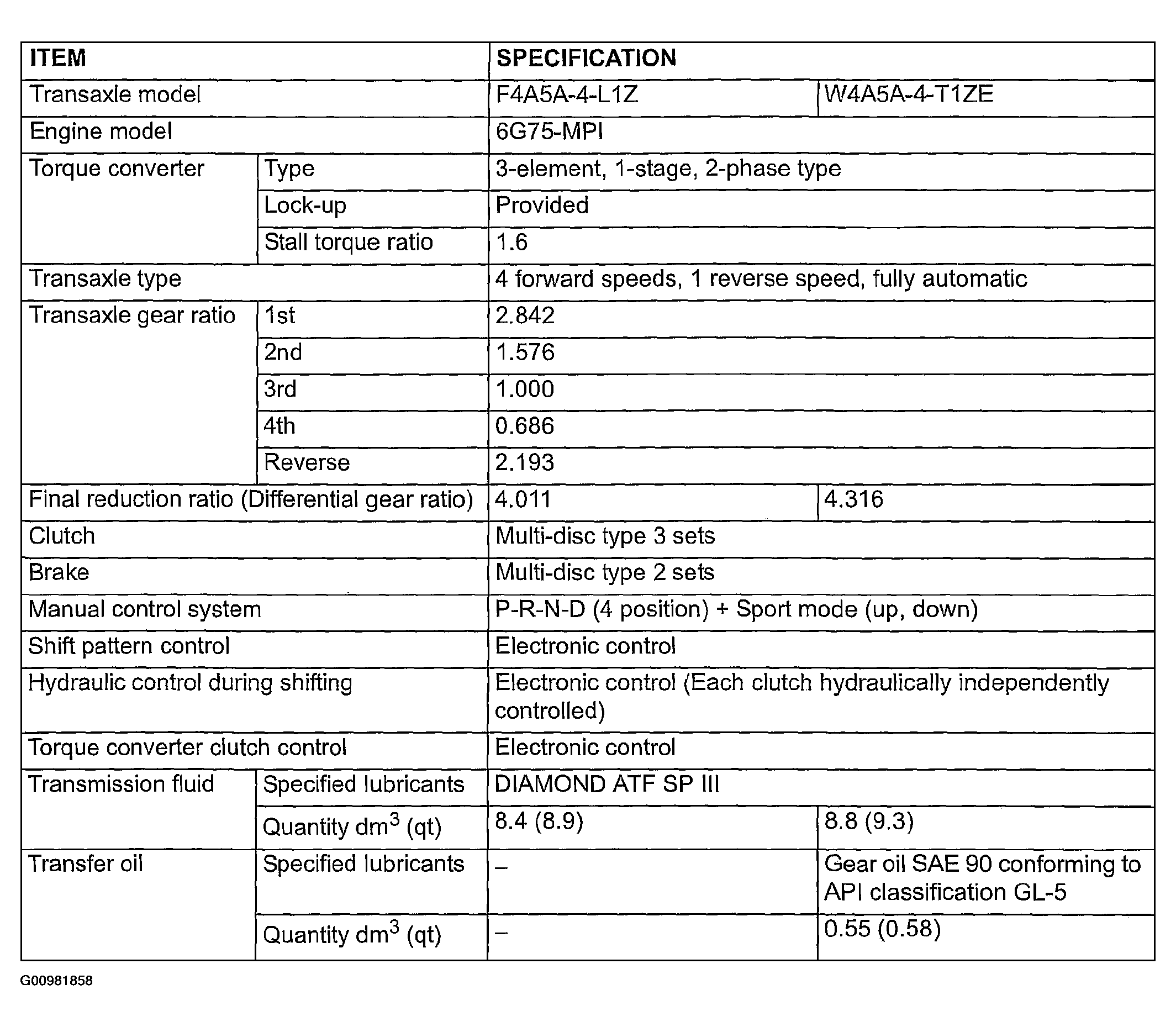

Fig 1: Automatic Transaxle General Description Chart

G00981858

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
