Endeavor Limited, AWD
>>
Repair and Diagnosis
>>
Suspension
>>
Front Suspension
>>
Strut Assembly
>>
Removal And Installation
Removal And Installation

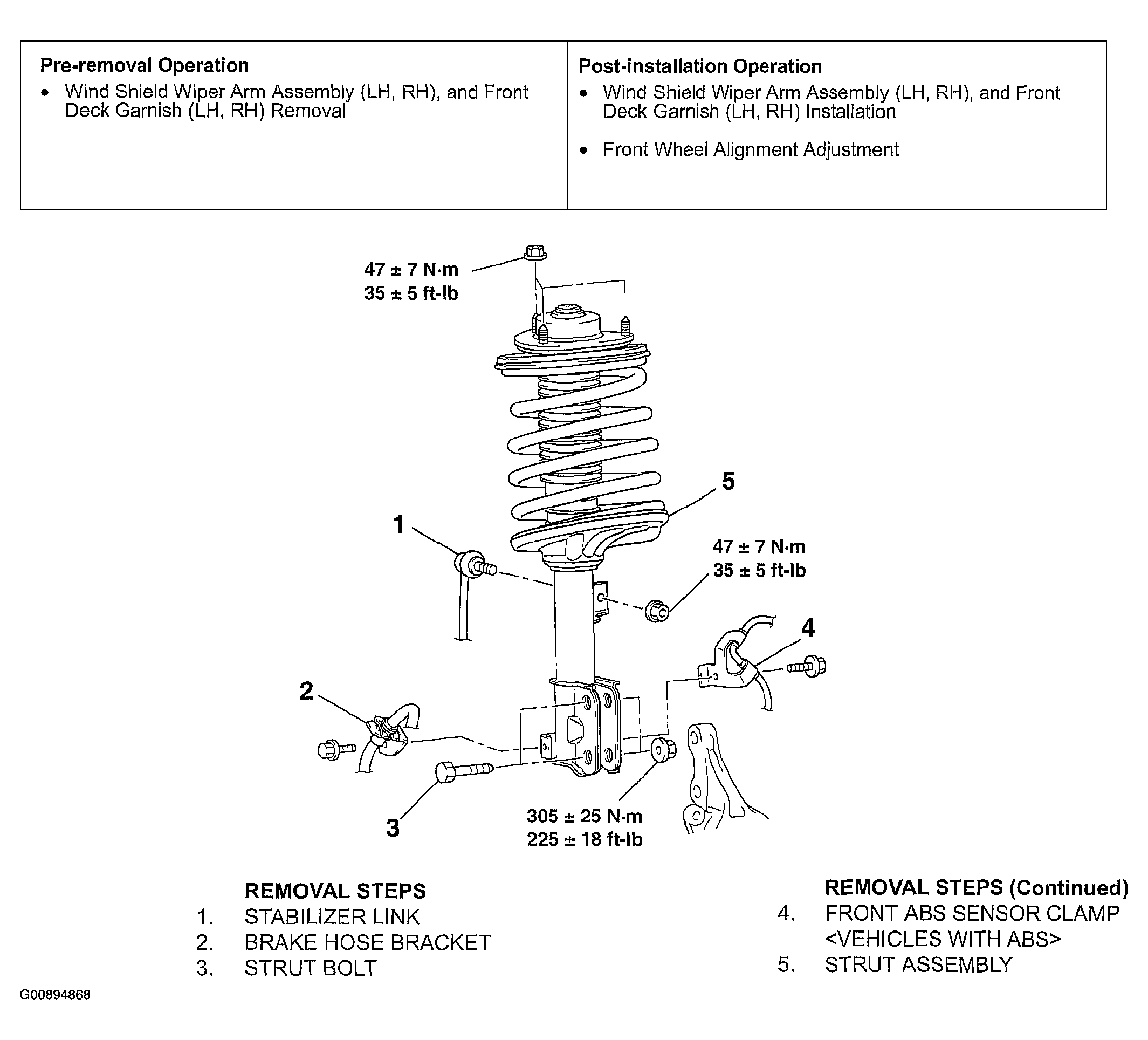

Fig 1: Removing & Installing Strut Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
