Removal And Installation: Notes

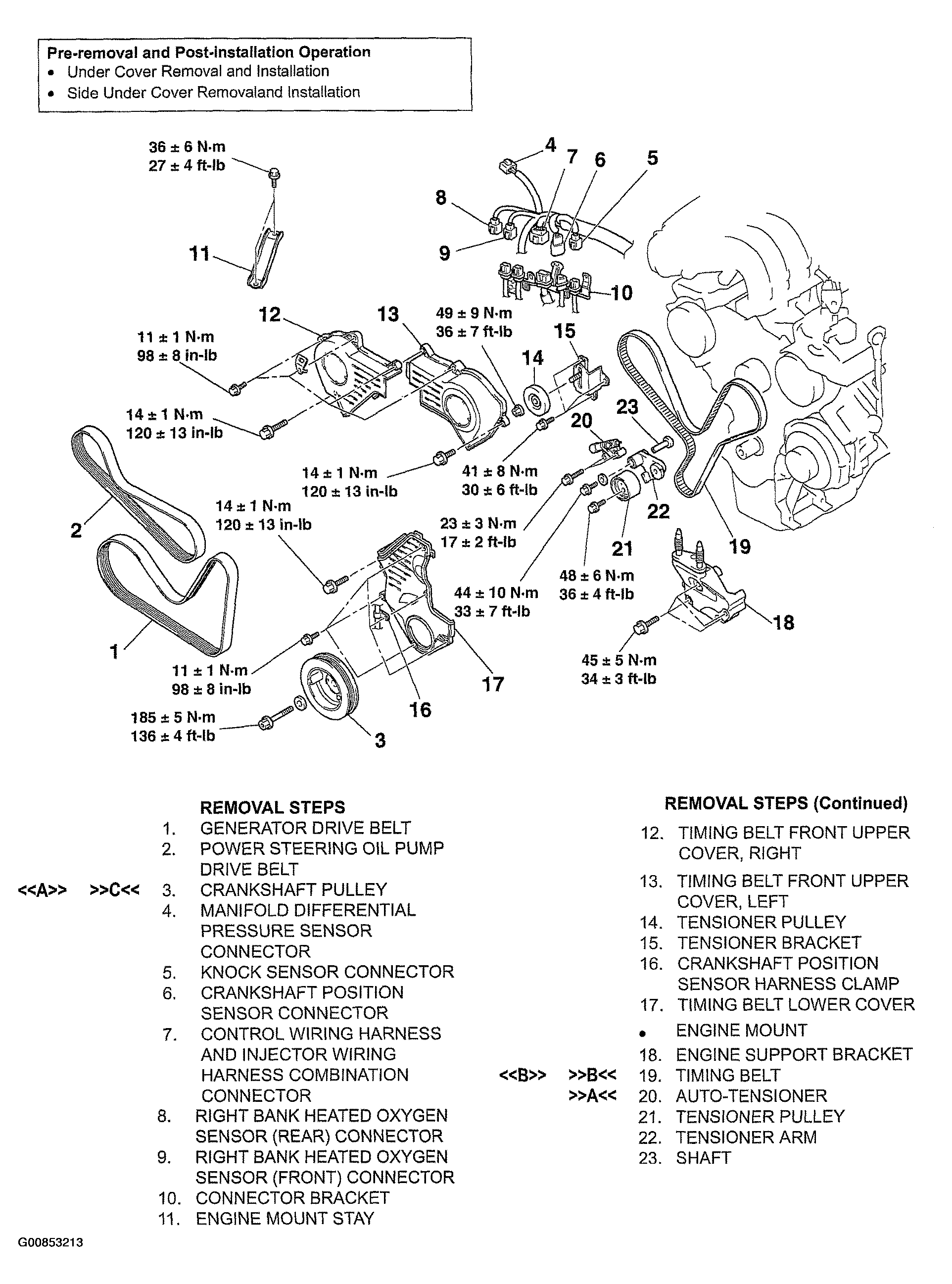

Fig 1: Removal And Installation Of Timing Belt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991800: Pulley Holder
• MB991802: Pin B
• MD998767: Tensioner Pulley Socket Wrench
• MD998769: Crankshaft Pulley Spacer
