Special Tools
Special Tools

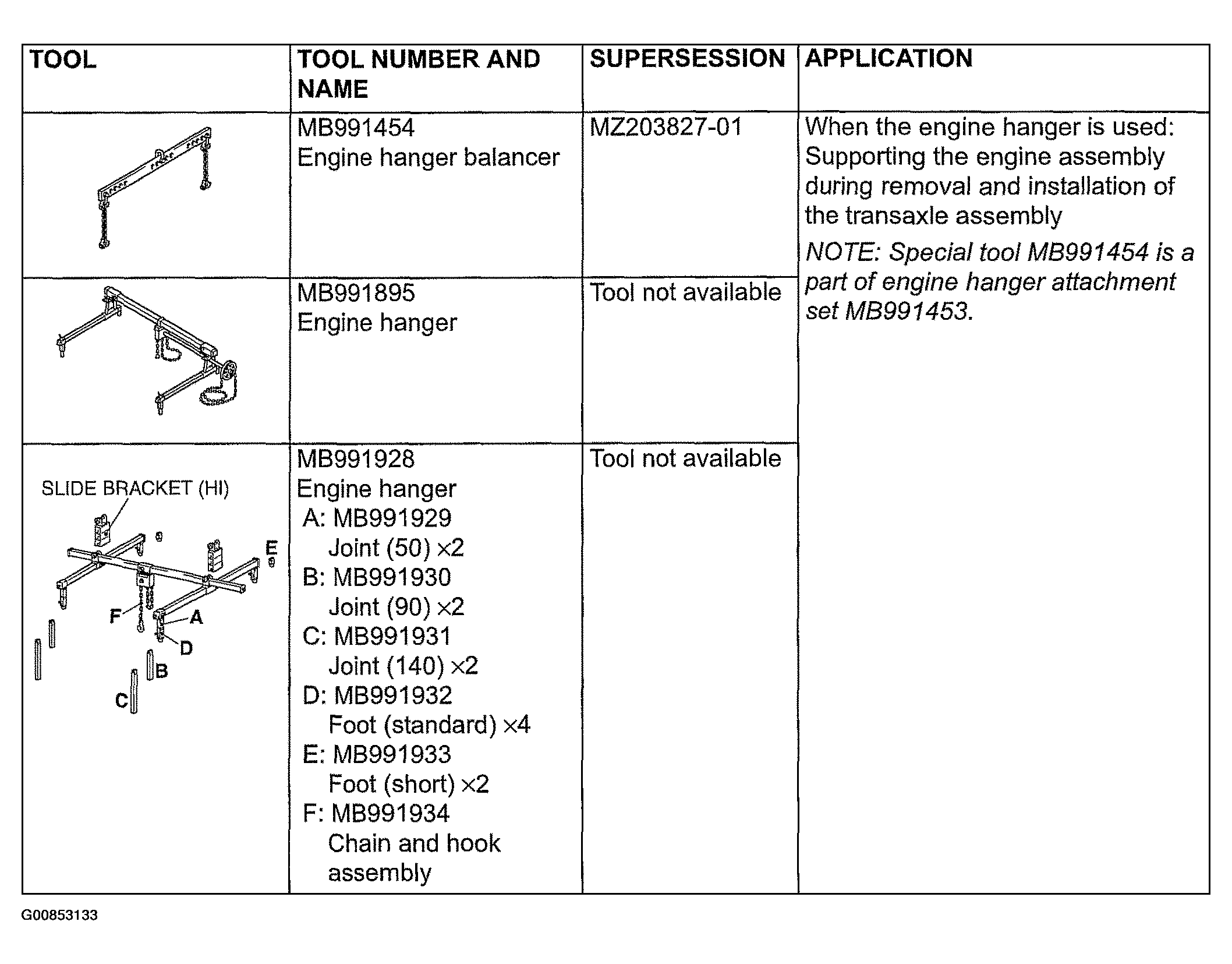

Fig 1: Special Tool Chart (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

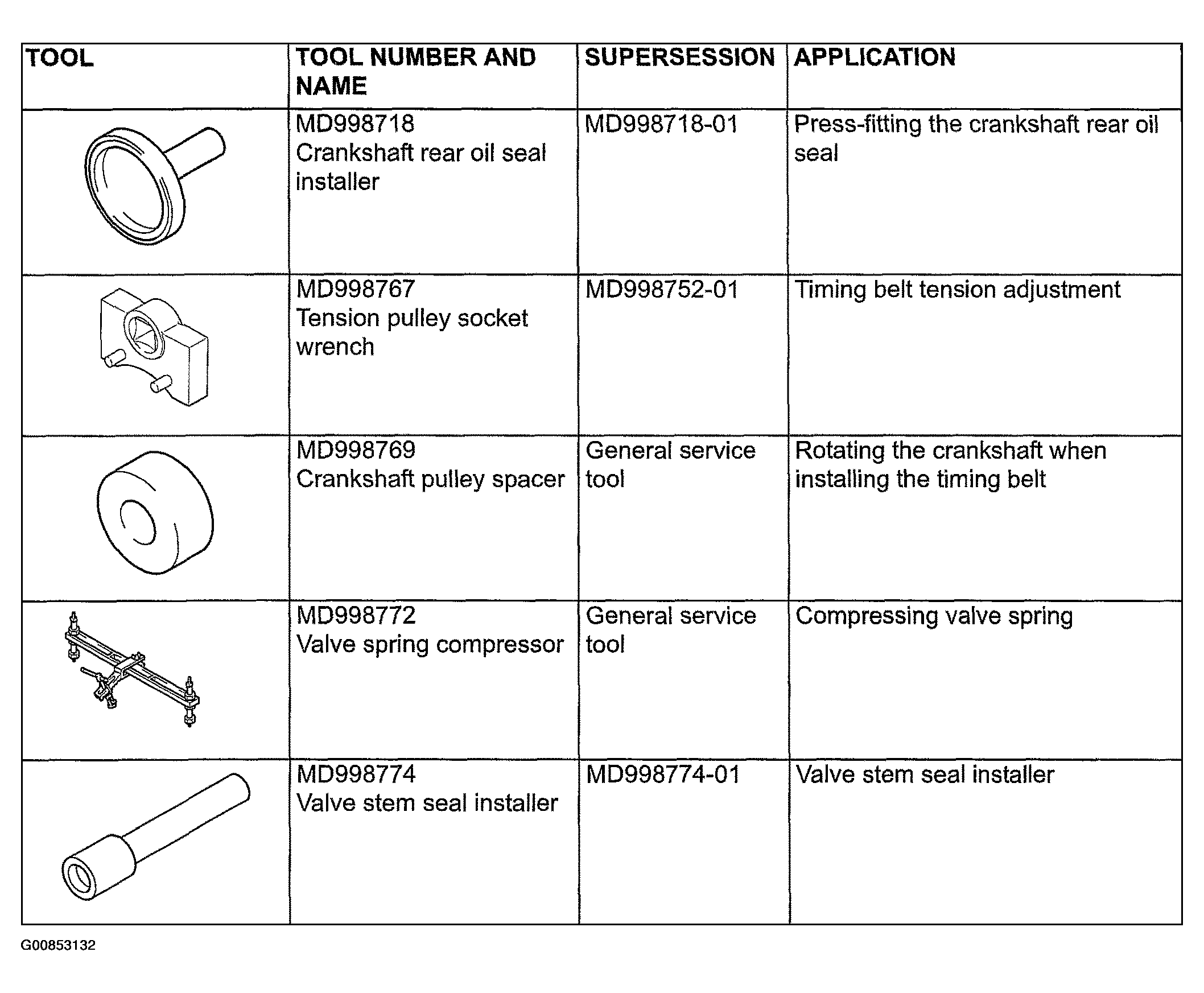

Fig 2: Special Tool Chart (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

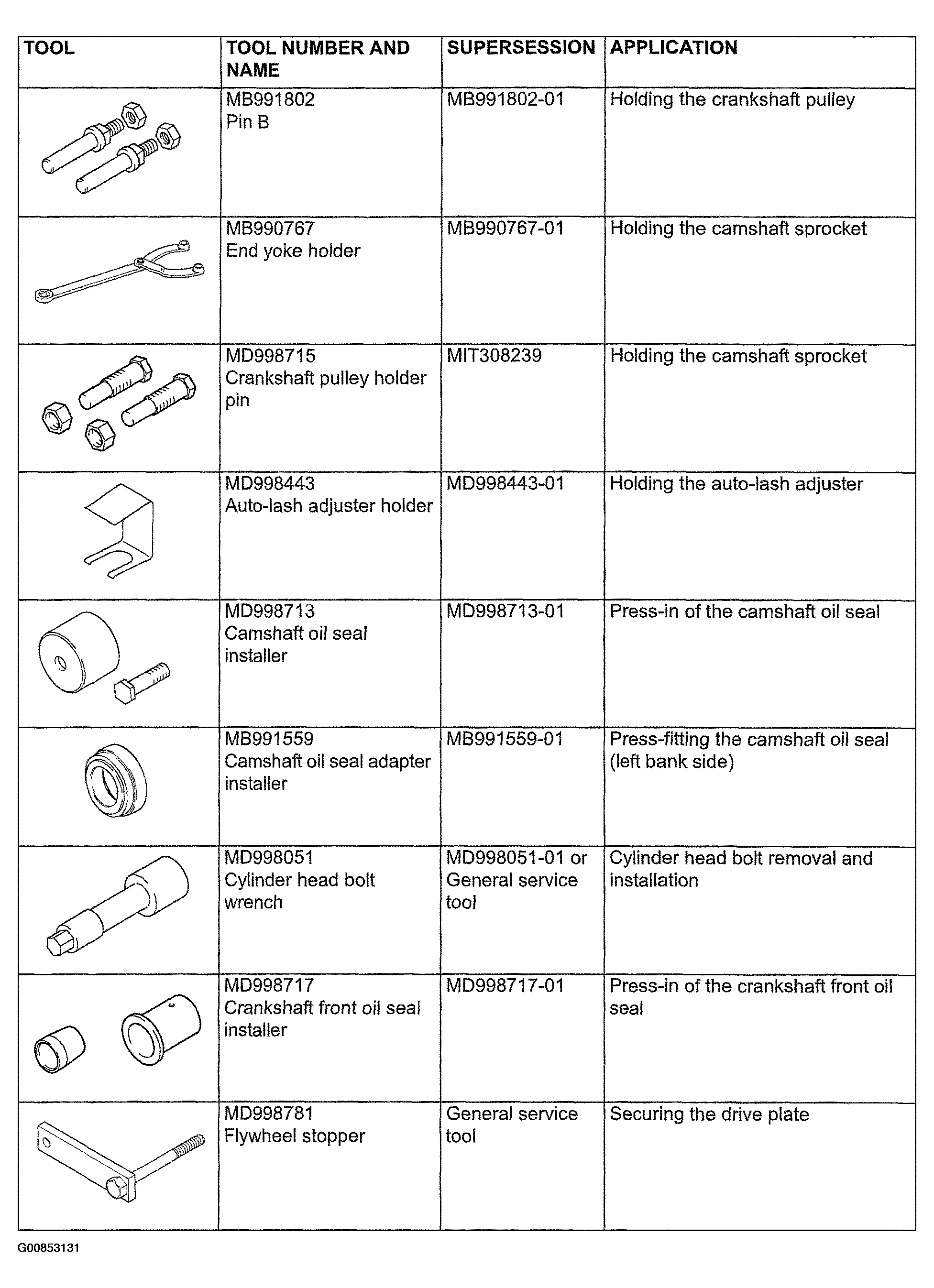

Fig 3: Special Tool Chart (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

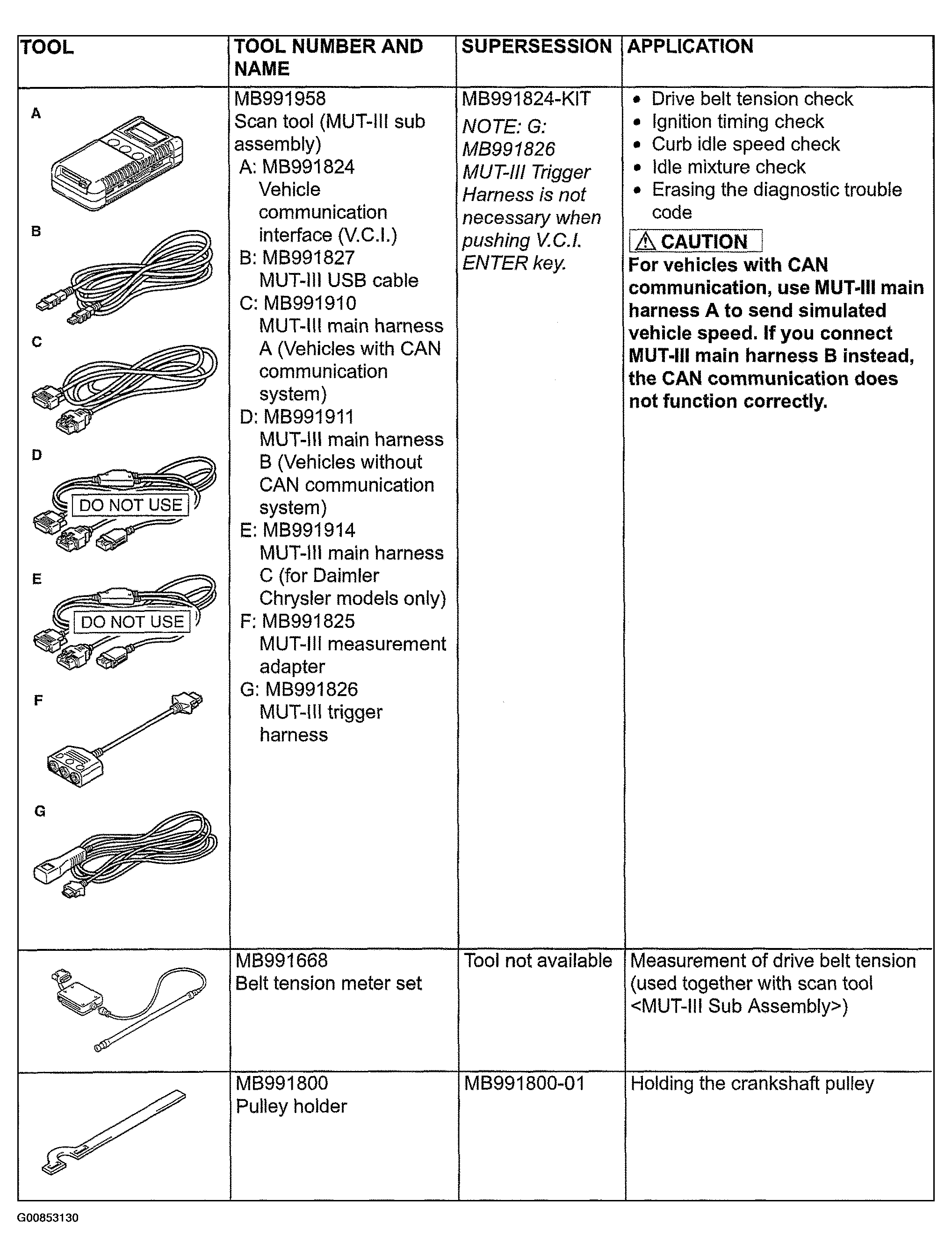

Fig 4: Special Tool Chart (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
