Rear Power Window Motor Connector End View

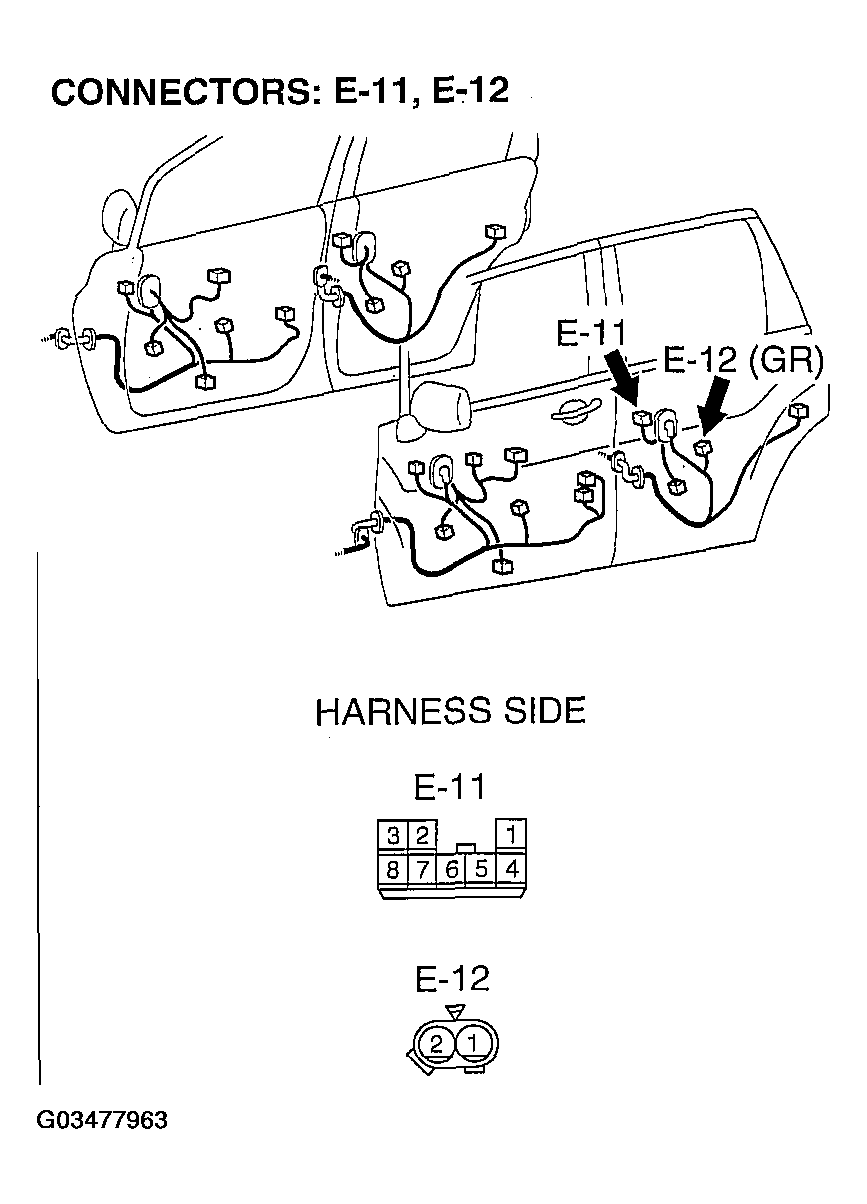

Fig 1: Rear Power Window Motor Connector End View

G03477963

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
