Intermediate Connector D-22 Connector End View

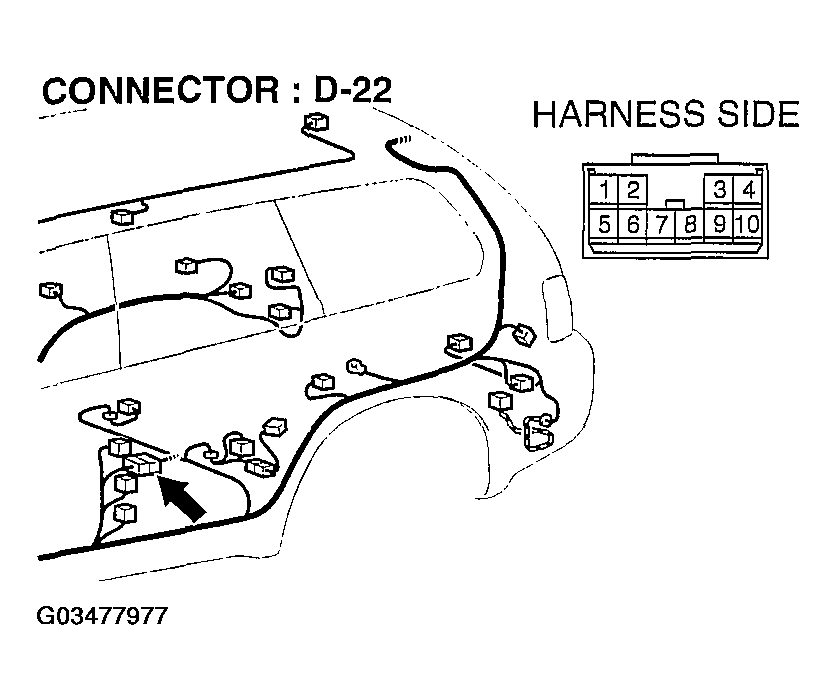

Fig 1: Intermediate Connector D-22 Connector End View

G03477977

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
