A/T Control Relay Connector B-14X Connector End View
A/T Control Relay Connector B-14X Connector End View

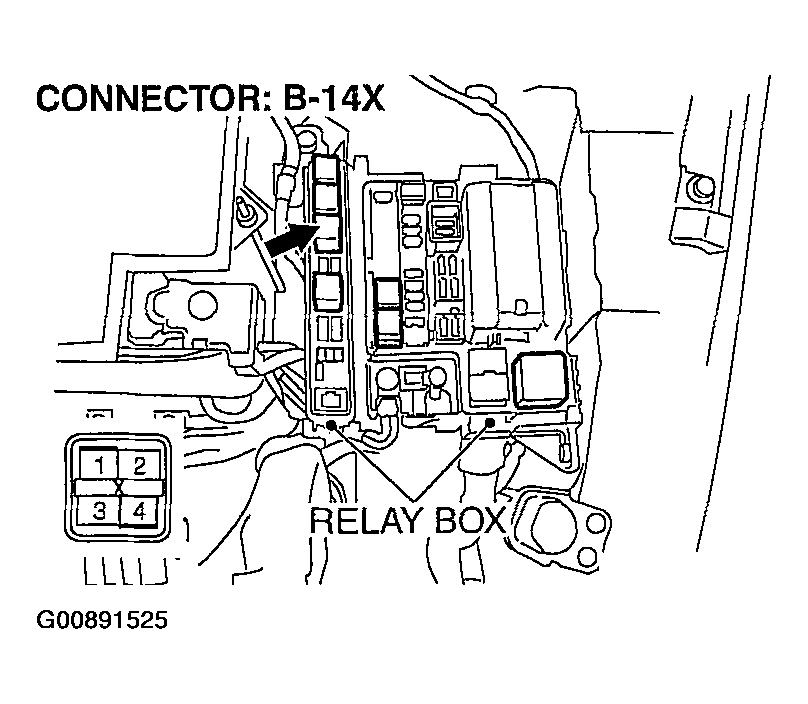

Fig 1: A/T Control Relay Connector B-14X Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
