Specifications & Procedures

BELT ADJUSTMENT

Application (1) Deflection New Belt - In. (mm) (1) Deflection Used Belt - In. (mm)
A/C & Generator .24-.30 (6.2-7.6) .35-.40 (9.0-10.0)
P/S .38-.48 (9.6-12.3) .52-.59 (13.2-15.1)

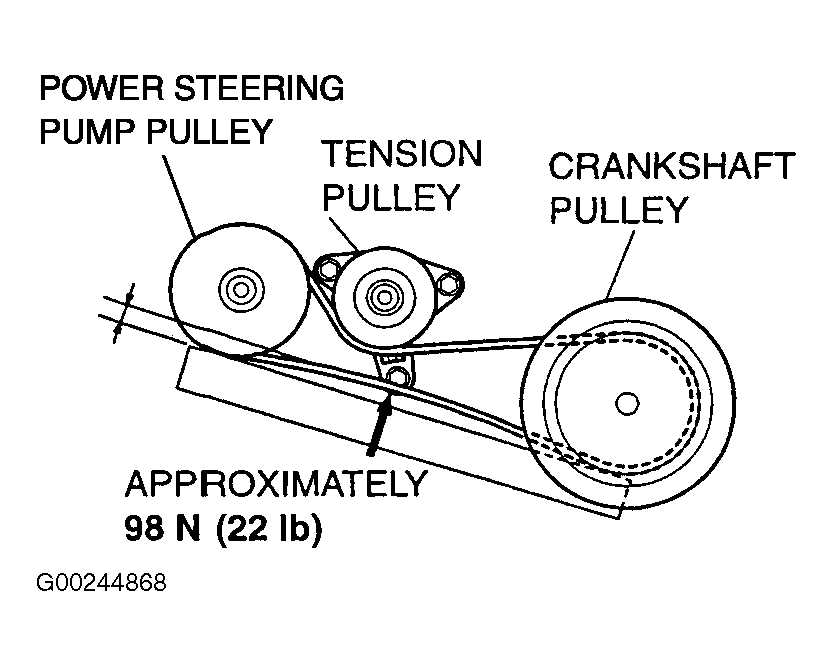

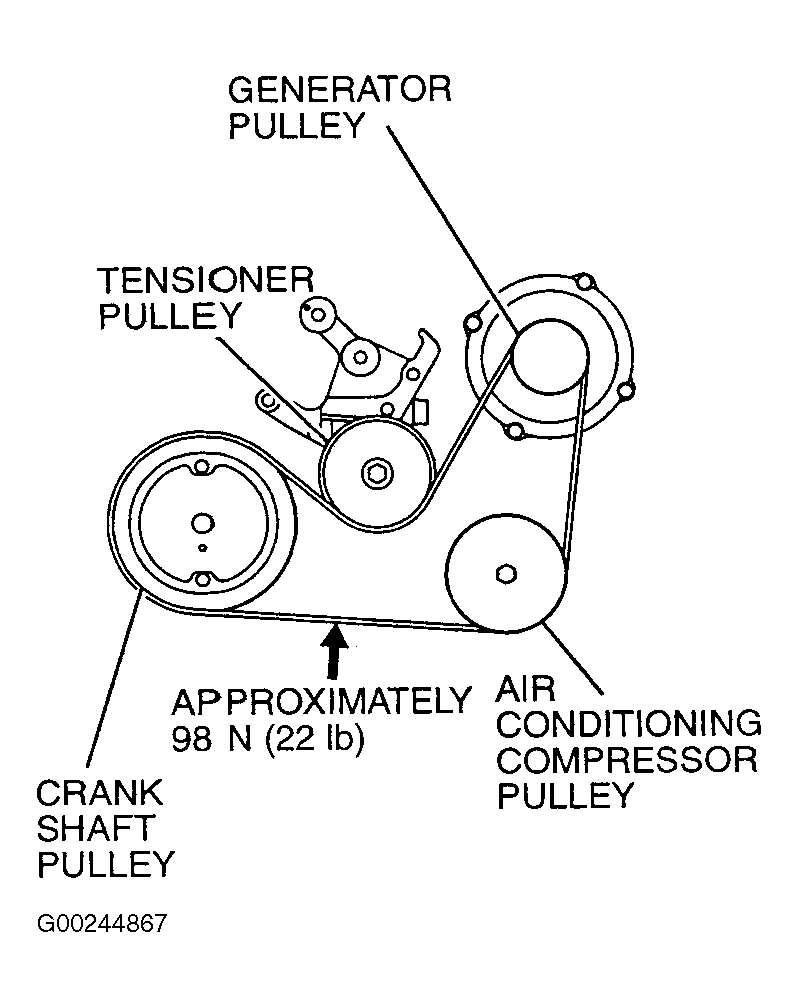

(1) With 22 lbs. (10 kg) pressure applied on longest belt run midway between pulleys. See Figure-Figure .
