When The Abs Fluid Pressure Is Increasing

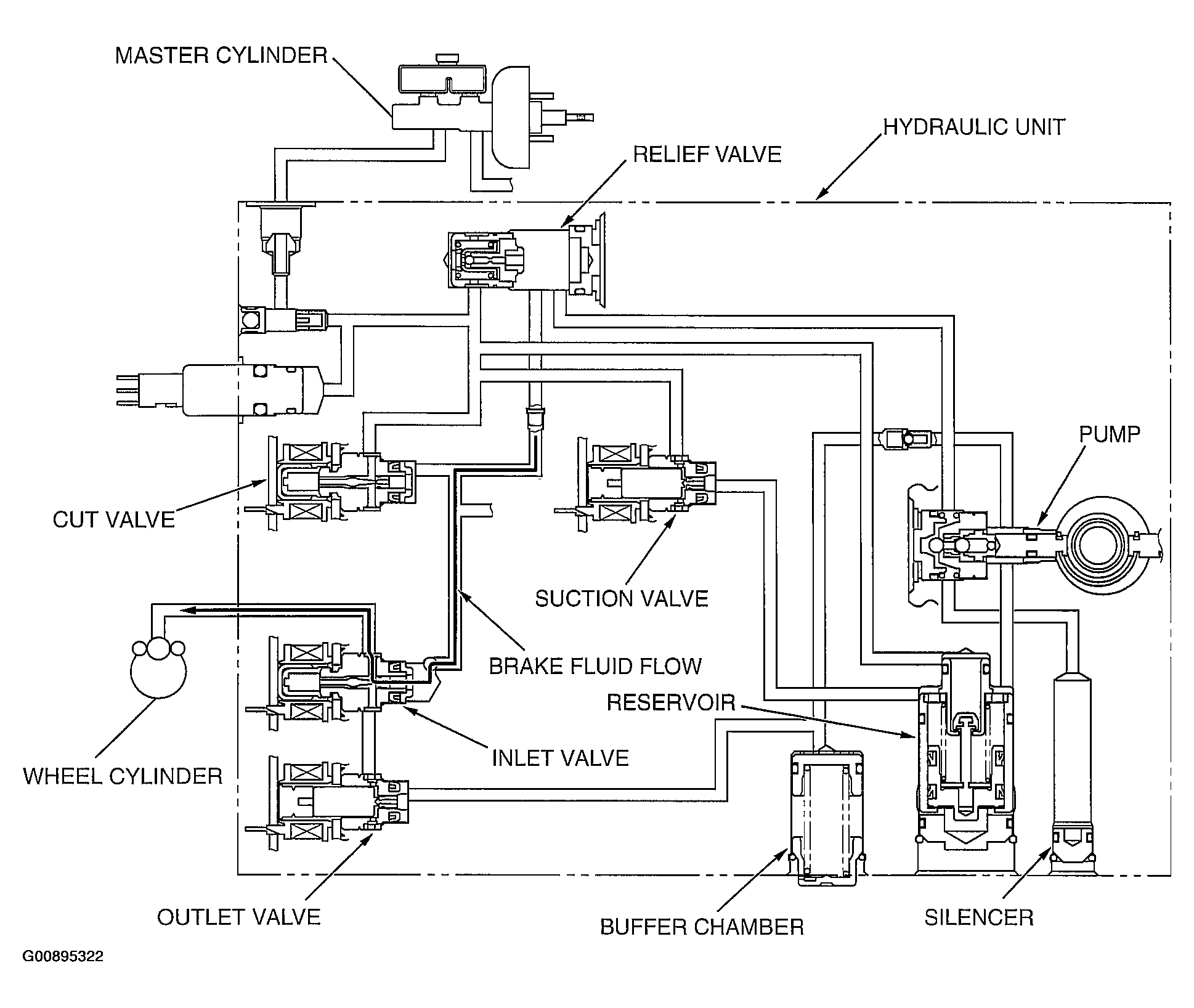

Fig 1: ABS Fluid Pressure Is Increasing Diagram
G00895322Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The system opens the inlet solenoid valve and closes the outlet solenoid valve to increase the brake fluid pressure in the wheel cylinders.

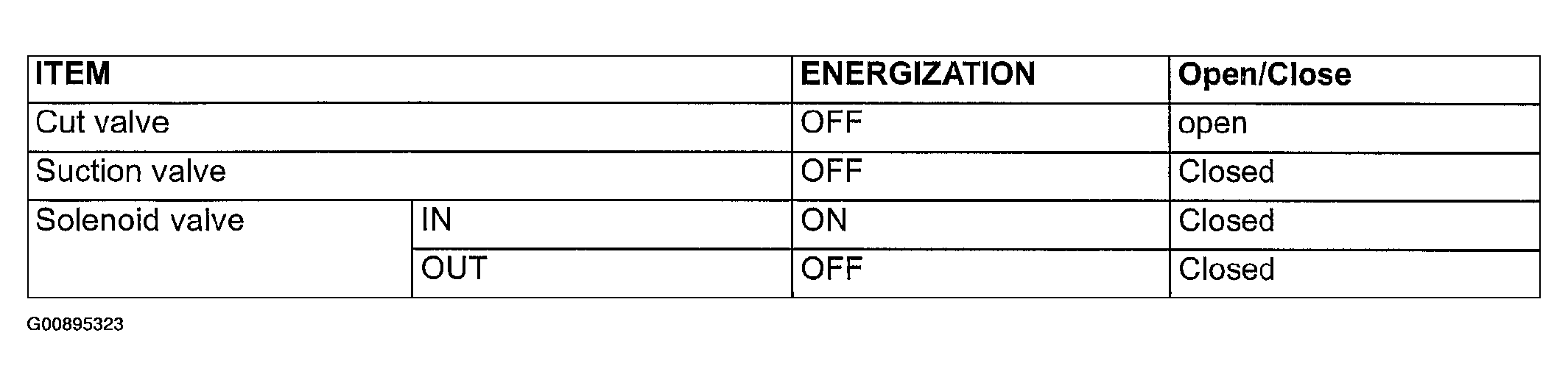

Fig 2: Status Of Operation Valve Specification
G00895323Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
