Home >> Mitsubishi >> 2004 >> Endeavor LS, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> UNDERDRIVE Clutch And Input Shaft >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

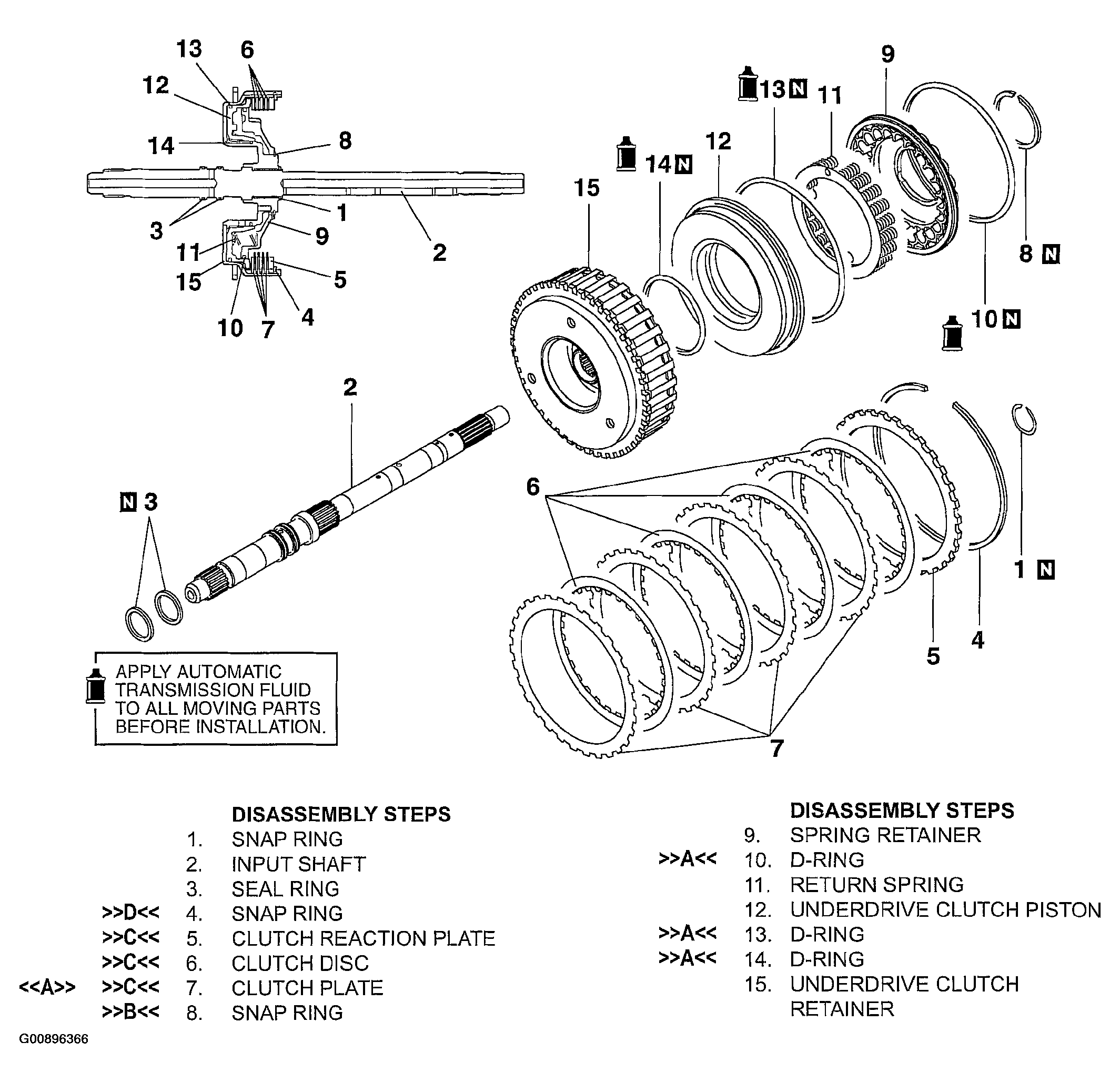

Fig 1: Disassembling And Assembling View Of Underdrive Clutch And Input Shaft
G00896366Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
