Removal And Installation: Notes
WARNING:
Before removing the steering wheel and air bag module assembly, refer to AIR BAG SAFETY PRECAUTIONS
and DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING
or PASSENGER-SIDE AIR BAG MODULE
.
CAUTION:
On vehicles with ASC, always carry out steering wheel sensor calibration after the steering shaft has been installed (Refer to STEERING WHEEL SENSOR CALIBRATION
). This is necessary because the TCL/ASC-ECU should update the steering neutral point.

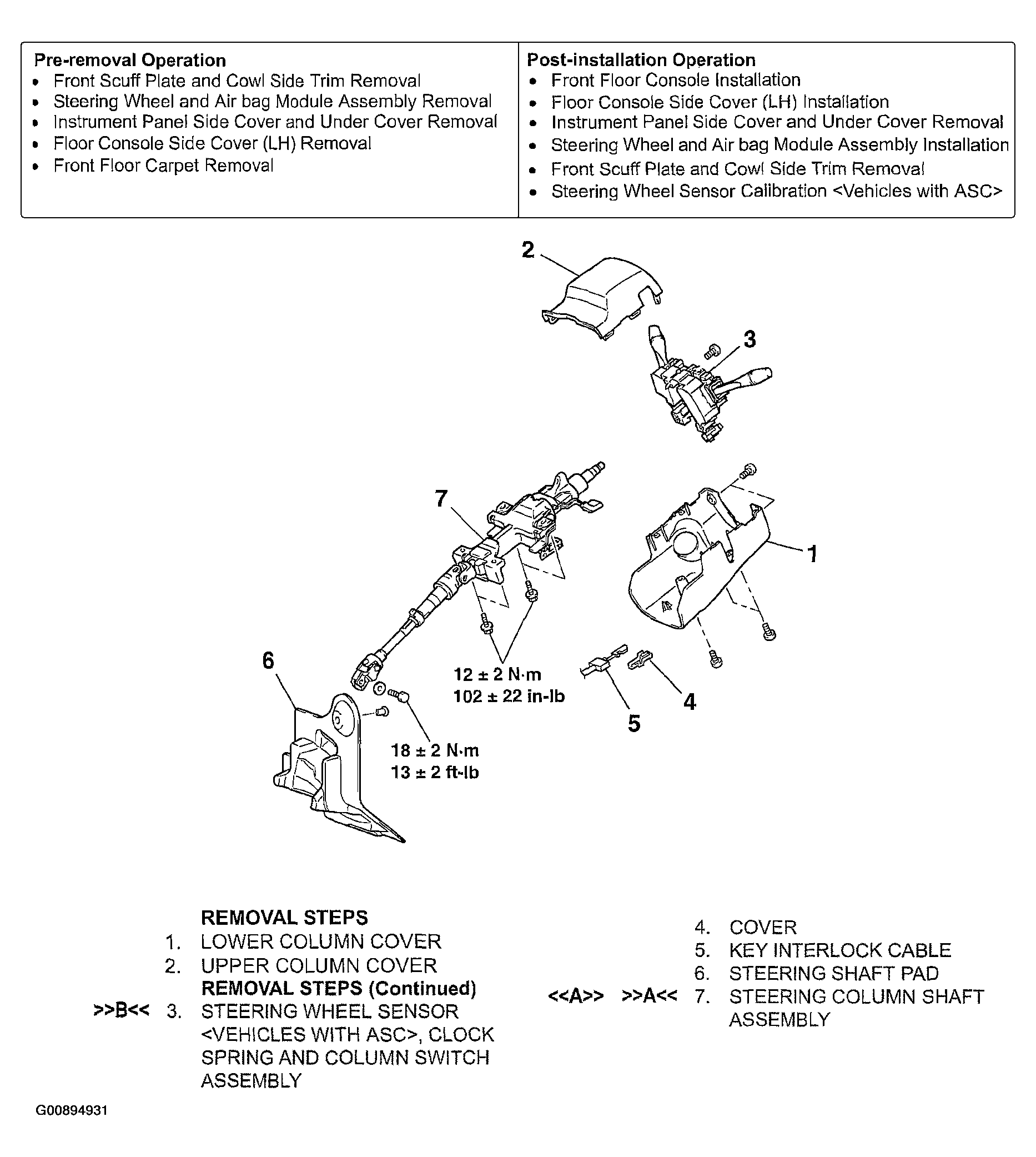

Pre-removal Operation
- Front Scuff Plate and Cowl Side Trim Removal (Refer to TRIMS .)
- Steering Wheel and Air bag Module Assembly Removal (Refer to STEERING WHEEL .)
- Instrument Panel Side Cover and Under Cover Removal (Refer to INSTRUMENT PANEL ASSEMBLY .)
- Floor Console Side Cover (LH) Removal (Refer to FLOOR CONSOLE ASSEMBLY .)
- Front Floor Carpet Removal
Post-installation Operation
- Front Floor Console Installation
- Floor Console Side Cover (LH) Installation (Refer to FLOOR CONSOLE ASSEMBLY .)
- Instrument Panel Side Cover and Under Cover Removal (Refer to INSTRUMENT PANEL ASSEMBLY .)
- Steering Wheel and Air bag Module Assembly Installation (Refer to STEERING WHEEL .)
- Front Scuff Plate and Cowl Side Trim Removal (Refer to TRIMS .)
- Steering Wheel Sensor Calibration < Vehicles with ASC> (Refer to STEERING WHEEL SENSOR CALIBRATION .)
