Resistance And Continuity Between Harness-Side Connector Terminals
Required Special Tool:
MB991970: ABS check harness
- Disconnect the ABS/TCL-ECU connector A-02 and connect special tool MB991970 to the A-02 body-side harness connector. Then turn the ignition switch to the "LOCK" (OFF) position and checking resistance and continuity.
- Check the resistance and continuity between the terminals indicated in the table below.

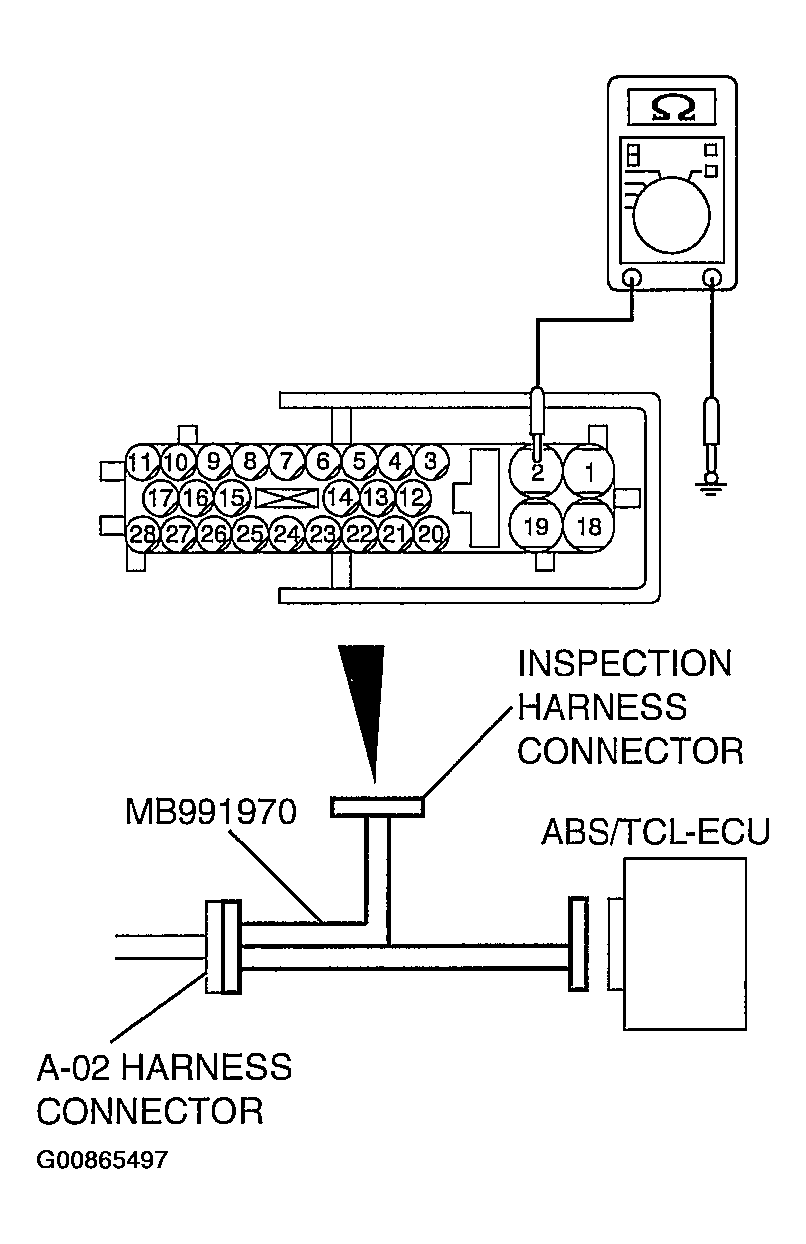

- The terminal layout is shown in the illustration.
CONNECTOR TERMINAL
| CONNECTOR TERMINAL NO. | SIGNAL | NORMAL CONDITION |
|---|---|---|
| 2 - body ground | Ground | Less than 2 ohms |
| 9 - 10 | Front-right wheel speed sensor | 1.24 - 1.64 kΩ |
| 11 - 17 | Rear-right wheel speed sensor | 1.24 - 1.64 kΩ |
| 16 - 26 | Front-left wheel speed sensor | 1.24 - 1.64 kΩ |
| 18 - body ground | Ground | Less than 2 ohms |
| 27 - 28 | Rear-left wheel speed sensor | 1.24 - 1.64 kΩ |
Required Special Tool:
MB991952: ABS check harness
- Disconnect the TCL/ASC-ECU connector A-32 and connect special tool MB991952 to the A-32 body-side harness connector. Then turn the ignition switch to the "LOCK" (OFF) position and checking resistance and continuity.
- Check the resistance and continuity between the terminals indicated in the table below.

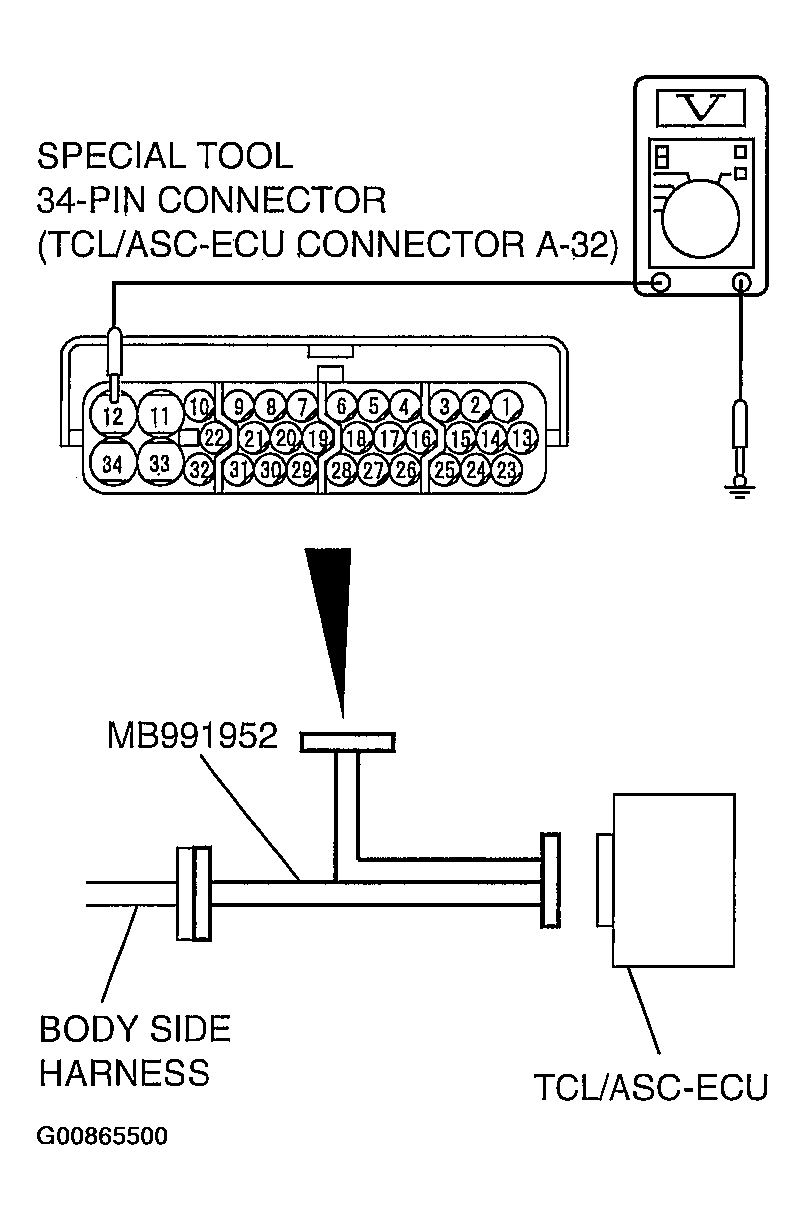

- The terminal layout is shown in the illustration.
CONNECTOR TERMINAL
| CONNECTOR TERMINAL NO. | SIGNAL | NORMAL CONDITION |
|---|---|---|
| 6 - 7 | Rear-left wheel speed sensor | 1.24 - 1.64 kΩ |
| 8 - 9 | Rear-right wheel speed sensor | 1.24 - 1.64 kΩ |
| 12 - body ground | Ground | Less than 2 ohms |
| 21 - 30 | Front-right wheel speed sensor | 1.24 - 1.64 kΩ |
| 22 - 31 | Front-left wheel speed sensor | 1.24 - 1.64 kΩ |
| 34 - body ground | Ground | Less than 2 ohms |
