Actuator Test Reference Table

The scan tool activates the following actuators for testing.

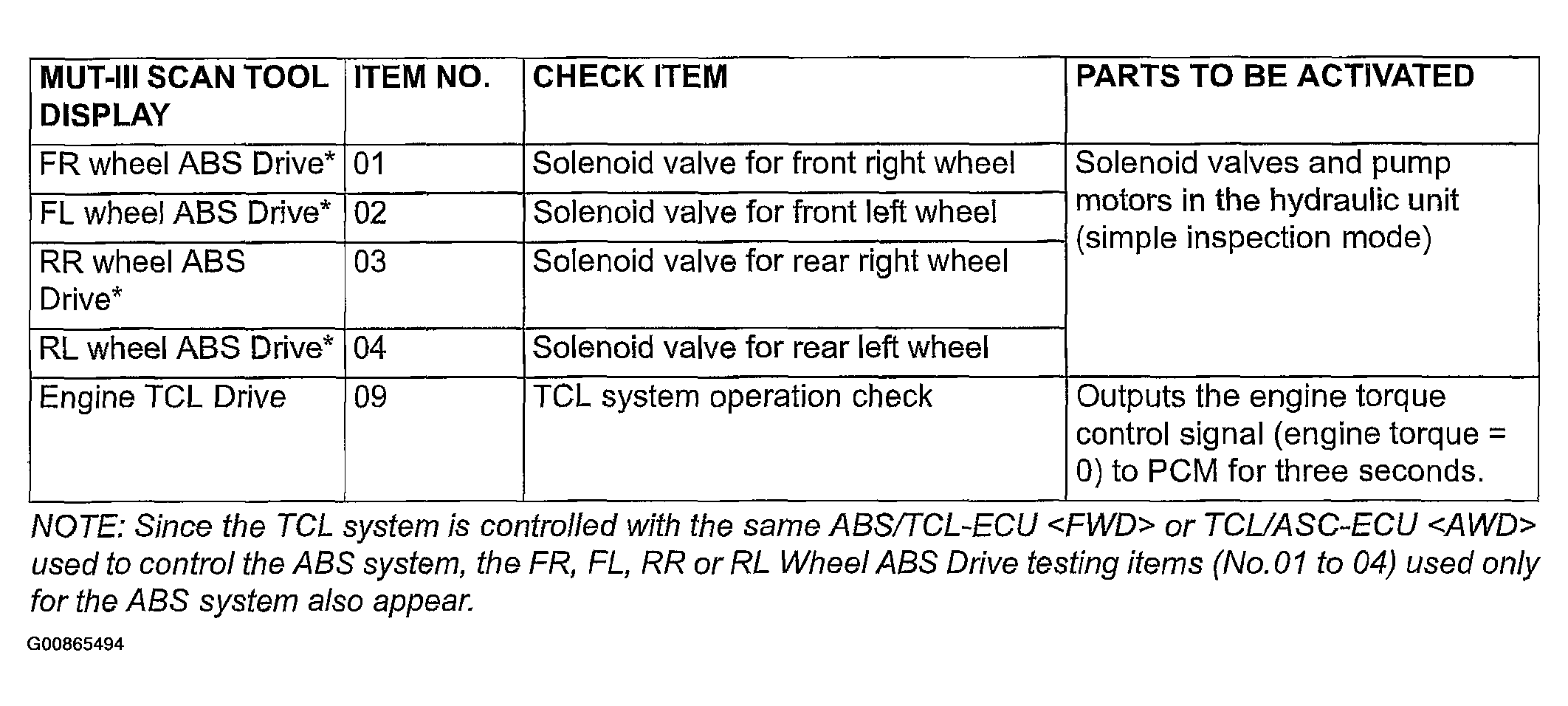

Fig 1: Actuator Test Reference Table

G00865494

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
