Endeavor LS, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Traction Control System (TCL)
>>
TCL Switch
>>
Removal And Installation
Removal And Installation

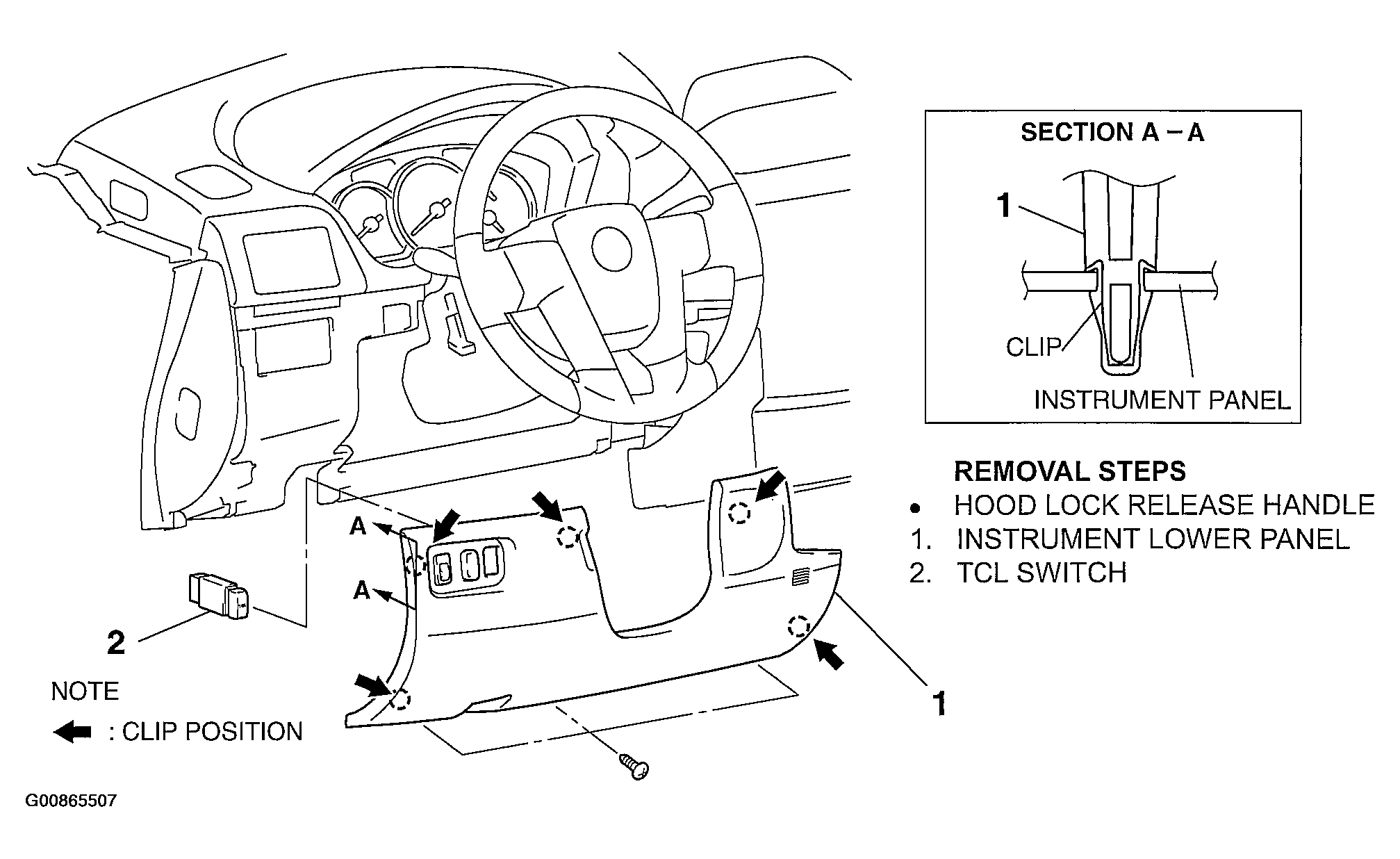

Fig 1: Removing & Installing TCL Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
