Home >> Mitsubishi >> 2004 >> Endeavor LS, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Fuel Supply >> Fuel Tank >> Removal And Installation >> Notes

Removal And Installation: Notes

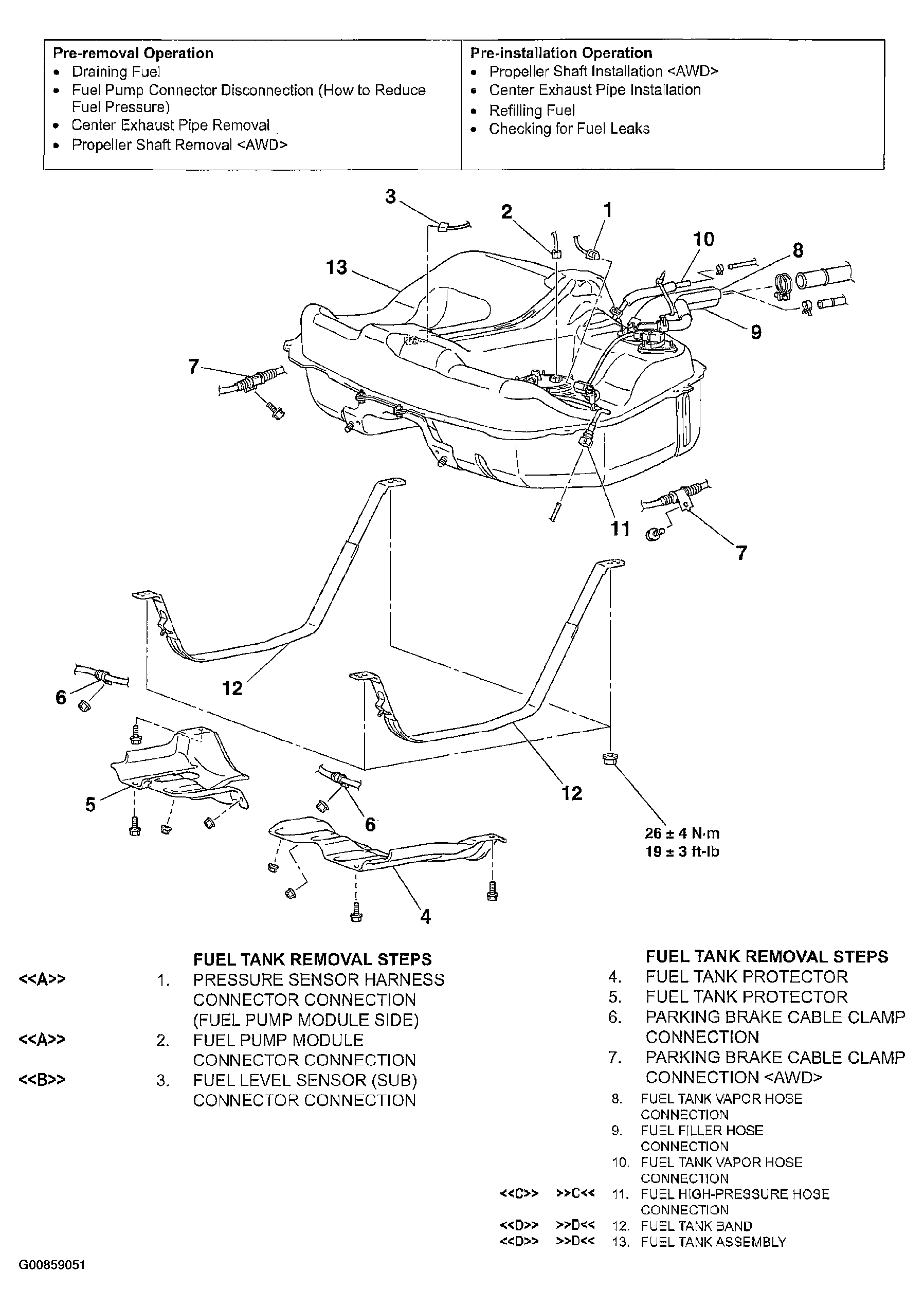

Fig 1: Removing And Installing Fuel Tank (1 Of 3)
G00859051Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

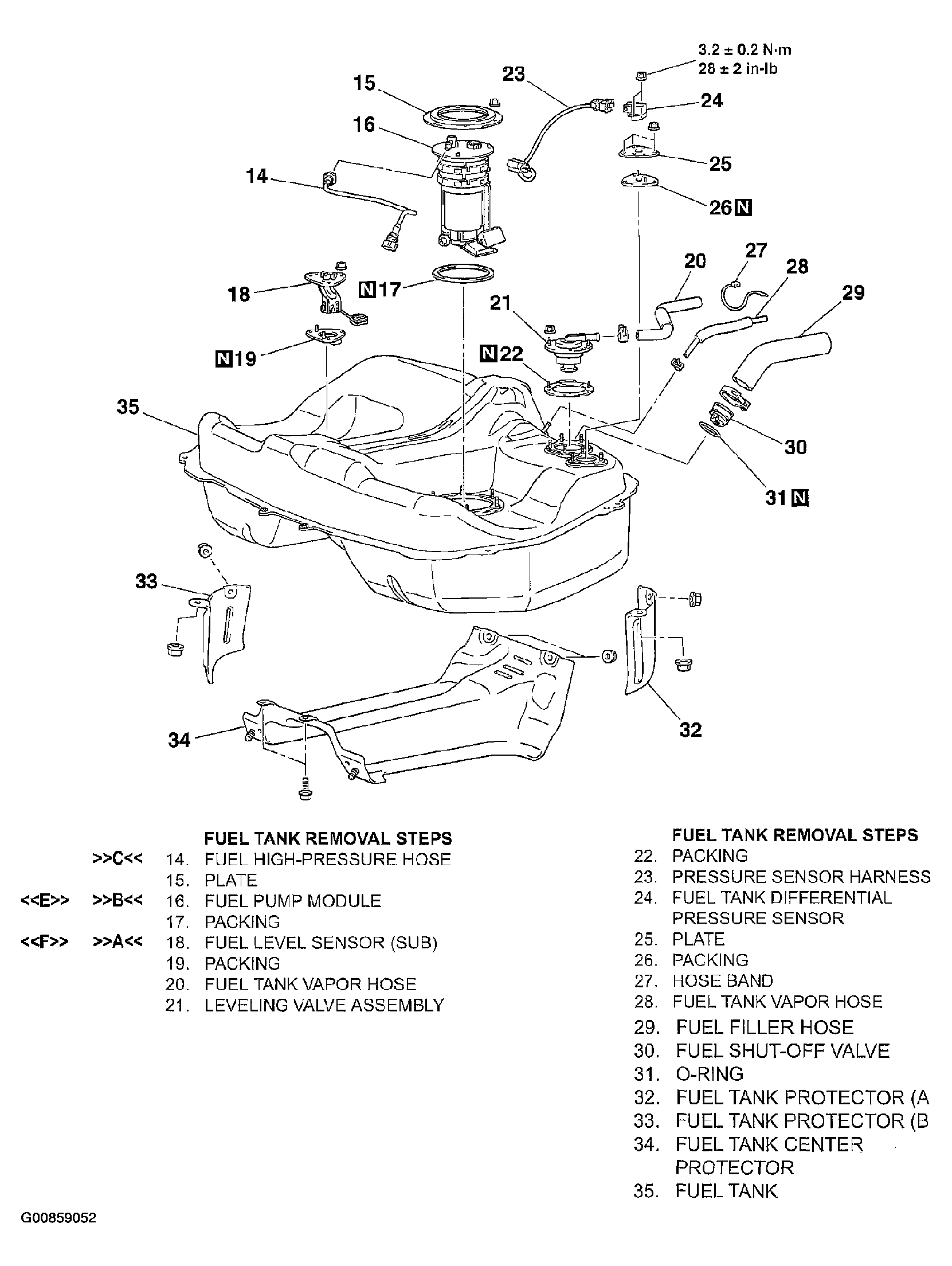

Fig 2: Removing And Installing Fuel Tank (2 Of 3)
G00859052Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

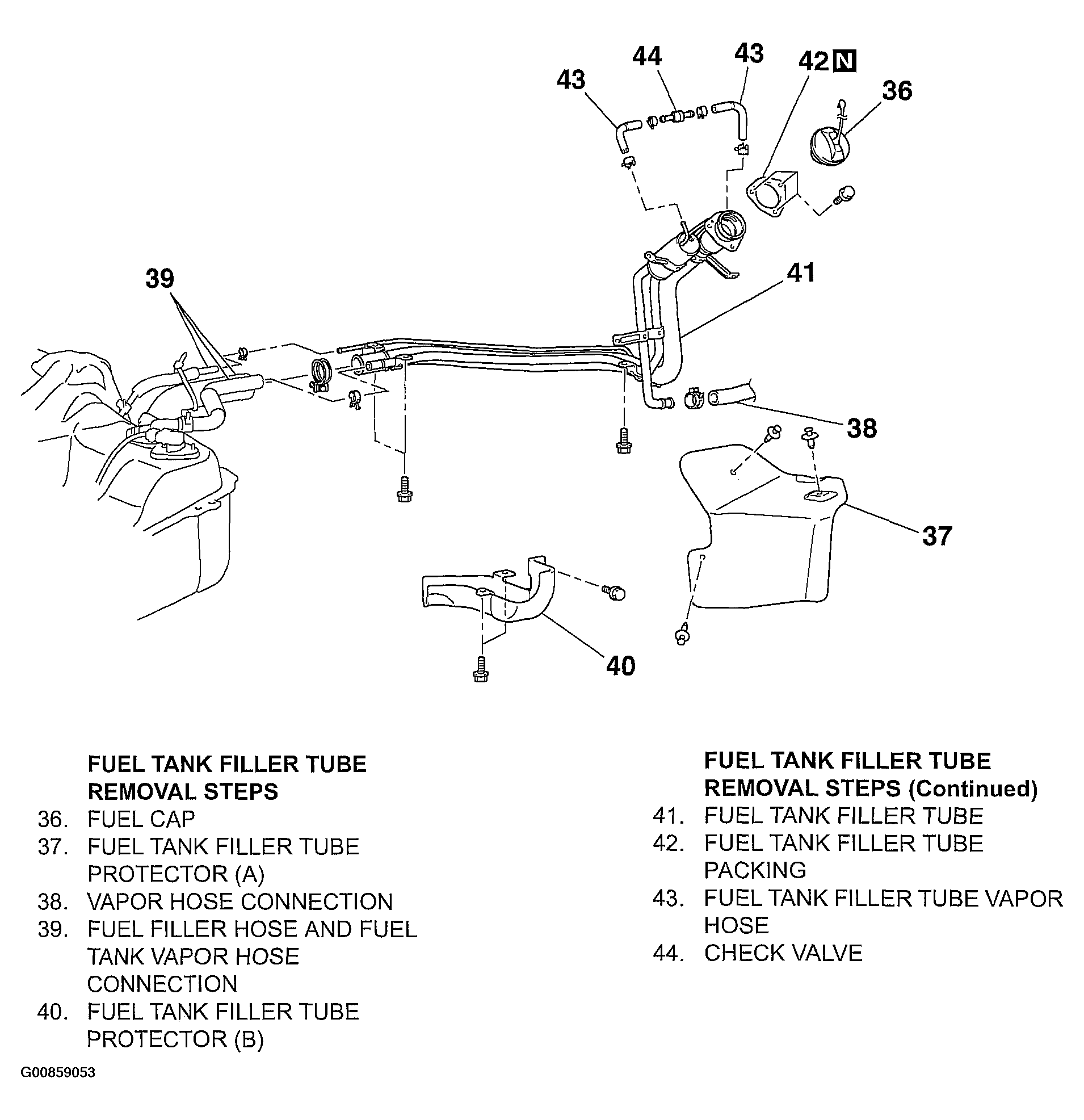

Fig 3: Removing And Installing Fuel Tank (3 Of 3)
G00859053Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
