Disassembly And Assembly: Disassembly

CAUTION:
  • Because the automatic transaxle is manufactured from high-precision parts, care must be taken not to scratch or damage these parts during disassembly and assembly.
  • Work or rubber mat and keep it clean at all times.
  • Do not wear any cloth gloves and do not use any shop towels during disassembly. Use only nylon cloth, paper towels or any other lint-free material.
  • Parts which have been disassembled should all be cleaned. Metal parts can be cleaned with normal detergent, but they should be dried completely using compressed air.
  • Clutch discs, plastic thrust plates and rubber parts should be cleaned with automatic transmission fluid (ATF).
  • If the transaxle body has been damaged, disassemble and clean the cooler system.

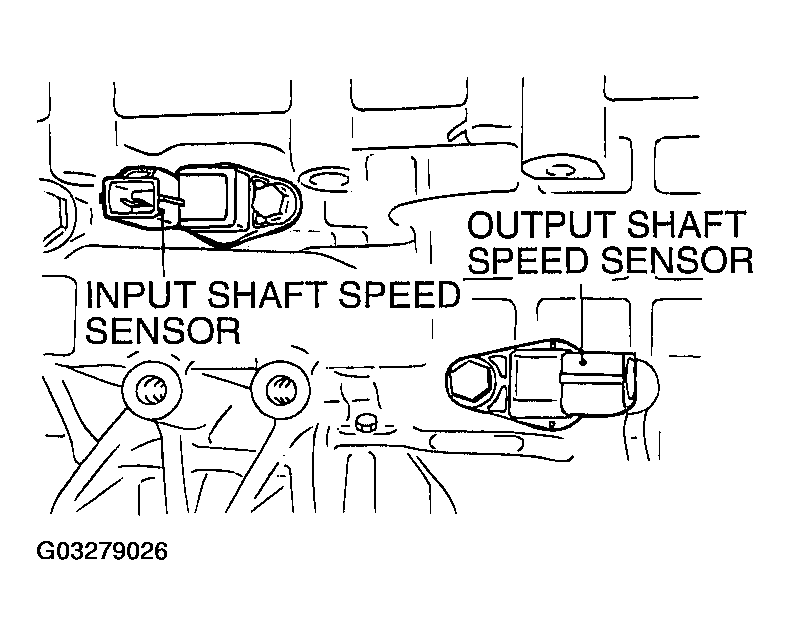

Fig 1: Identifying Output And Input Shaft Speed Sensors
G03279026Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Remove the torque converter.
  2. Remove each bracket.
  3. Remove the dipstick.
  4. Remove the eye bolt gauge, gaskets and the oil cooler feed tube.
  5. Remove the air breather
  6. Remove the input shaft speed sensor and output shaft speed sensor.

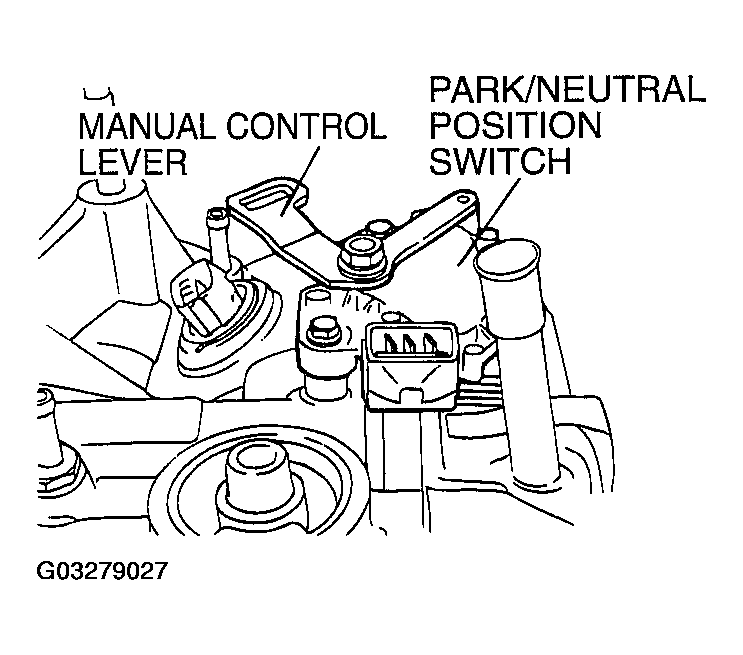

    Fig 2: Identifying Park/Neutral Position Switch And Manual Control Lever
    G03279027Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: The manual control lever tightening nut must be removed before removing the valve body. If the valve body is removed before the nut, the park/neutral position switch will be damaged.
  7. Loosen the manual control lever tightening nut, and then remove the manual control lever, and the park/neutral position switch.

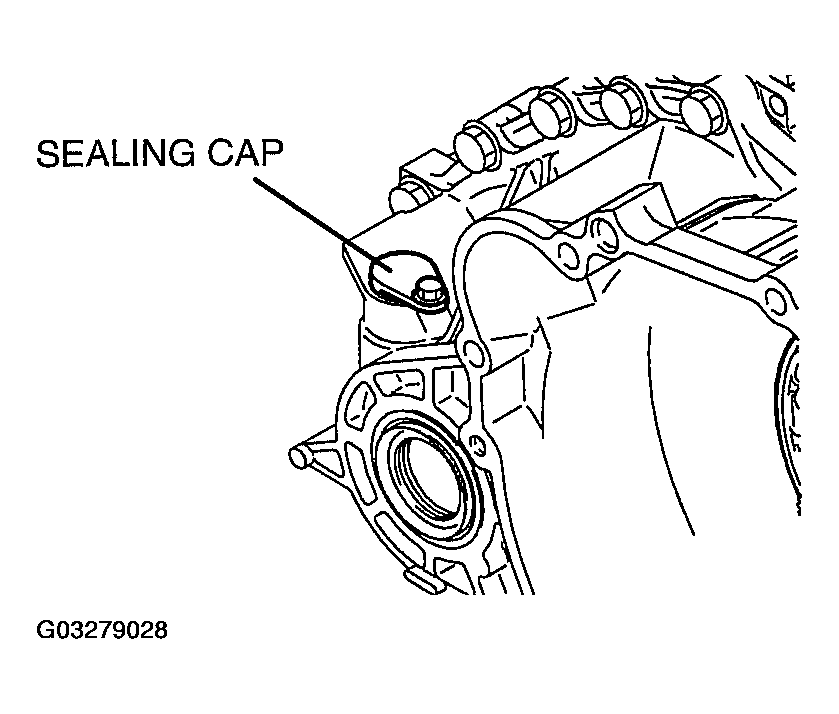

    8. Fig 3: Identifying Sealing Cap
    G03279028Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  8. Remove the Sealing cap and o-rig.

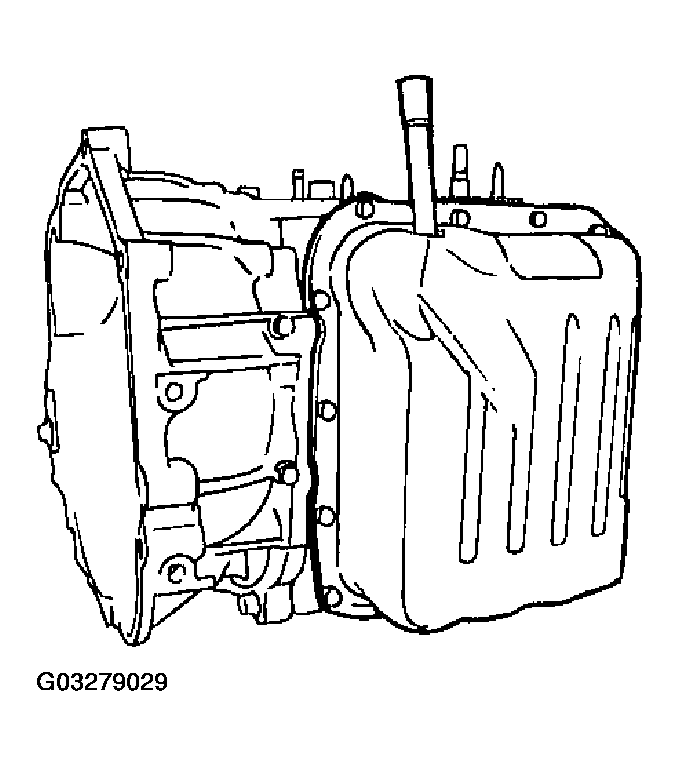

    9. Fig 4: Identifying Valve Body Cover
    G03279029Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  9. Remove the valve body cover.

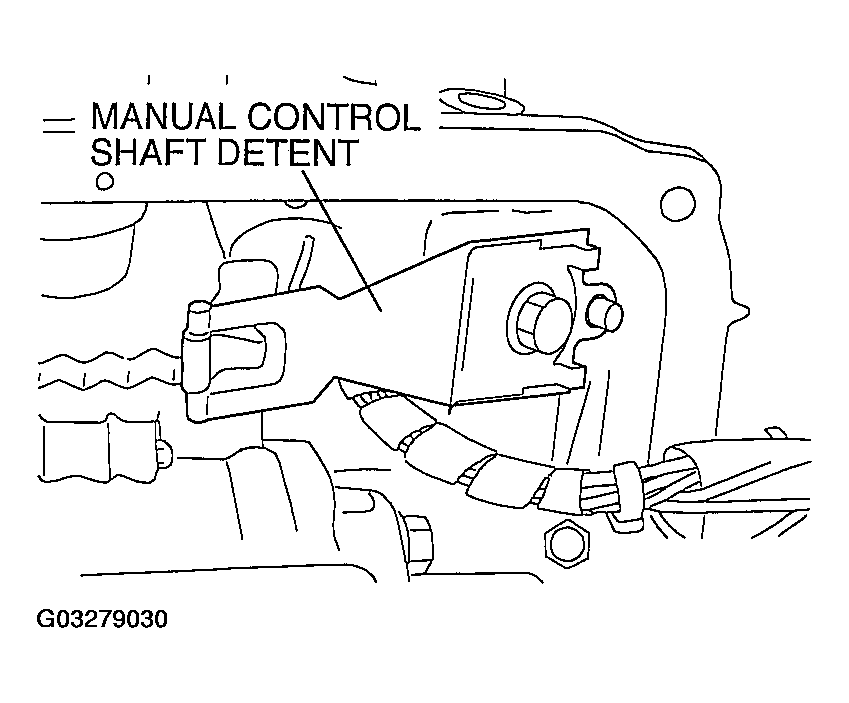

    10. Fig 5: Identifying Manual Control Shaft Detent
    G03279030Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  10. Remove the manual control shaft detent.

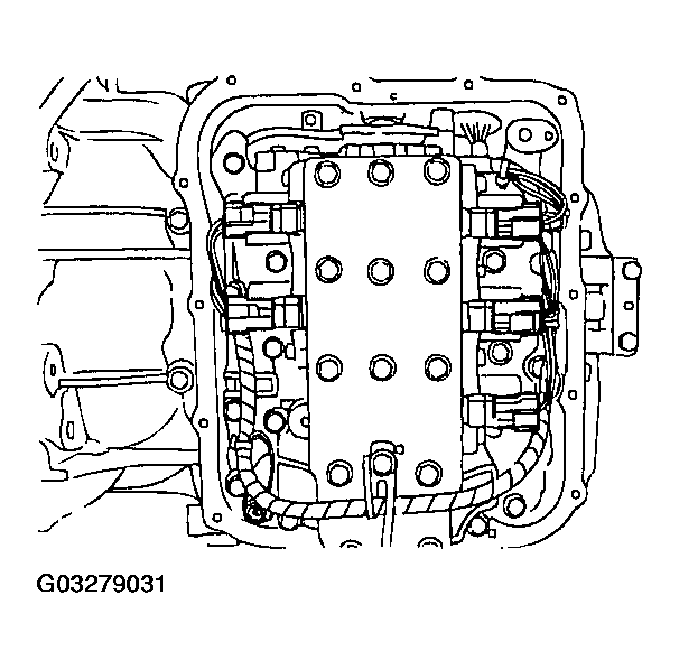

    11. Fig 6: Identifying Solenoid Valve Connectors
    G03279031Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  11. Disconnect the solenoid valve harness from the valve body by undoing the fluid temperature sensor and all the connectors.

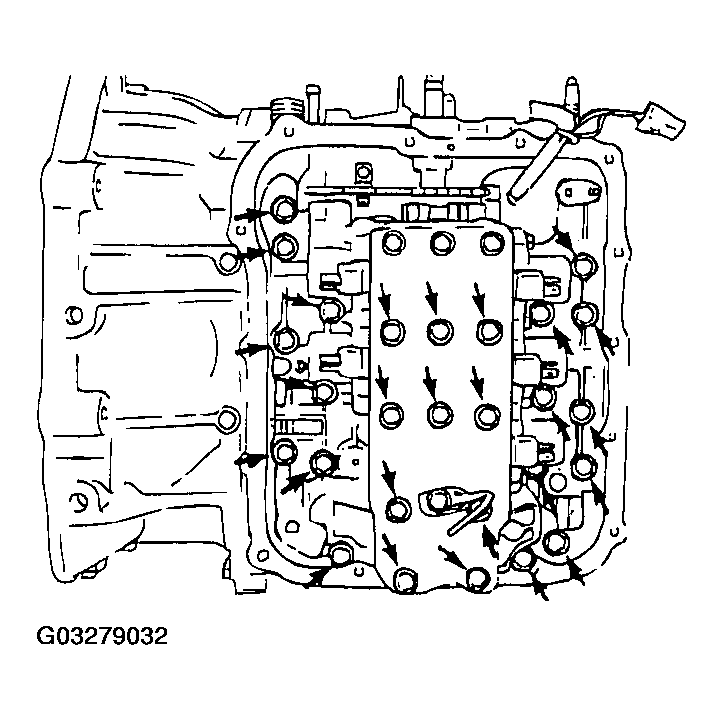

    Fig 7: Locating Valve Body Mounting Bolts
    G03279032Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Make sure that the manual control lever and the park/neutral position switch are removed. See step 8.
  12. Remove the valve body mounting bolts (27 pieces).

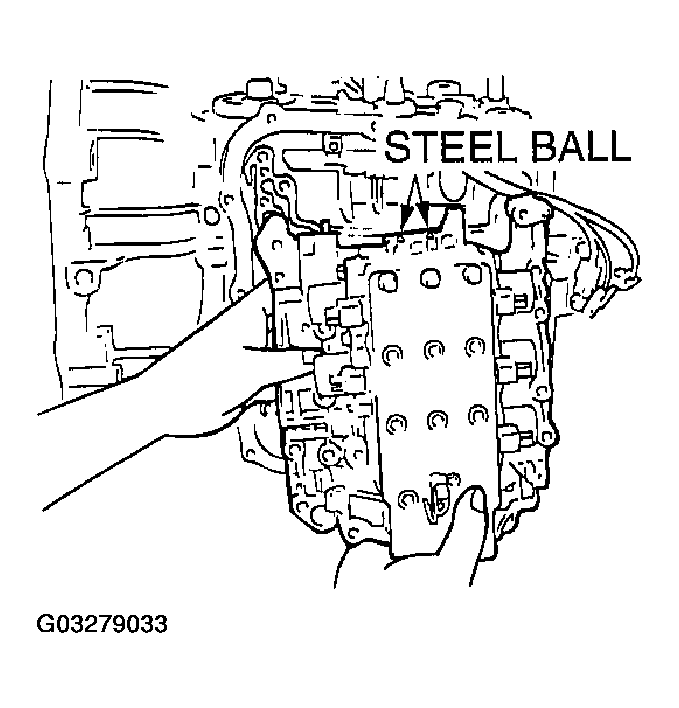

    Fig 8: Removing Valve Body, Gasket, And Steel Balls
    G03279033Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not lose the two steel balls.
  13. Remove the valve body, gasket, and the two steel balls.
    14. Fig 9: Removing Snap Ring From Connector
    G03279034Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  14. Remove the snap ring from the connector. Push the connector into the transaxle case and remove the solenoid valve harness.

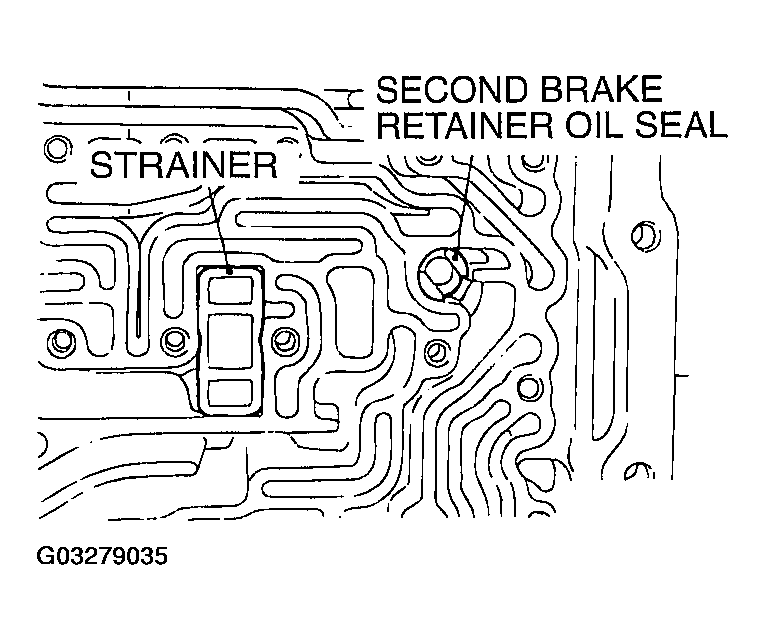

    15. Fig 10: Identifying Strainer And Second Brake Retainer Oil Seal
    G03279035Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  15. Remove the strainer and the second brake retainer oil seal.
    16. Fig 11: Identifying Accumulator Piston And Spring
    G03279036Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  16. Remove each accumulator piston and spring.

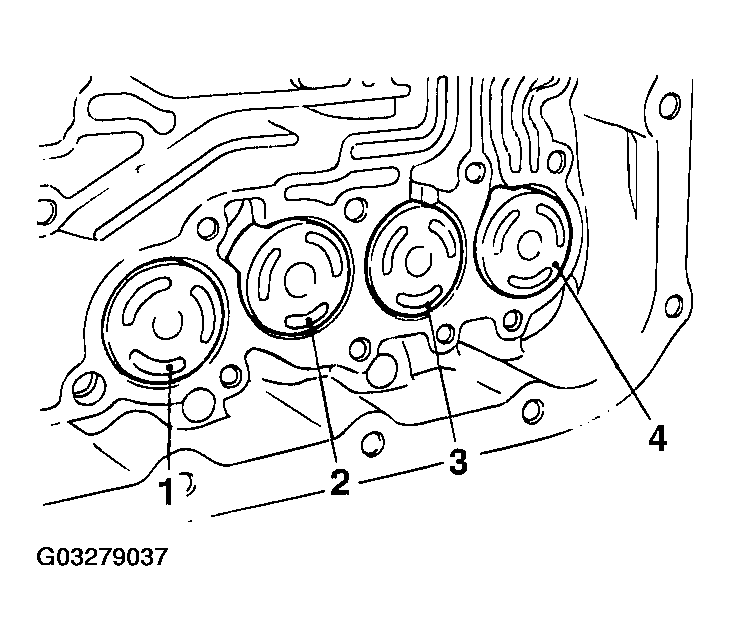

    Fig 12: Accumulator Piston And Spring Number Description
    G03279037Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

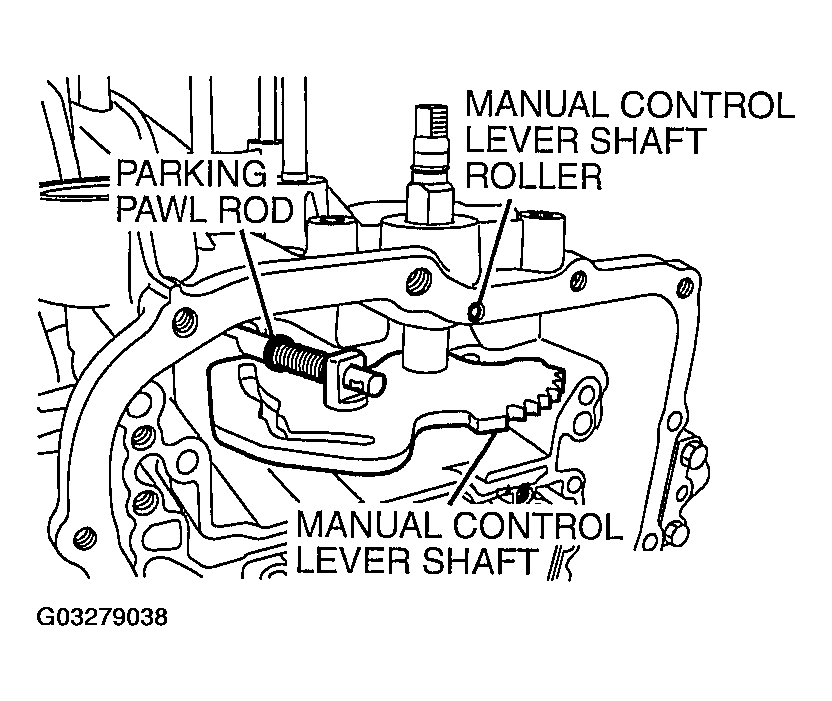

    17. Fig 13: Identifying Manual Control Lever Shaft Roller, Manual Control Lever Shaft And Parking Pawl Rod
    G03279038Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  17. Remove the manual control lever shaft roller.
  18. Remove the manual control lever shaft and the parking pawl rod.

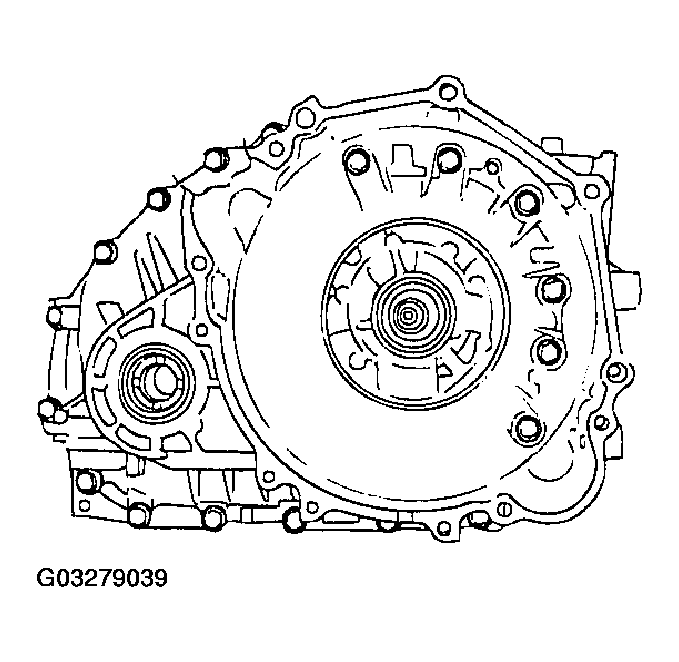

    19. Fig 14: Identifying Torque Converter Housing Mounting Bolts
    G03279039Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  19. Remove the torque converter housing mounting bolts (18 bolts), and then remove the torque converter housing.
  20. Remove the differential bearing outer race and spacer from the torque converter housing.

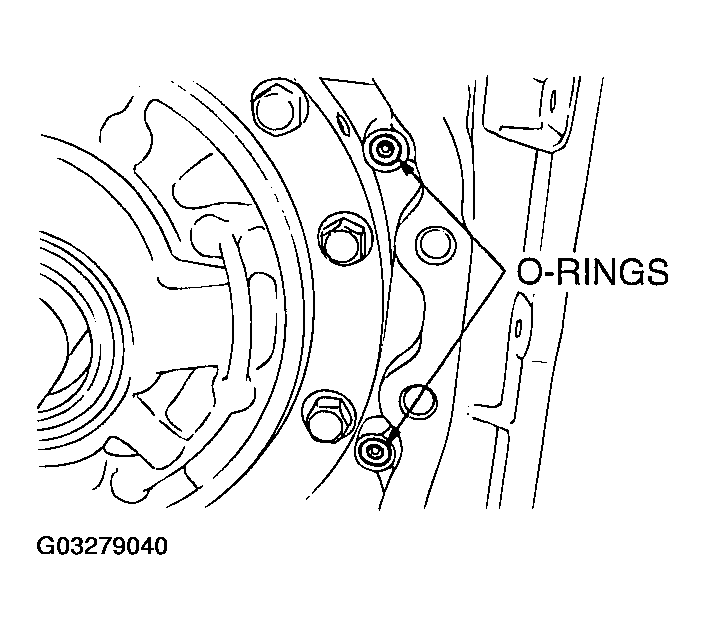

    21. Fig 15: Identifying O-Rings
    G03279040Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  21. Remove the O-rings (two pieces).
    22. Fig 16: Removing Differential
    G03279041Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  22. Remove the differential.
  23. Remove the differential bearing outer race from the transaxle case.
    24. Fig 17: Removing Oil Filter
    G03279042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  24. Remove the oil filter.

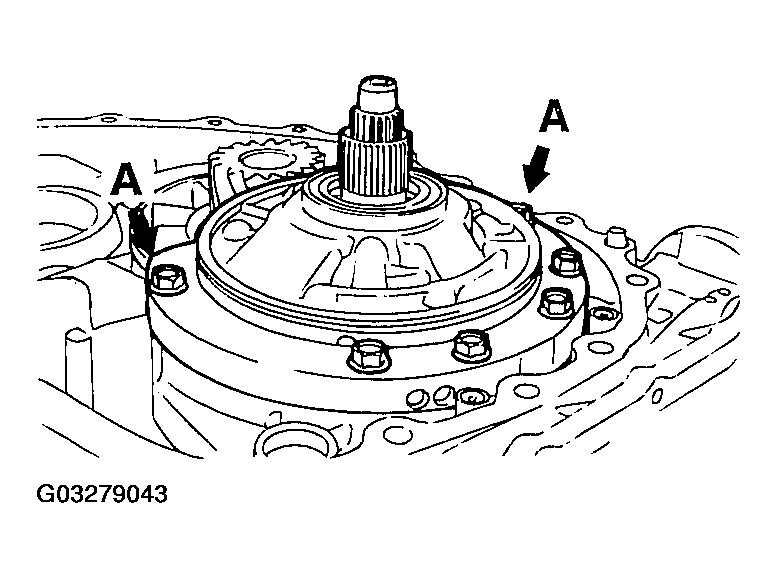

    25. Fig 18: Identifying Holes For Installing Special Tool
    G03279043Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  25. Remove the oil pump mounting bolts (six bolts).
  26. Install special tool MD998333 in hole "A."

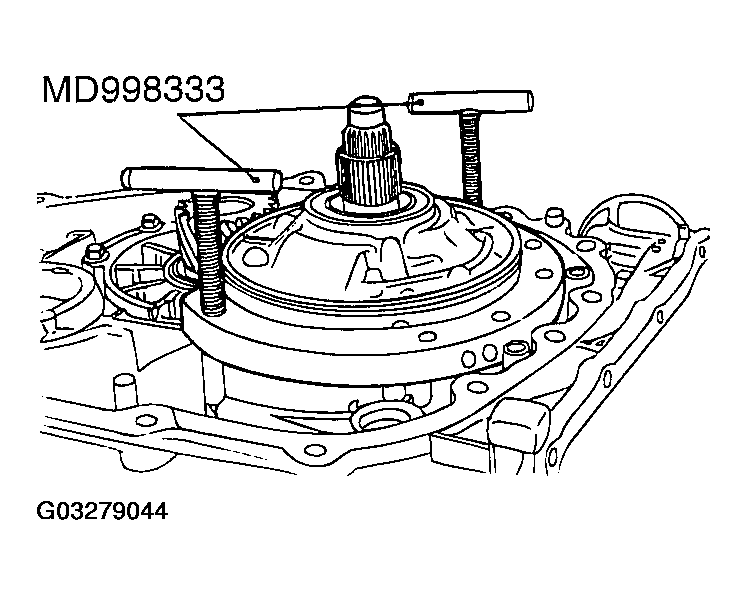

    27. Fig 19: Removing Oil Pump Gasket
    G03279044Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  27. Turn. special tools MD998333 to remove the oil pump.
  28. Remove the oil pump gasket.
    29. Fig 20: Removing Thrust Washer Number 1
    G03279045Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  29. Remove thrust washer number 1.
    30. Fig 21: Removing Underdrive Clutch And Input Shaft
    G03279046Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  30. Holding the input shaft, remove the underdrive clutch and input shaft.
    31. Fig 22: Removing Thrust Bearing Number 2
    G03279047Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  31. Remove thrust bearing number 2.
    32. Fig 23: Removing Underdrive Clutch Hub
    G03279048Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  32. Remove the underdrive clutch hub.

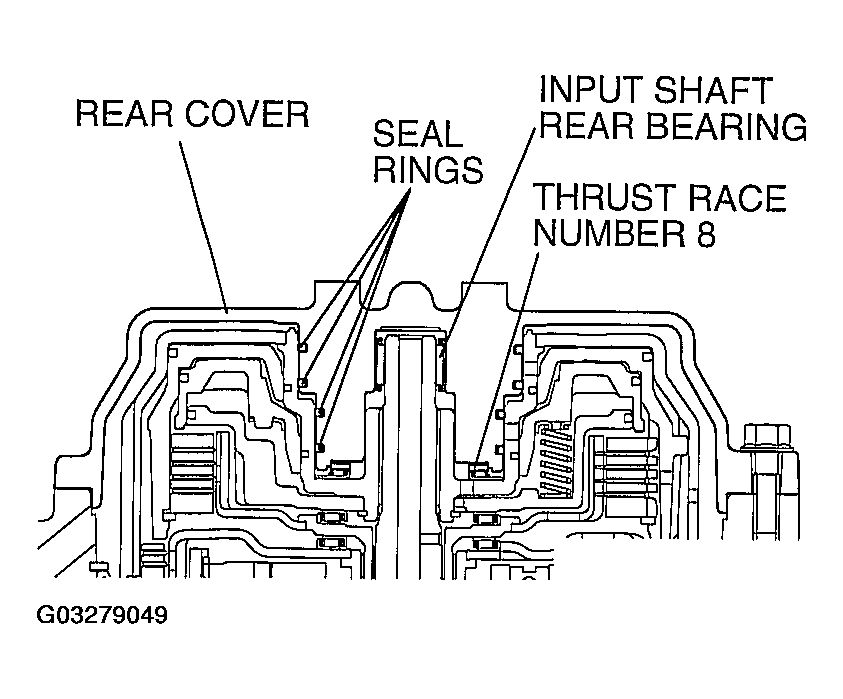

    33. Fig 24: Identifying Rear Cover And Input Shaft Rear Bearing, Thrust Race Number 8 And Seal Rings
    G03279049Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  33. Remove the rear cover and input shaft rear bearing.
  34. Remove thrust race number 8.
  35. Remove the seal rings (four pieces).

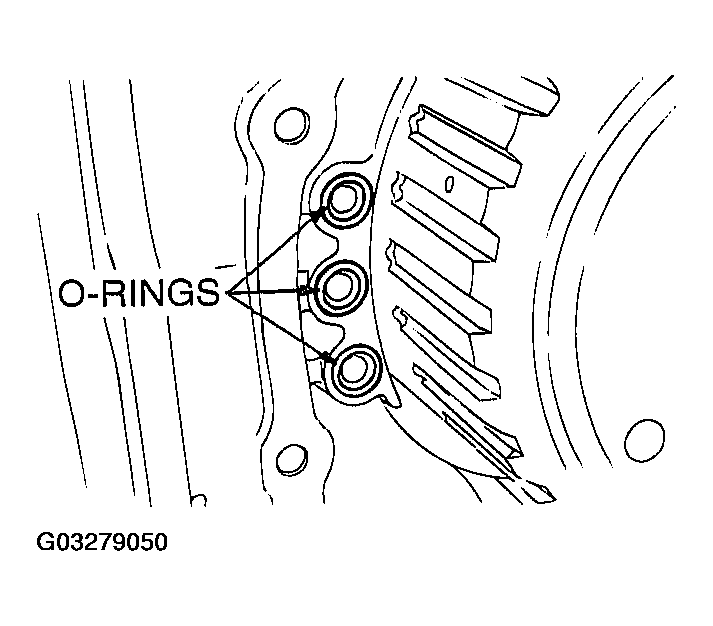

    36. Fig 25: Removing O-Rings
    G03279050Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  36. Remove the O-rings (three pieces).
    37. Fig 26: Removing Reverse And Overdrive Clutch And Thrust Bearing Number 7
    G03279051Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  37. Remove the reverse and overdrive clutch and thrust bearing number 7.

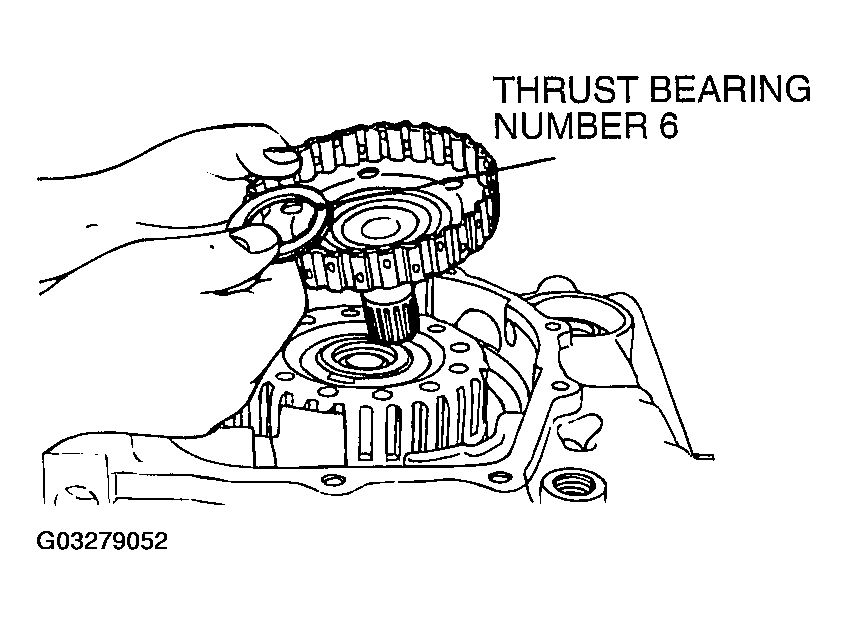

    38. Fig 27: Removing Overdrive Clutch Hub And Thrust Bearing Number 6
    G03279052Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  38. Remove overdrive clutch hub and thrust bearing number 6.

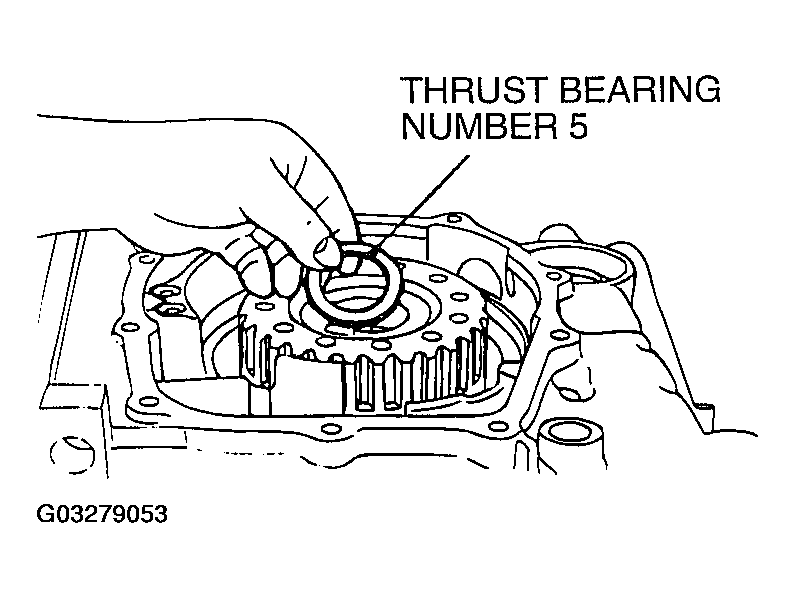

    39. Fig 28: Removing Thrust Bearing Number 5
    G03279053Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  39. Remove thrust bearing number 5.
    40. Fig 29: Removing Planetary Reverse Sun Gear
    G03279054Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  40. Remove the planetary reverse sun gear.
    41. Fig 30: Removing Snap Ring
    G03279055Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  41. Remove the snap ring.
    42. Fig 31: Removing Second Brake Piston And Return Spring
    G03279056Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  42. Remove the second brake piston and the return spring.
    43. Fig 32: Removing Pressure Plate, Brake Discs And Brake Plate
    G03279057Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  43. Remove the pressure plate, brake discs and brake plate.

    Number of brake discs and plates:

    Fig 33: Brake Discs And Plates Number Chart
    G03279058Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    44. Fig 34: Removing Planetary Carrier Assembly
    G03279059Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  44. Remove the planetary carrier assembly.
    45. Fig 35: Removing Snap Ring
    G03279060Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  45. Remove the snap ring.
    46. Fig 36: Removing Reaction Plate And The Brake Disc
    G03279061Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  46. Remove the reaction plate and the brake disc.
    47. Fig 37: Removing Snap Ring
    G03279062Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  47. Remove the snap ring.
    48. Fig 38: Removing Brake Plates, Brake Discs And Pressure Plate
    G03279063Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  48. Remove the brake plates (five pieces), brake discs (six pieces) and pressure plate.
    49. Fig 39: Removing Wave Spring
    G03279064Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  49. Remove the wave spring.
    50. Fig 40: Removing Parking Pawl Shaft
    G03279065Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  50. Remove the parking pawl shaft, and then remove the spacer and spring.
    51. Fig 41: Removing Parking Roller Support Shafts
    G03279066Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  51. Remove the two parking roller support shafts, and then remove the parking roller support.

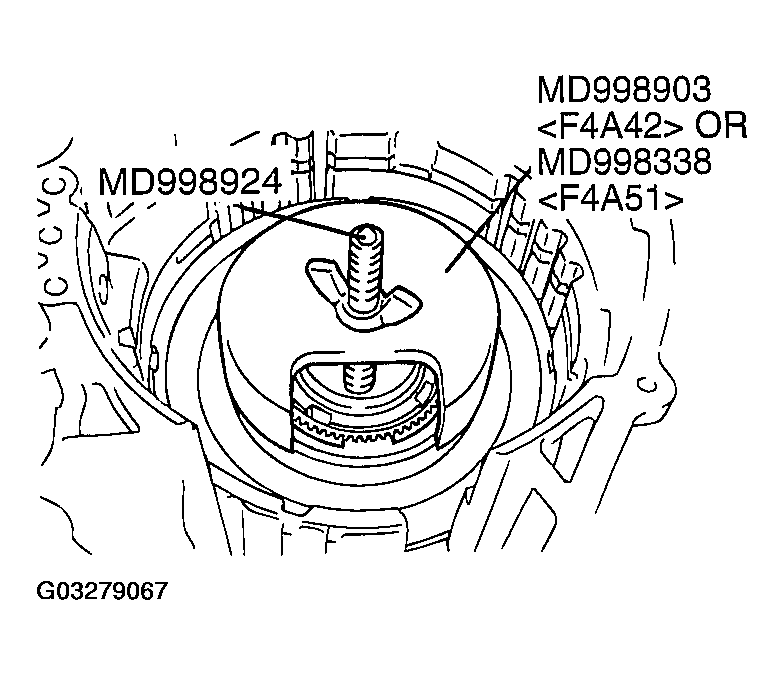

    52. Fig 42: Removing One-Way Clutch Inner Race And Low-Reverse Brake Piston
    G03279067Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  52. Remove the one-way clutch inner race and low-reverse brake piston as follows:
    1. Using special tools MD998903 < F4A42> or MD998338 < F4A51> and MD998924, compress the one-way clutch inner race.
      NOTE: This illustration shows F4A51.
    2. Remove the snap ring.
    3. Remove the special tools.
    4. Remove the one-way clutch inner race, O-ring, spring retainer, return spring and low-reverse brake piston.

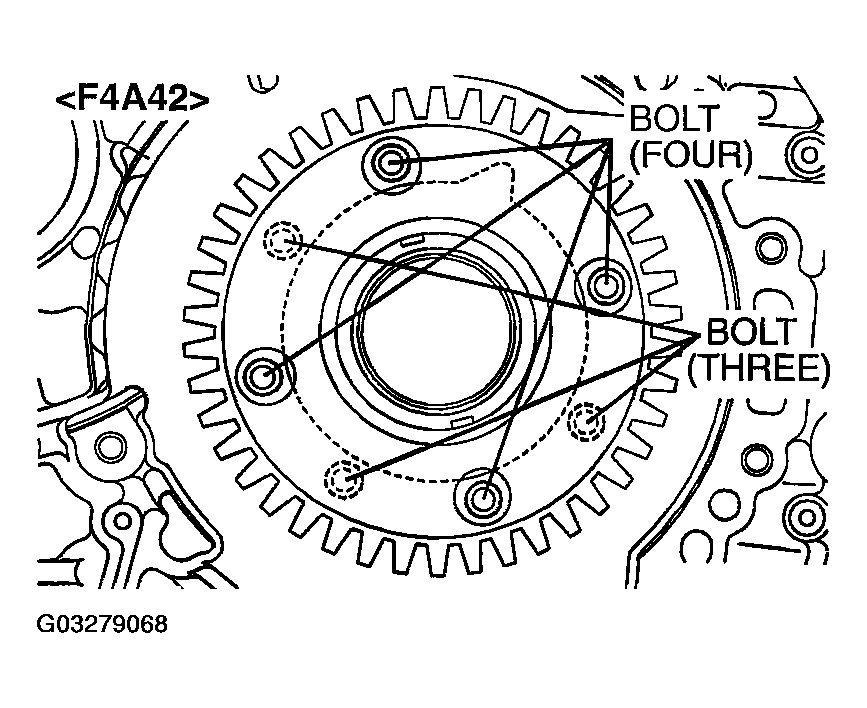

    53. Fig 43: Identifying Transfer Drive Gear Bearing Mounting Bolts (F4A42)
    G03279068Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  53. Remove the four < F4A51> or three < F4A42> transfer drive gear bearing mounting bolts.

    Then, turn the gear 1/8 turn (45 degree angle) and remove the remaining bolts.

    F4A42 = seven mounting bolts

    F4A51 = eight mounting bolts

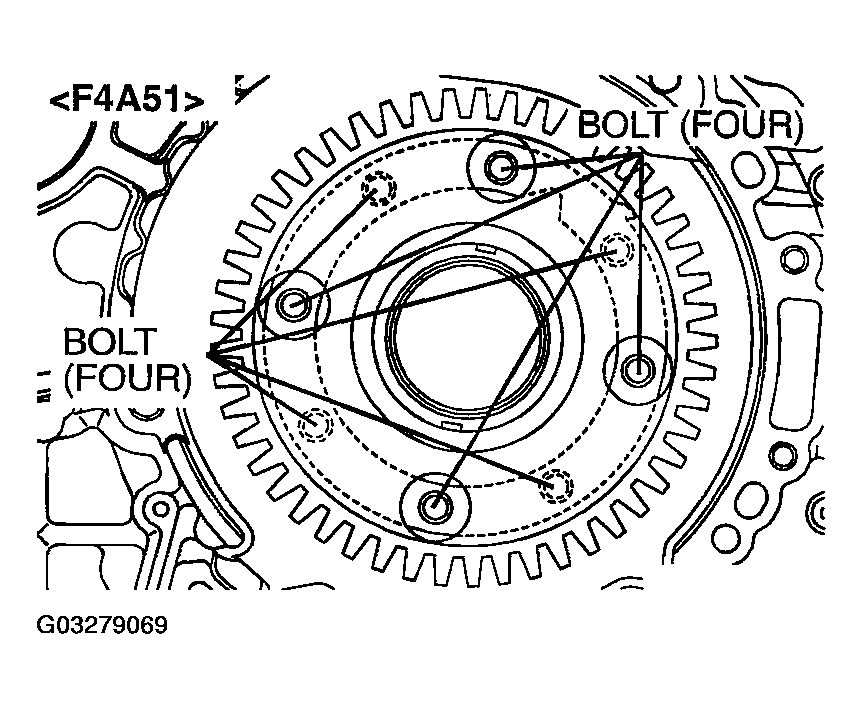

    54. Fig 44: Identifying Transfer Drive Gear Bearing Mounting Bolts (F4A51)
    G03279069Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

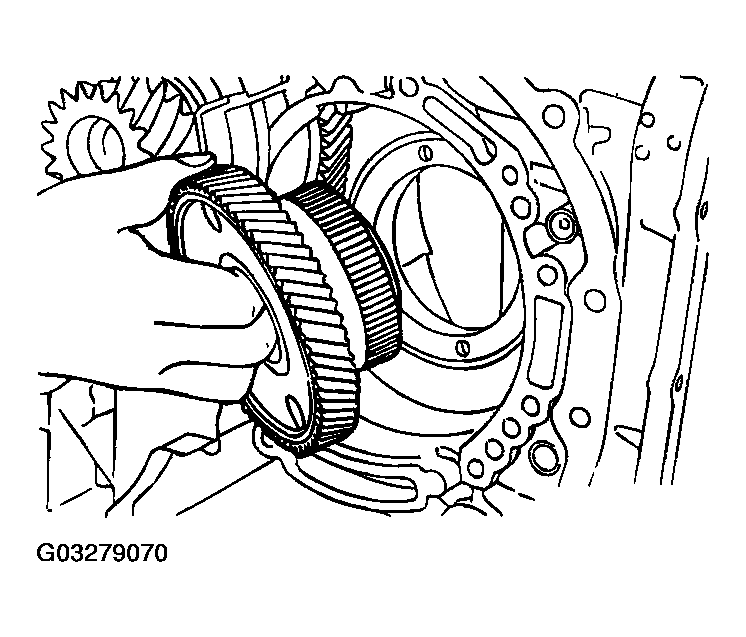

    Fig 45: Removing Transfer Drive Gear
    G03279070Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  54. Remove the transfer drive gear.
    55. Fig 46: Removing Cap
    G03279071Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  55. Remove the cap by jabbing a screw driver into the center of the cap and prying it up.

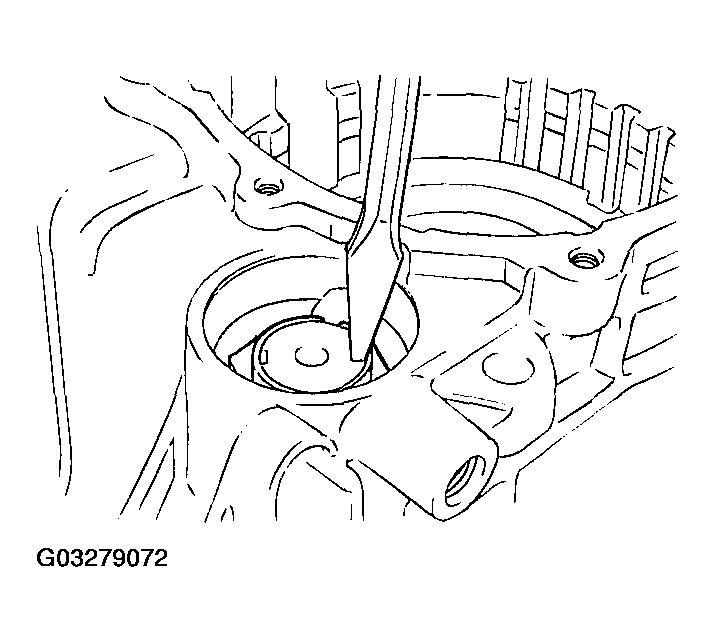

    56. Fig 47: Straightening Staked Portions Of Output Shaft Nut
    G03279072Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  56. Using a chisel, straighten the staked portions from the output shaft nut.
    CAUTION: The jam nut is reverse threaded.

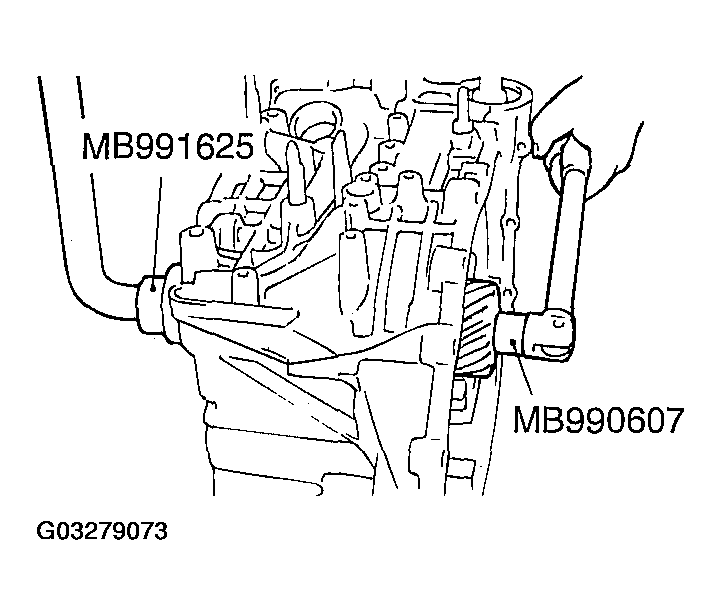

    57. Fig 48: Removing Output Shaft Jam Nut
    G03279073Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  57. Use special tools MB991625 and MB990607 to remove the output shaft jam nut.
    58. Fig 49: Removing Bearing Retainer Mounting Bolt
    G03279074Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  58. Remove the bearing retainer mounting bolt.
    59. Fig 50: Removing Output Shaft, Taper Roller Bearing And Collar
    G03279075Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  59. Tap on the rear end of the output shaft to remove the output shaft, taper roller bearing and collar.

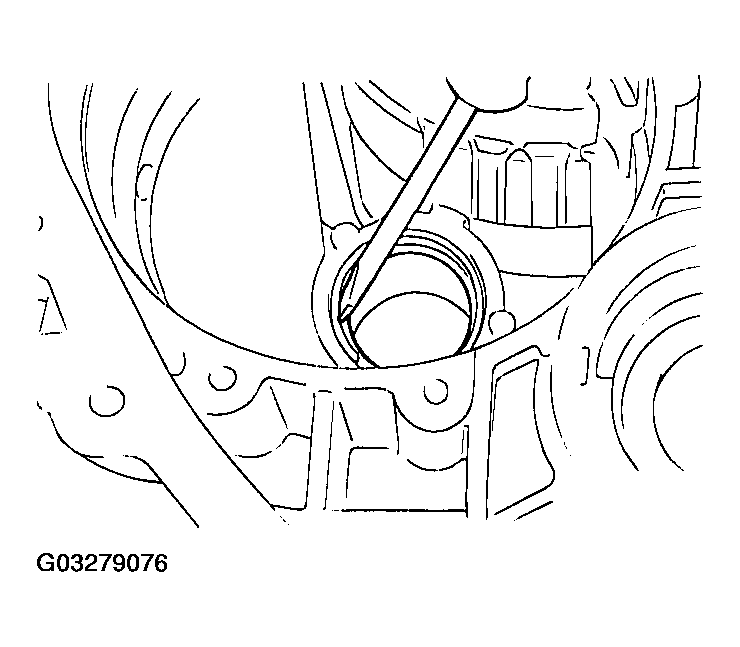

    60. Fig 51: Removing Snap Ring
    G03279076Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  60. Tap out the outer race and the spacer.
  61. Remove the snap ring.
