Valve Body Spring Identification Table

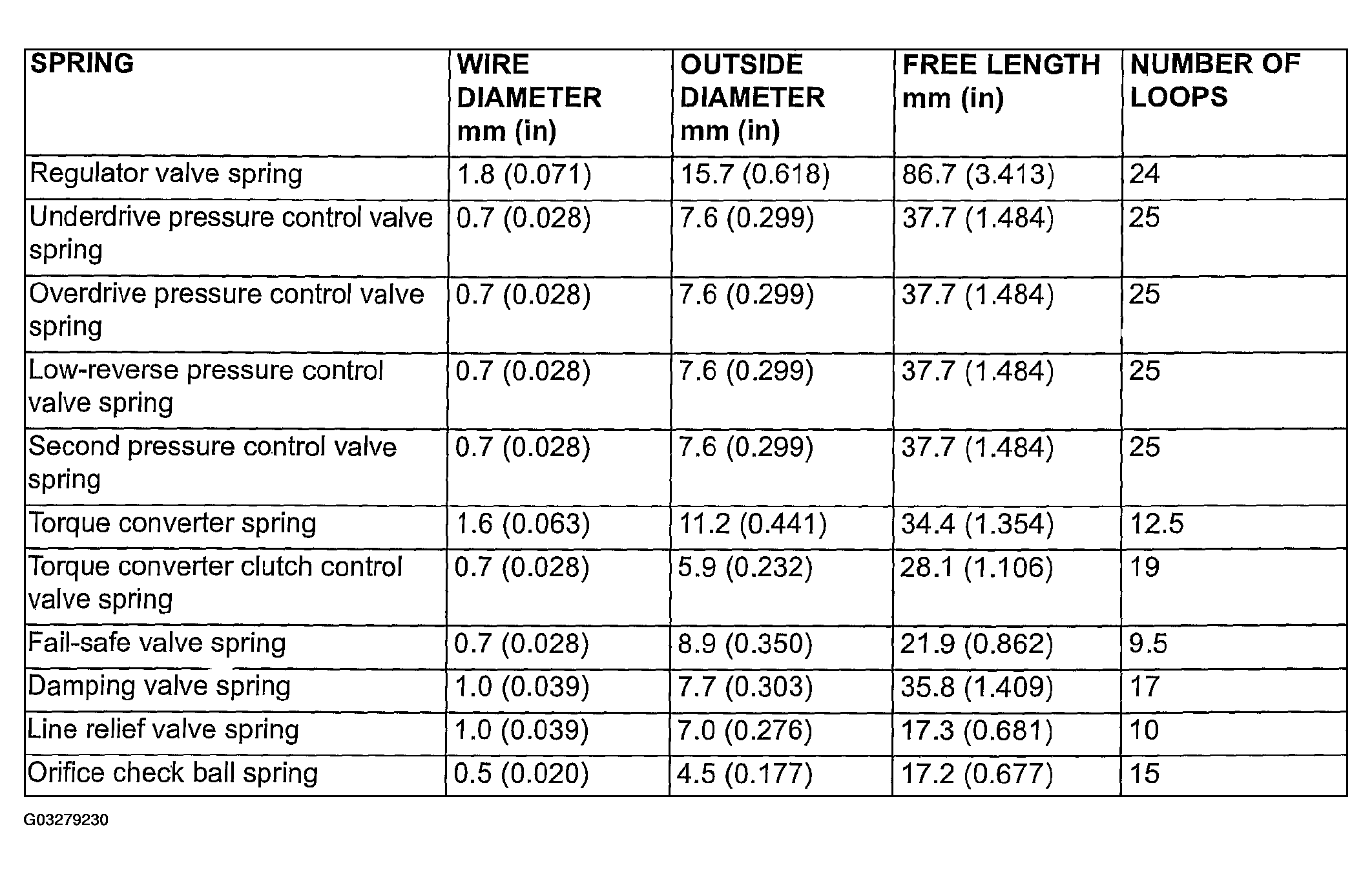

Fig 1: Valve Body Spring Identification Chart

G03279230

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
