Disassembly And Assembly: Notes

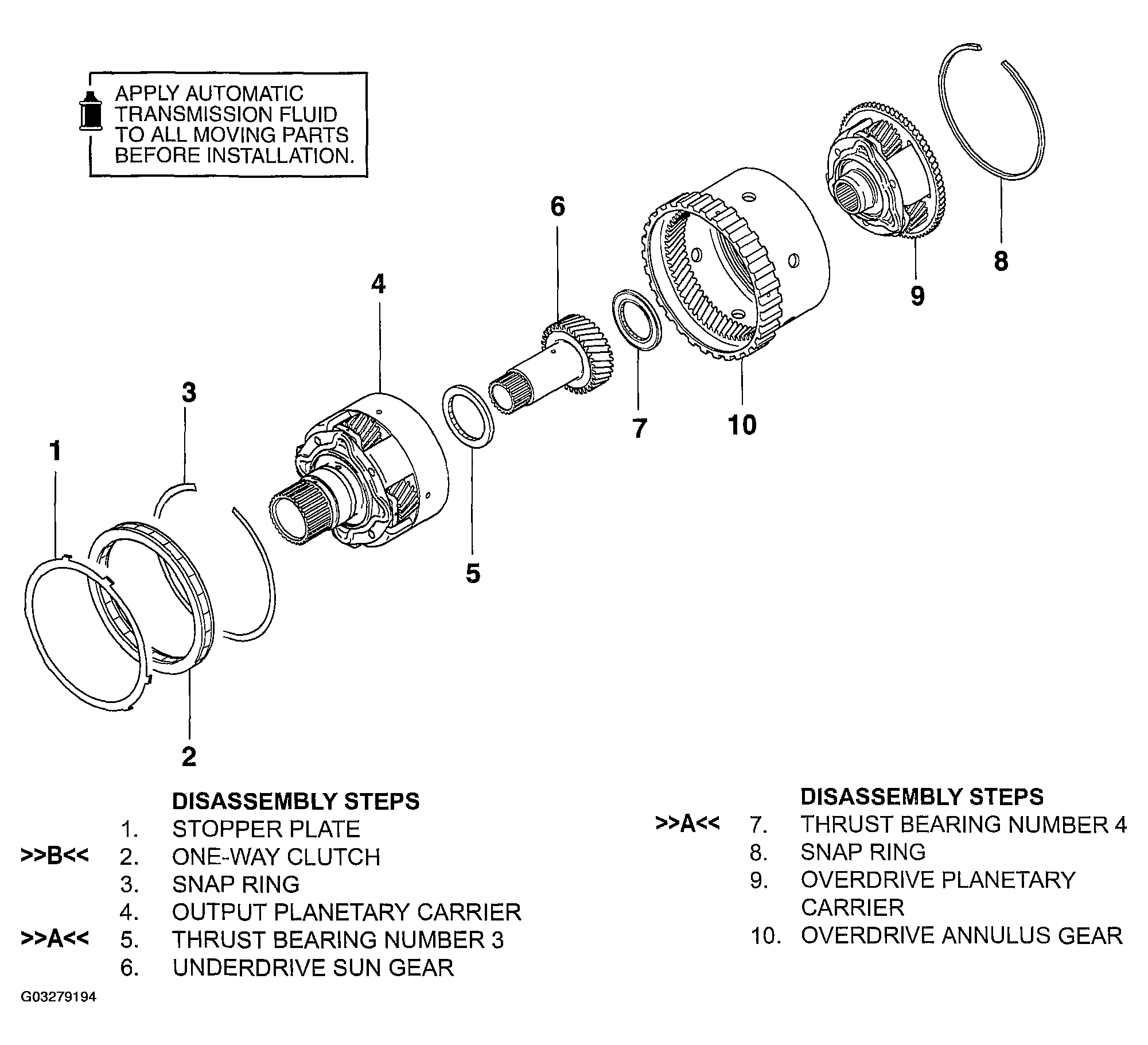

Fig 1: Disassembly And Assembly Of Planetary Gear

G03279194

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
