< 3.0L Engine (Vehicles With Variable Induction System) > Downshift Pattern

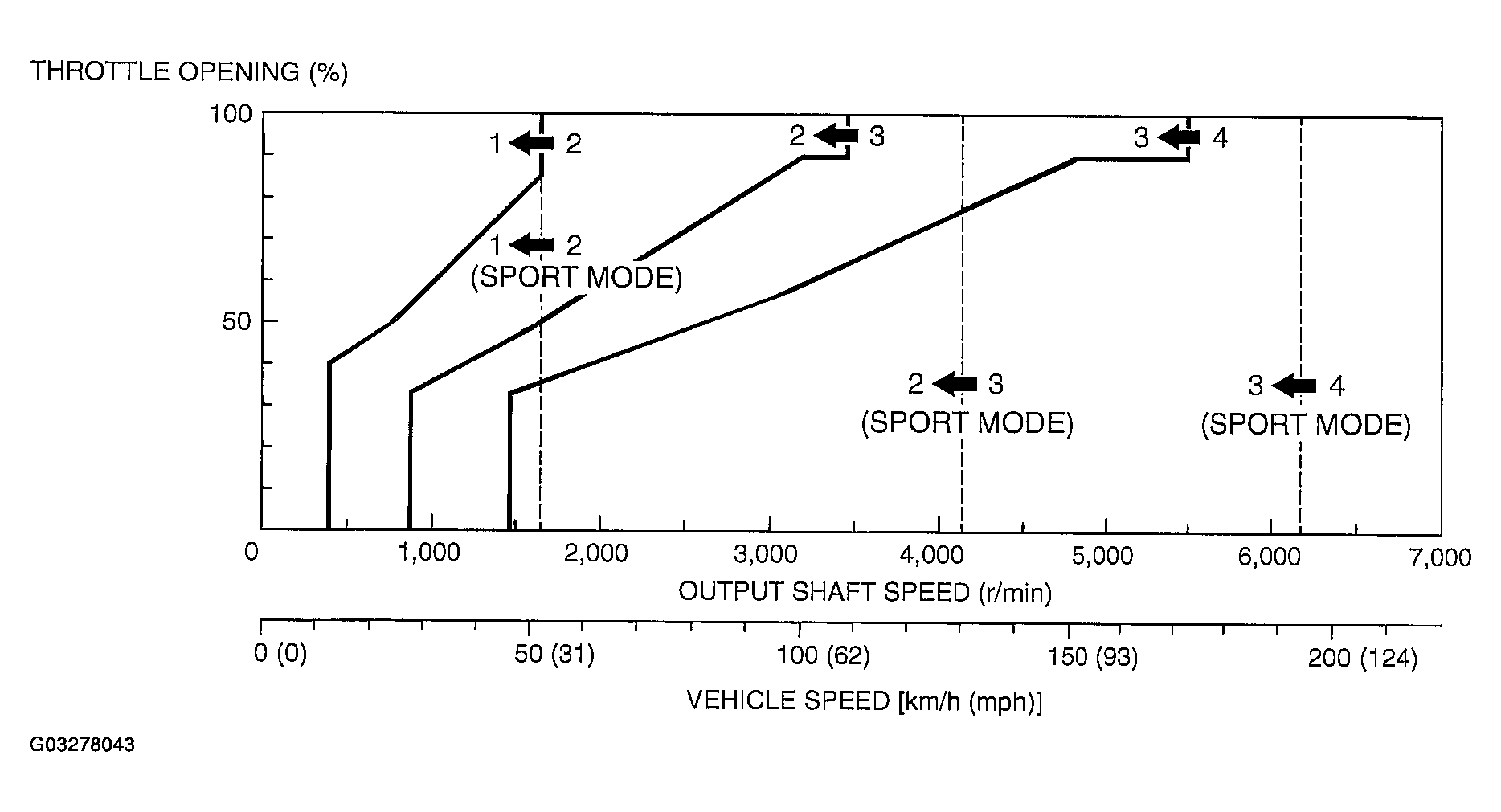

Fig 1: Shift Pattern Control - 3.0L Engine (Vehicles With Variable Induction System) Downshift Pattern
G03278043Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
