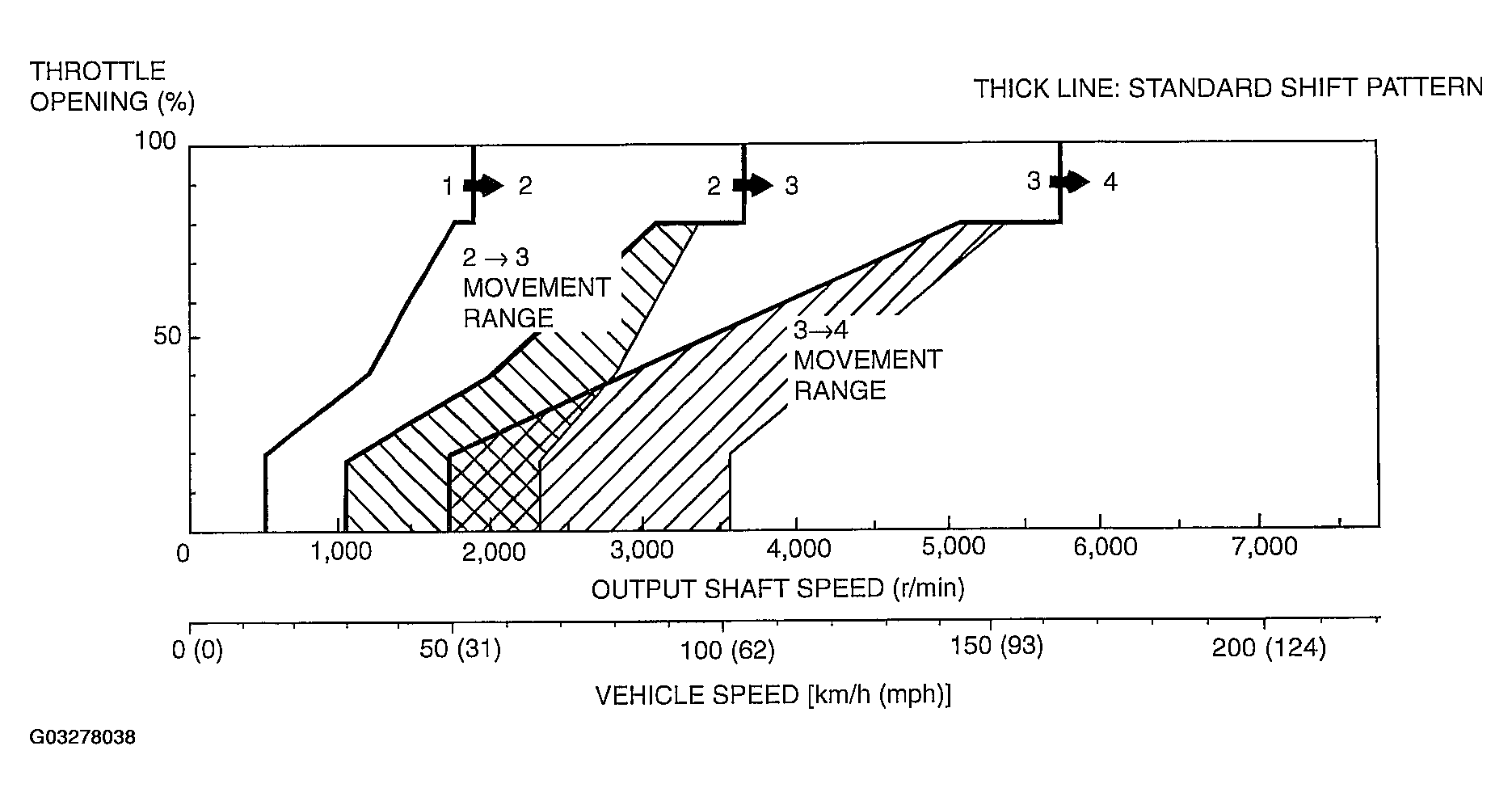

< 2.4L Engine> Upshift Pattern

Fig 1: Shift Pattern Control - (2.4L Engine) Downshift Pattern

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Within 2 -to- 3 and 3 -to- 4 movement ranges, the PCM adjusts shin points according to the driving conditions by memorizing the accelerator pedal stroke and braking timing.
