>>J<< Thrust Plate Installation

  1. Install the thickest thrust plates that can be fitted in the groove of input shaft. Install the thrust plate so the surface stamped with the identification mark is facing up.
  2. Make sure that the 5th speed gear end play meets the standard value.

    Standard value: 0 - 0.09 mm (0 - 0.0035 inch)

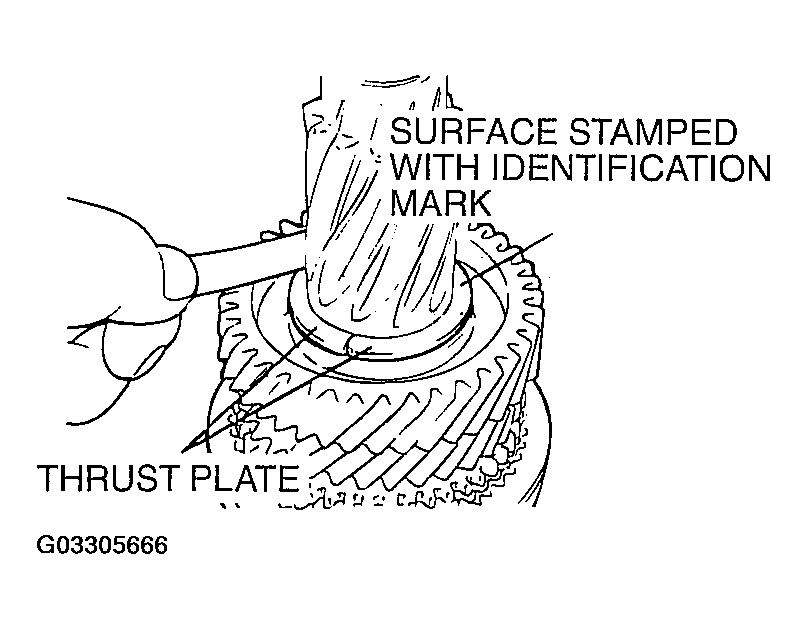

    Fig 1: Checking 5Th Speed Gear End Play
    G03305666Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
