Home >> Mitsubishi >> 2004 >> Eclipse RS, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle Overhaul >> Control Housing >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

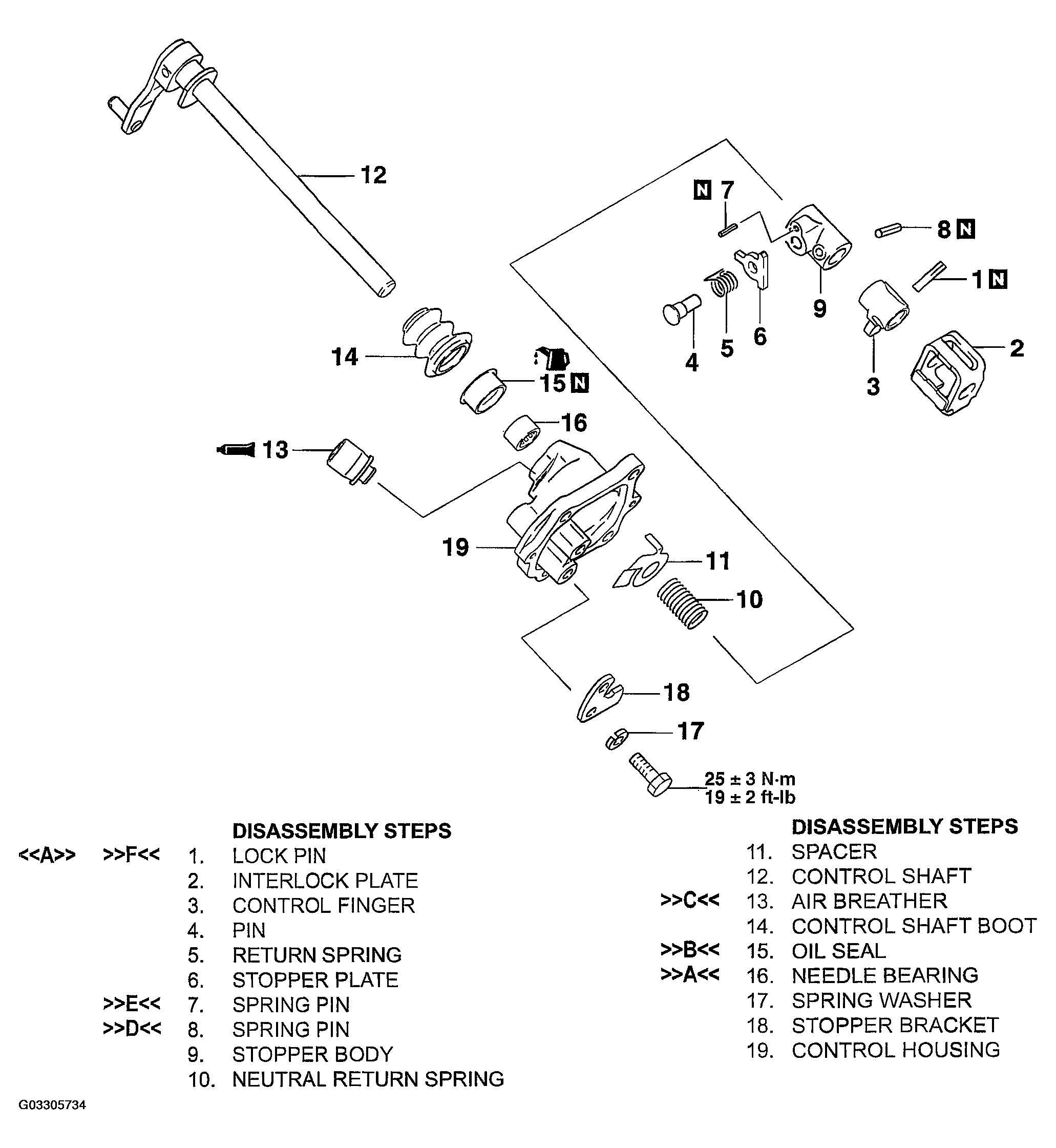

Fig 1: Exploded View Of Control Housing

G03305734

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
