Removal And Installation: Notes

CAUTION: For vehicles with ABS, be careful when handling the projection at the tip of the speed sensor so as not to damage it by striking against other parts.

Post-installation Operation

Press Dust Cover with a Finger to Check for Crack or Damage in Ball Joint Dust Cover.

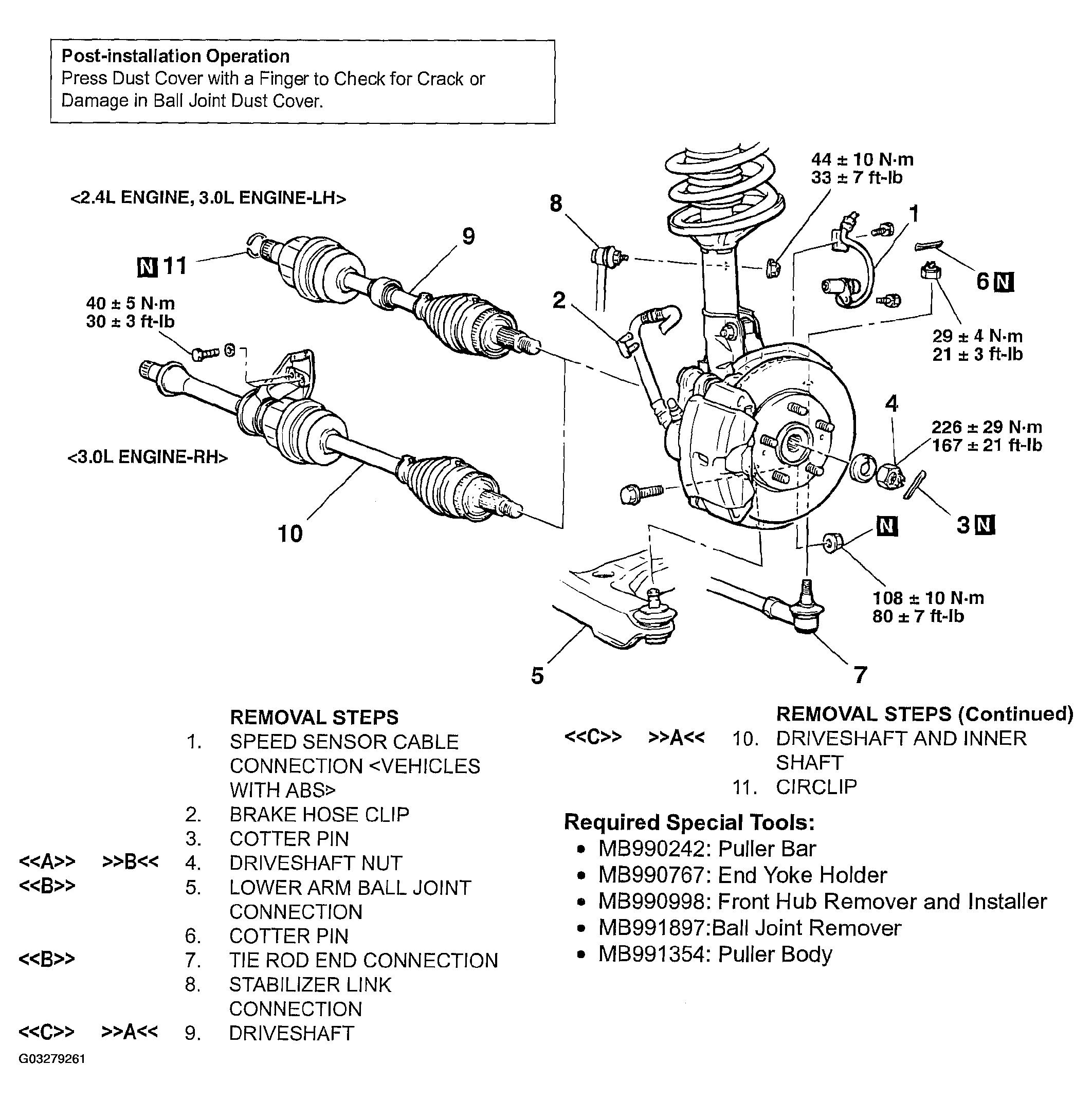

Fig 1: Identifying Drive Shaft Assembly Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990242: Puller Bar
MB990767: End Yoke Holder
MB990998: Front Hub Remover and Installer
MB991897: Ball Joint Remover
MB991354: Puller Body
