Disassembly And Assembly: Notes

CAUTION: Never disassemble the BJ assembly except when replacing the BJ boot.

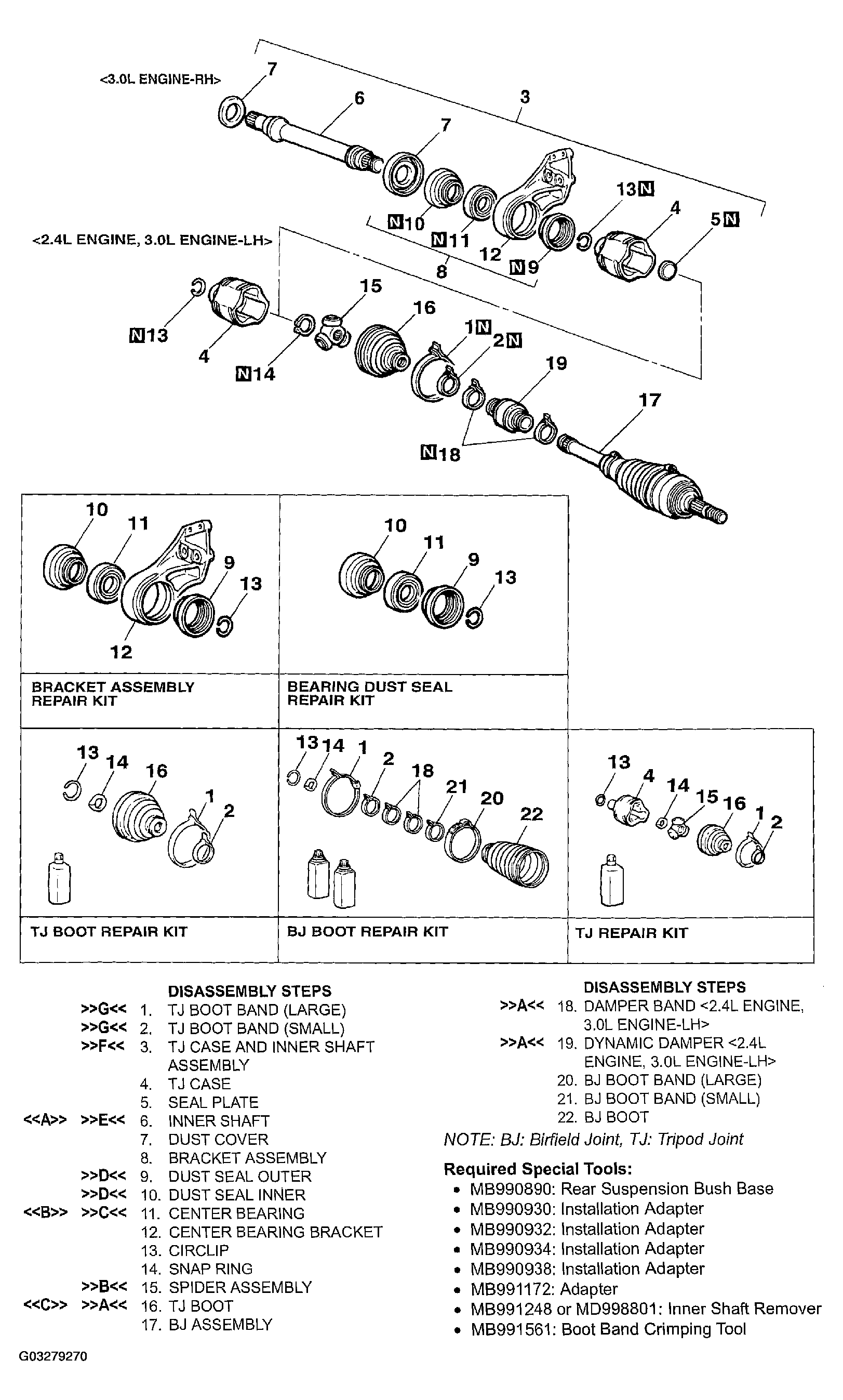

Fig 1: Exploded View Of Driveshaft

G03279270

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: BJ: Birfield Joint, TJ: Tripod Joint

Required Special Tools:

MB990890: Rear Suspension Bush Base
MB990930: Installation Adapter
MB990932: Installation Adapter
MB990934: Installation Adapter
MB990938: Installation Adapter
MB991172: Adapter
MB991248 or MD998801: Inner Shaft Remover
MB991561: Boot Band Crimping Tool
