Removal And Installation

CAUTION: Mounting locations marked by *should be provisionally tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

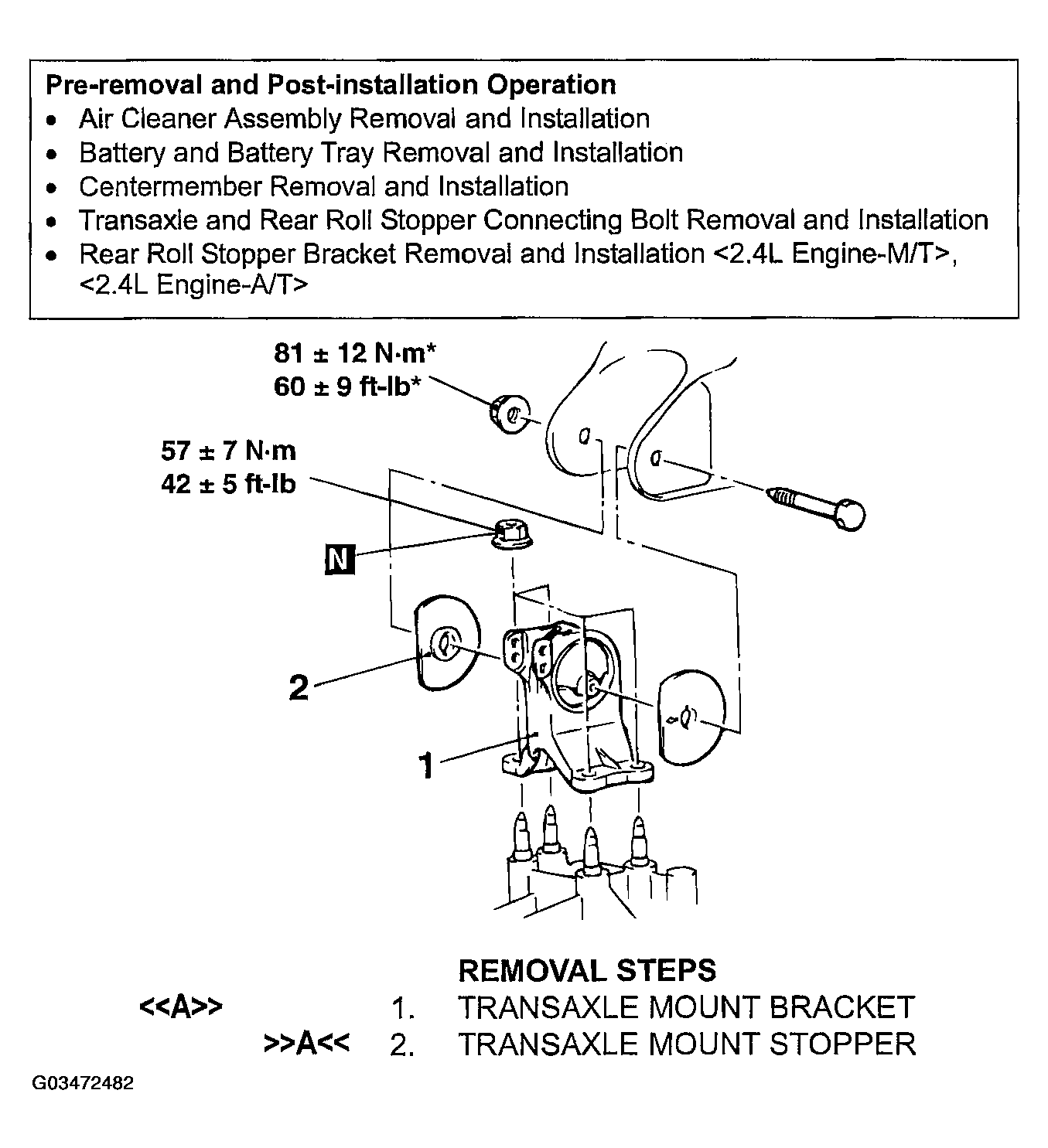

Fig 1: Removing And Installing Transaxle Mounting

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991453: Engine Hanger Assembly
MZ203827: Engine Lifter
MB991454: Engine Hanger
MB991895: Engine Lifter
MB991928: Engine Hanger
