Removal And Installation

CAUTION: Mounting locations marked by *should be provisionally tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

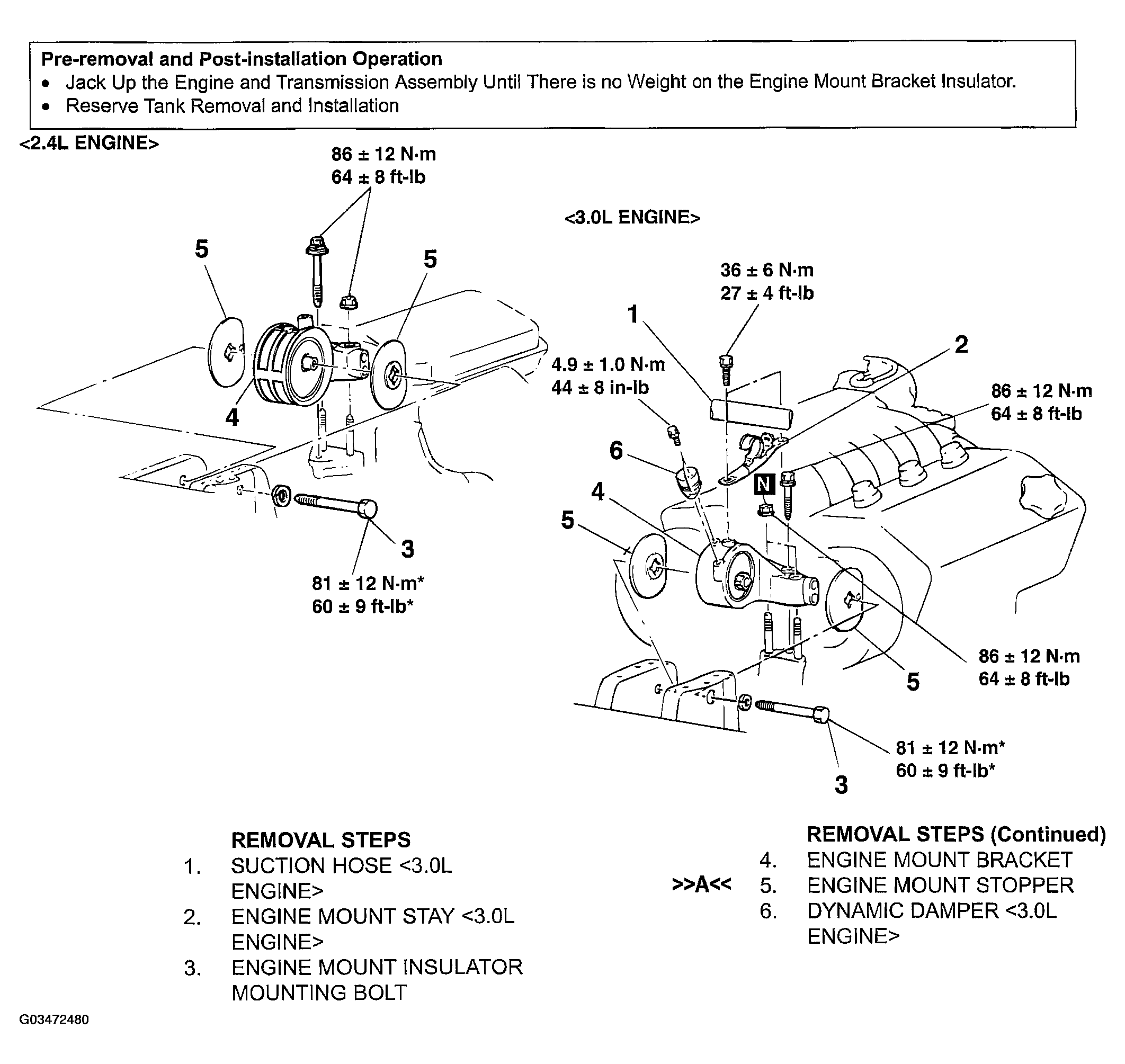

Fig 1: Removing And Installing Engine Mounting (2.4L Engine)
G03472480Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
