Center Door Lock Switch Continuity Check: Notes

Remove the power window switch. (Refer to DOOR TRIM AND WATERPROOF FILM  .)

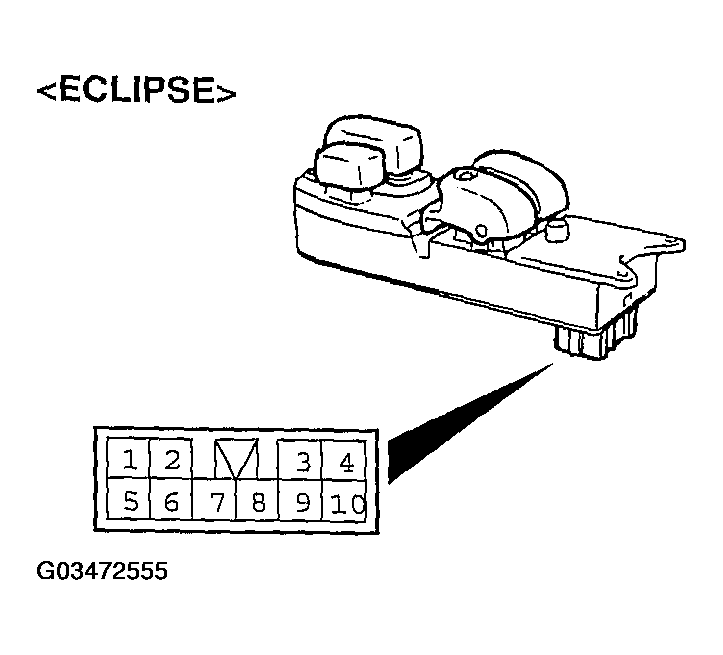

Fig 1: Identifying Center Door Lock Switch Connector Terminals - Eclipse
G03472555Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

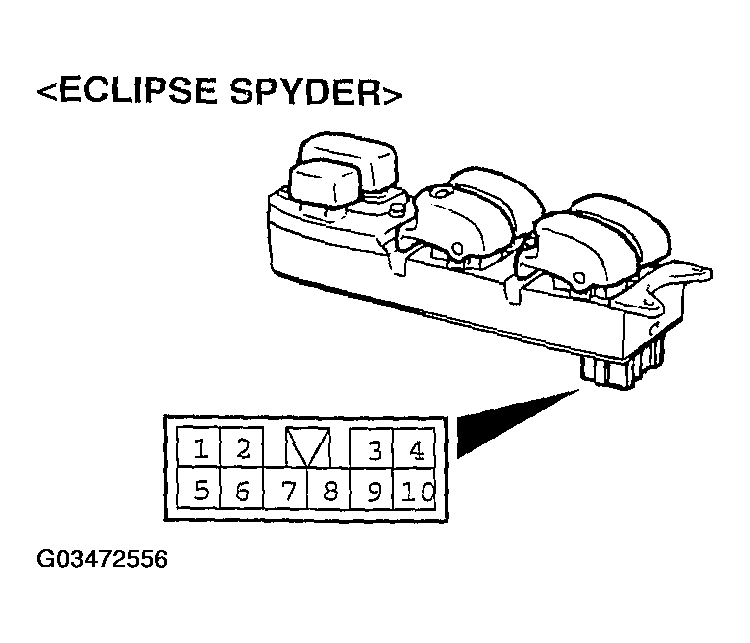

Fig 2: Identifying Center Door Lock Switch Connector Terminals - Eclipse Spyder
G03472556Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
