Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Door
>>
Door Assembly
>>
Removal And Installation
Removal And Installation
Required Special Tool
MB990900 or MB991164: Door Adjusting Wrench

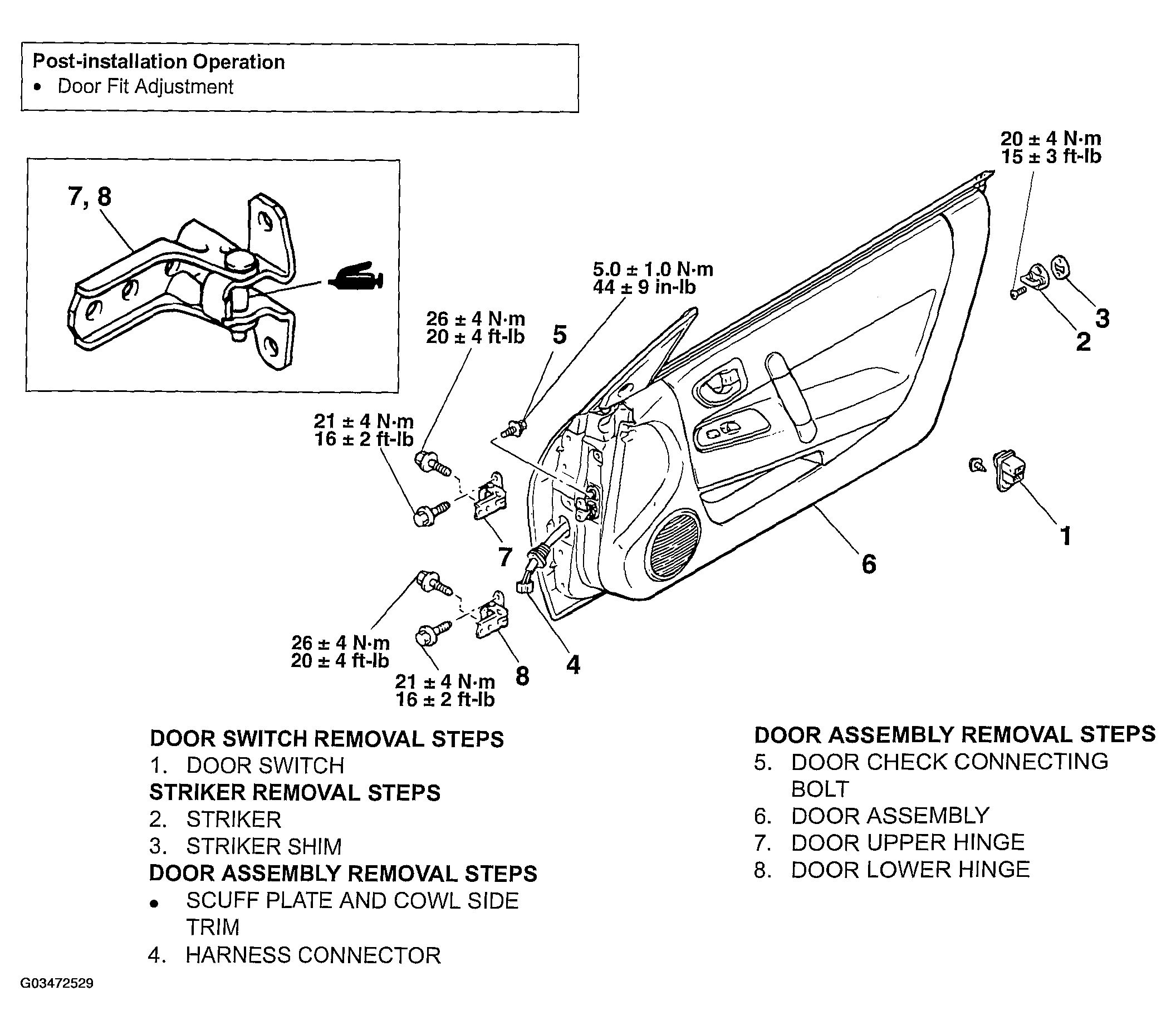

Fig 1: Removing And Installing Door Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
