Door Switch Check

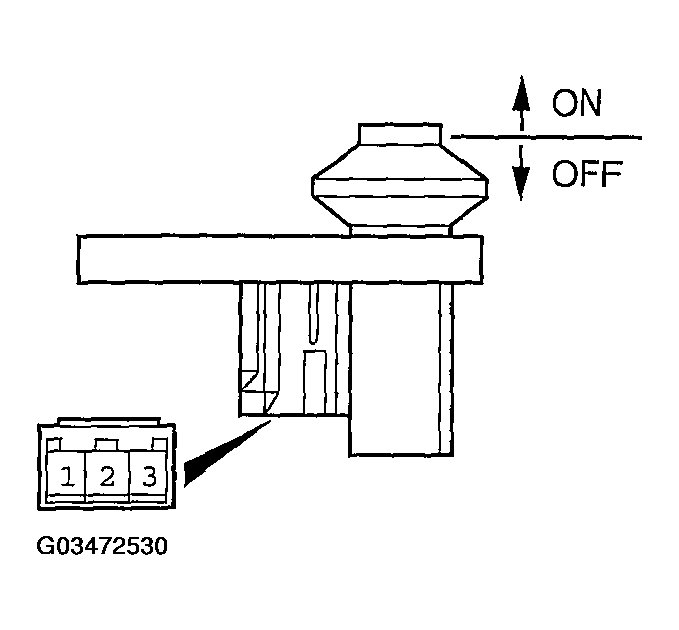

Fig 1: Checking Door Switch
G03472530Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
DOOR SWITCH CHECK

SWITCH POSITION TESTER CONNECTION SPECIFIED CONDITION
Released (ON) 1 - 2 Less than 2 ohm
Depressed (OFF) 1 - 2 Open circuit
