Home >> Mitsubishi >> 2004 >> Eclipse RS, Standard >> Repair and Diagnosis >> Body & Frame >> Seats >> Front Seat >> Removal And Installation >> Notes

Removal And Installation: Notes

WARNING: Before removing a seat equipped with a side air bag module, refer to AIR BAG SAFETY PRECAUTIONS .

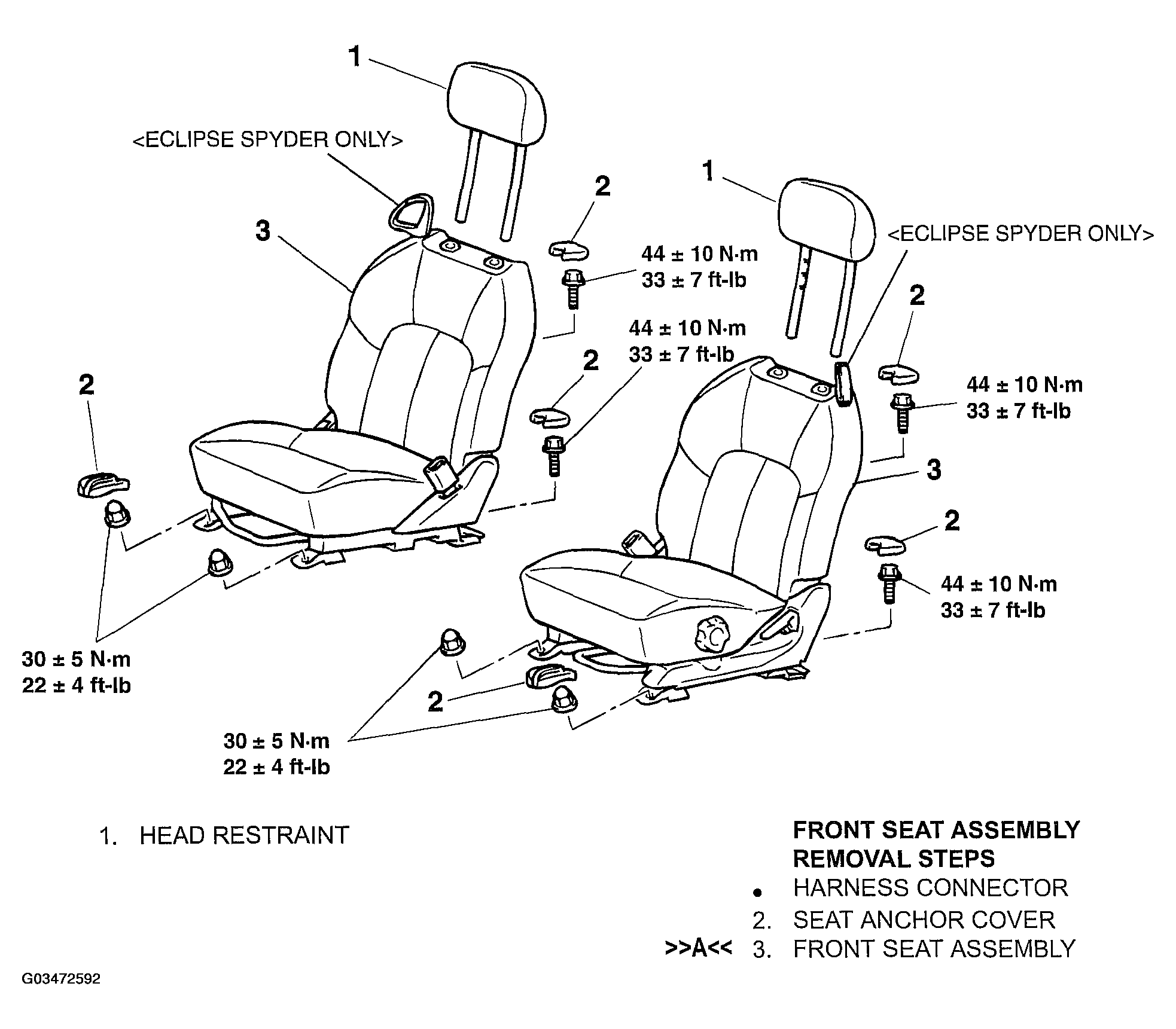

Fig 1: Removing And Installing Front Seat
G03472592Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
