< 3.0L Engine>

CAUTION: *: Indicates parts which should be partially tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

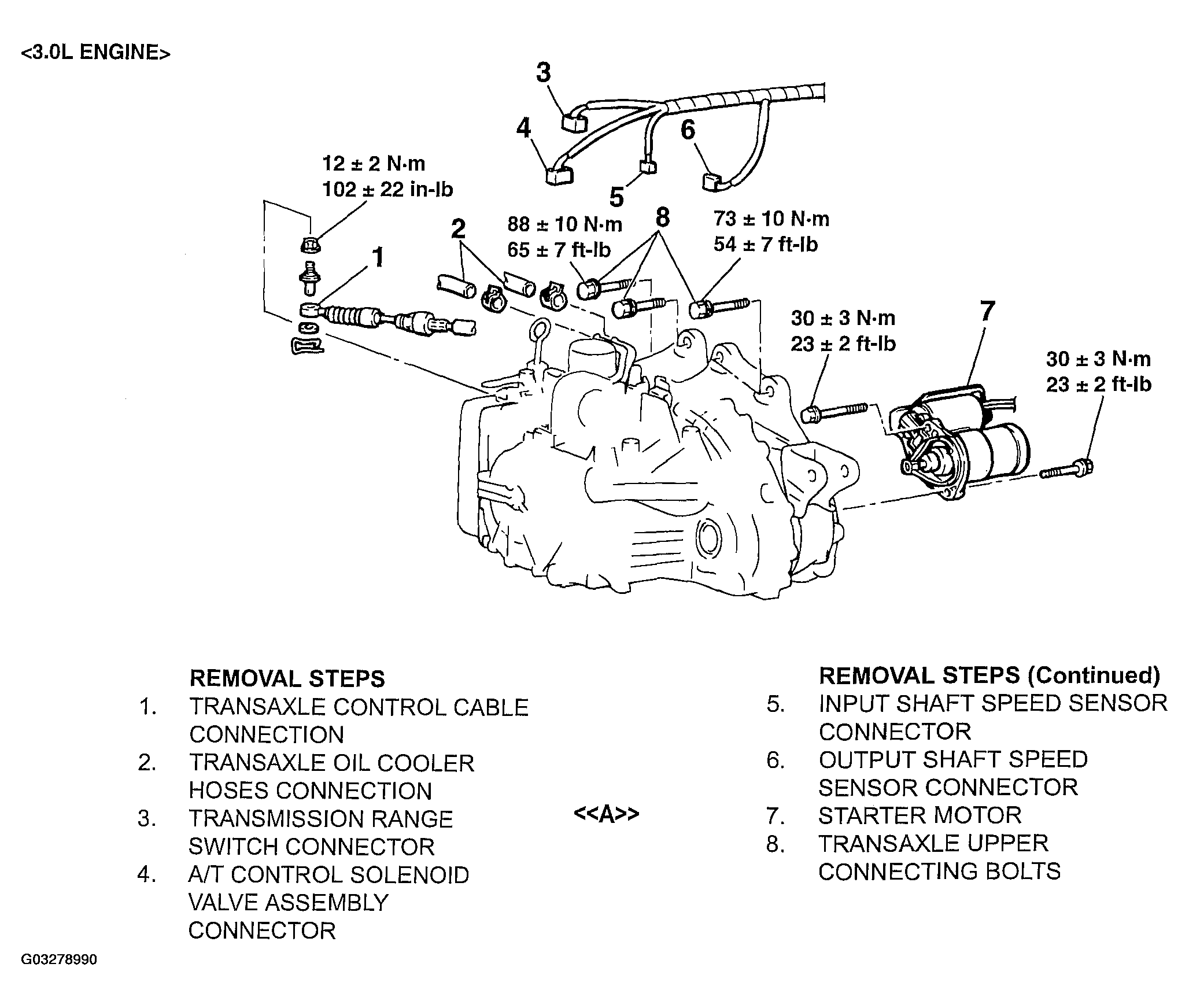

Fig 1: Removal/Installation Of Transaxle Assembly (3.0L Engine) (1 Of 2)
G03278990Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: *: Indicates parts which should be partially tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

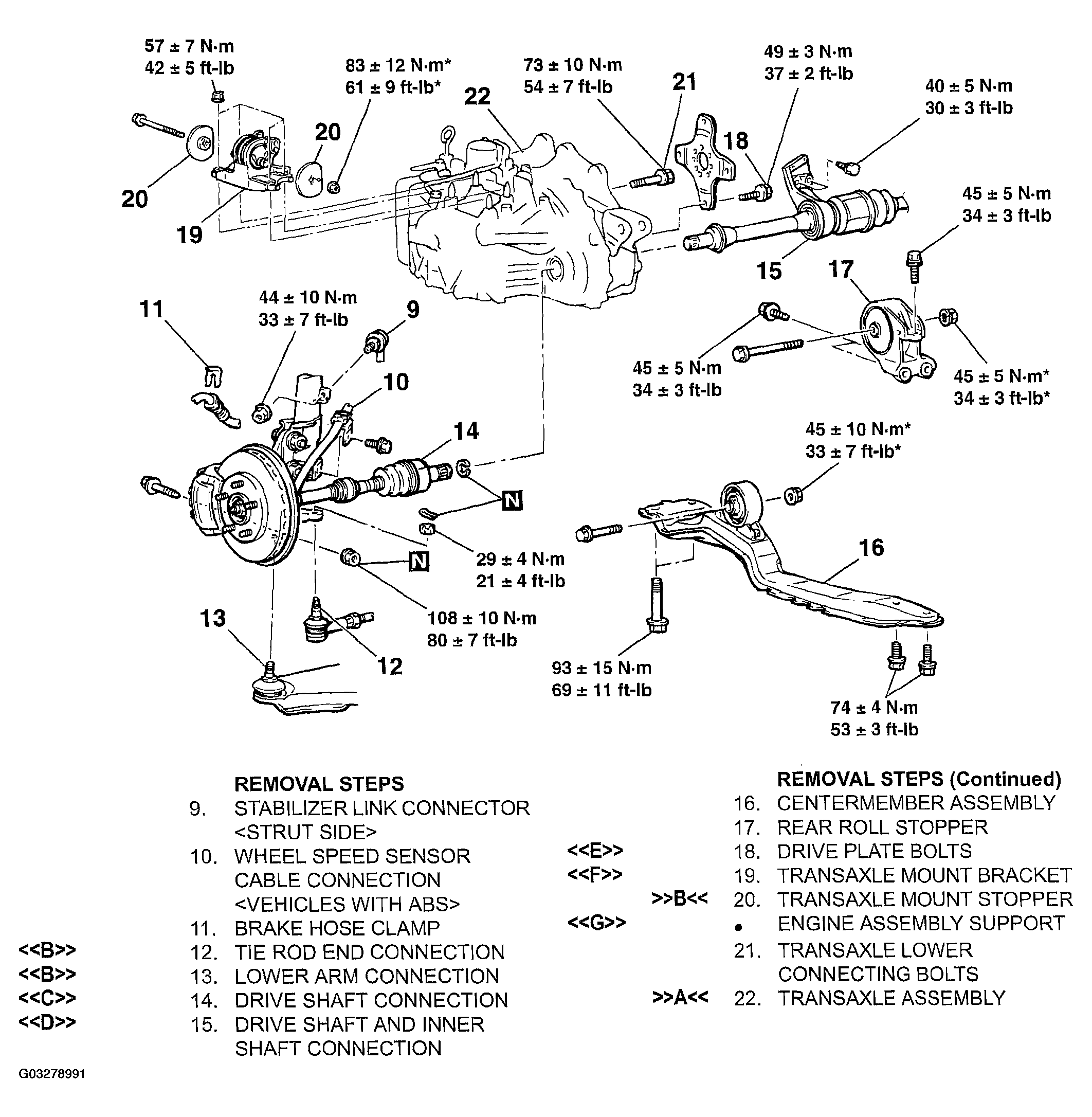

Fig 2: Removal/Installation Of Transaxle Assembly (3.0L Engine) (2 Of 2)
G03278991Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
