>>B<< Transaxle Mount Stopper Installation

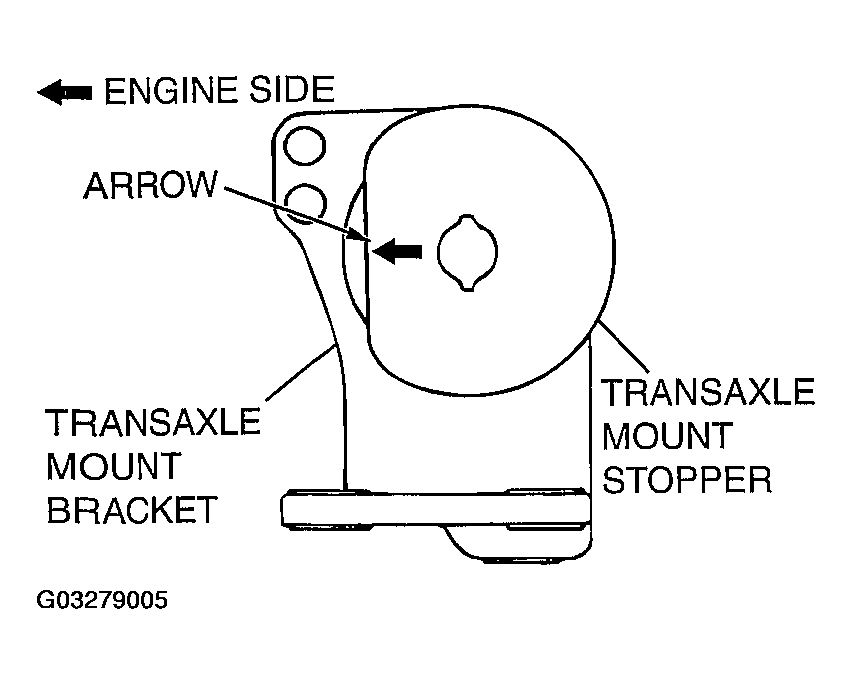

Fig 1: Installing Transaxle Mount Stopper
G03279005Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Install the transaxle mount stopper so that the arrow mark points as shown in the illustration.
