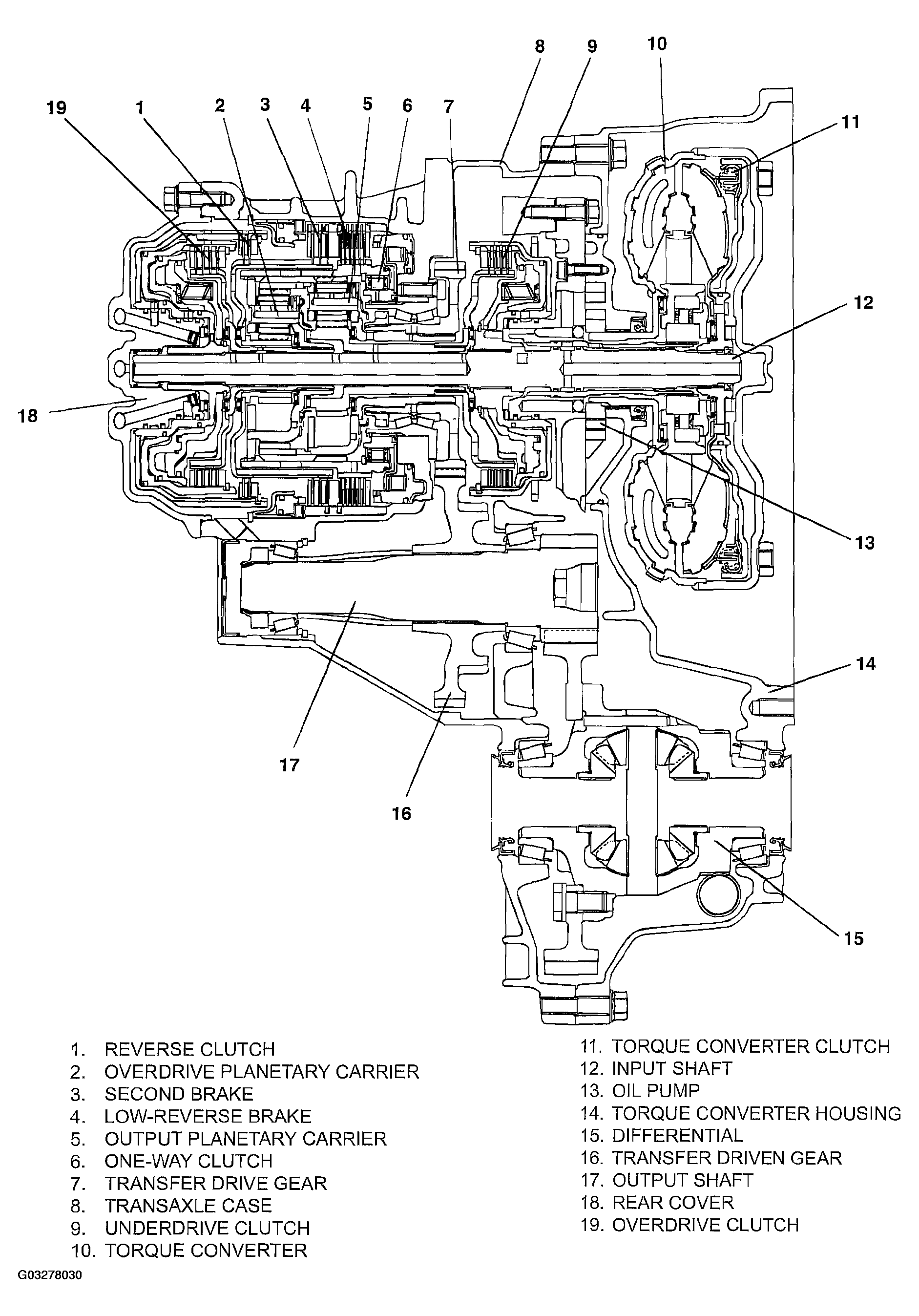

Home >> Mitsubishi >> 2004 >> Eclipse GTS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle On-Vehicle Service >> Automatic Transaxle >> General Description >> Sectional View < F4A42>
