Vacuum Circuit Diagram
>>
2.4L Engine
2.4L Engine

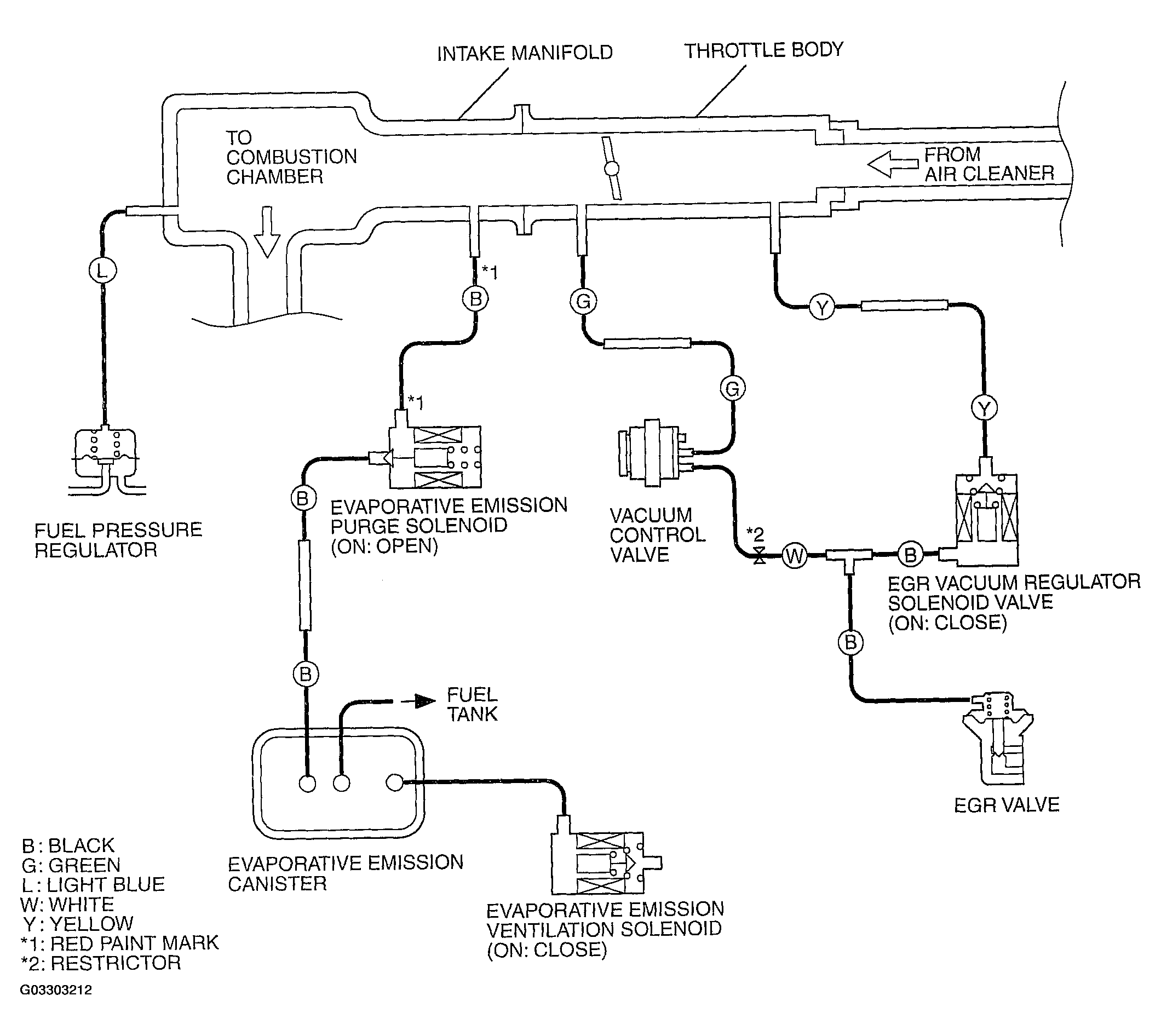

Fig 1: Identifying Vacuum Circuit Diagram (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
