Mitsubishi
>>
2004
>>
Eclipse GTS, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Multi-Center Display
>>
Removal And Installation
Removal And Installation

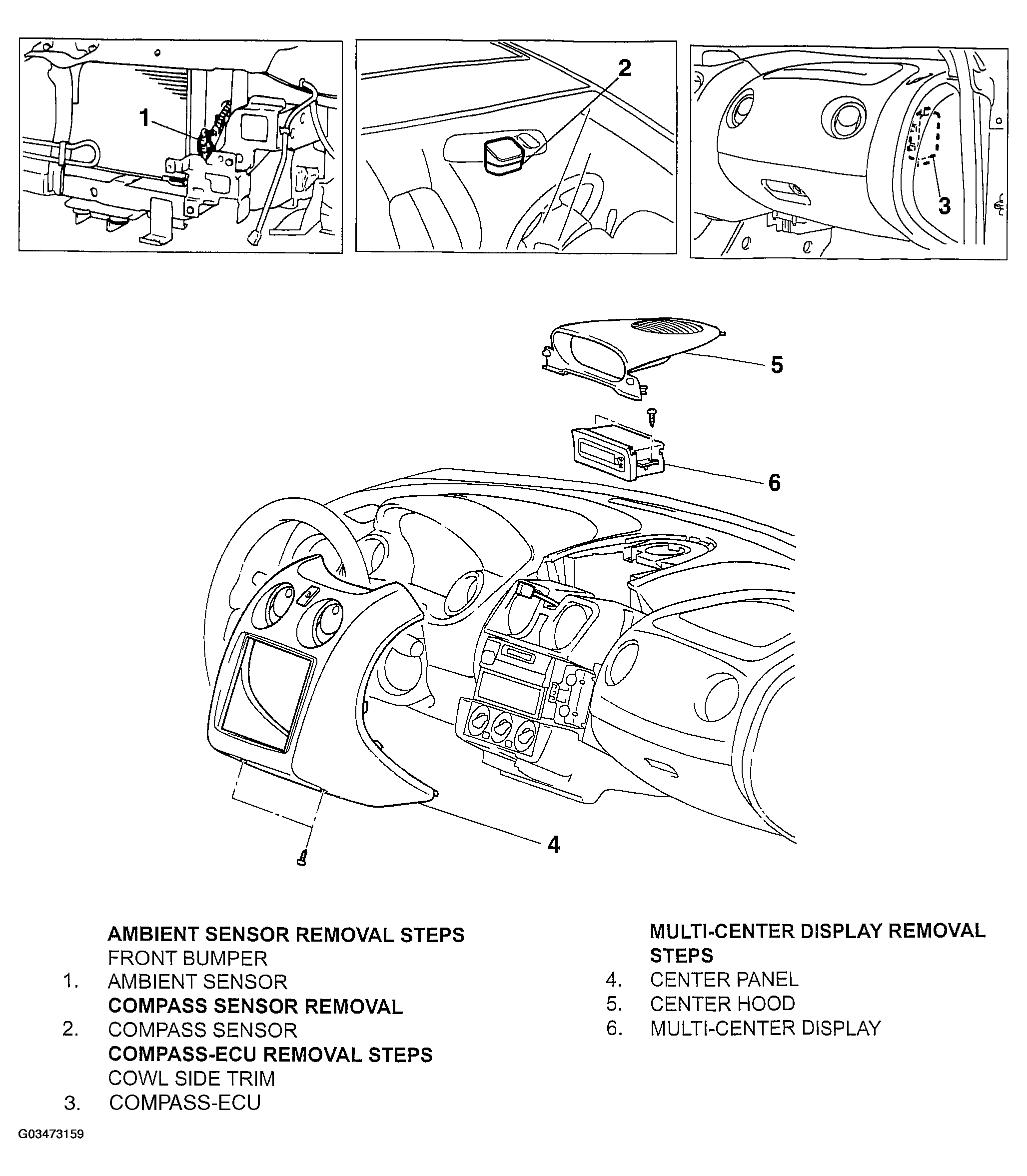

Fig 1: Removing And Installing Multi Center Display
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
