>>B<< Spring And Steel Ball Installation

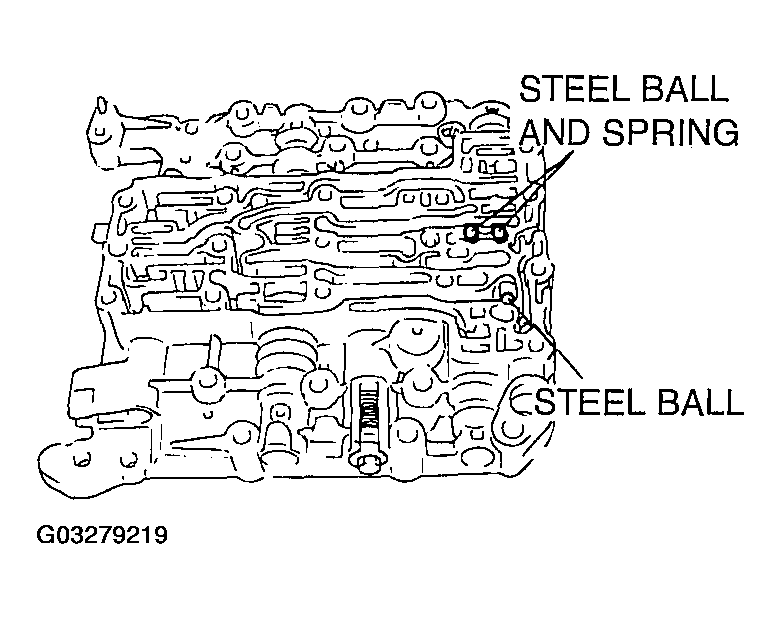

Fig 1: Installing Spring And Steel Ball
G03279219Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Install the three steel balls and two springs to the inside valve body as shown.
