Eclipse GT, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Emission Control System
>>
Exhaust Gas RECIRCULATION (EGR) System
>>
General Description (Exhaust Gas RECIRCULATION System)
>>
System Diagram
>>
2.4L Engine
2.4L Engine

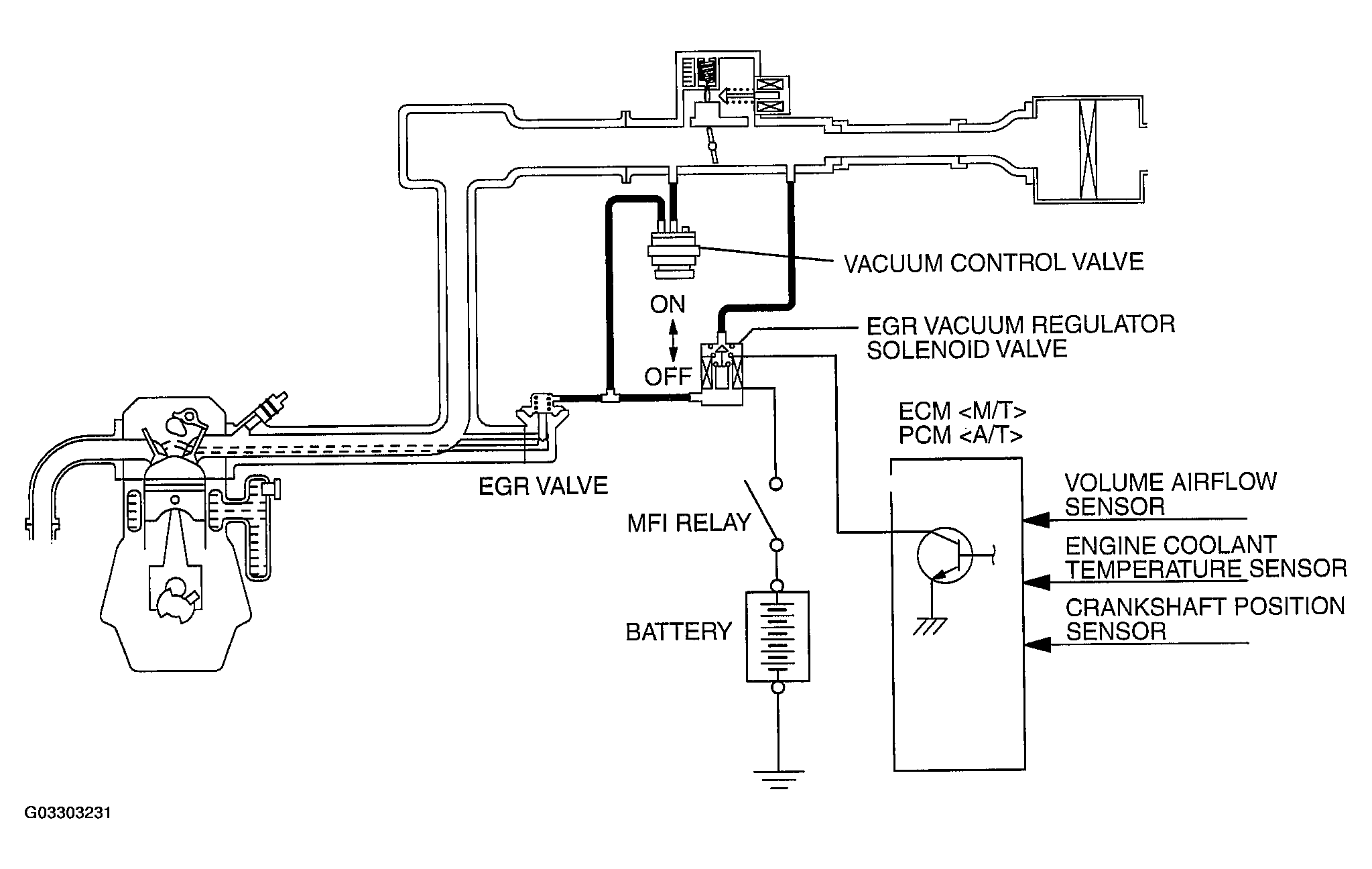

Fig 1: Exhaust Gas Recirculation (EGR) System Diagram (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
