Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Braking System (Abs)
>>
Wheel Speed Sensor
>>
Removal And Installation
Removal And Installation

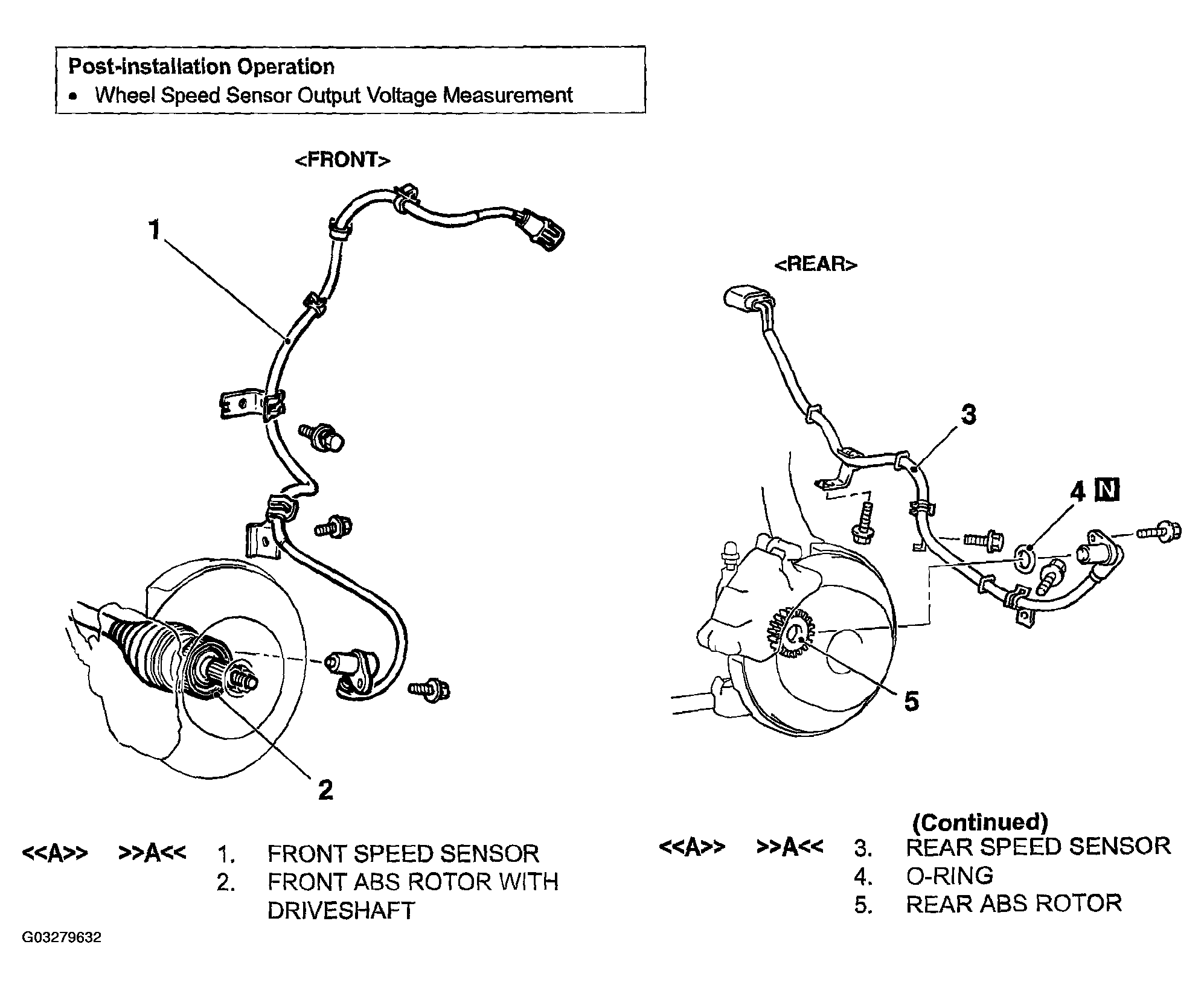

Fig 1: Removing & Installing Wheel Speed Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
